- Page 1 Lucent Technologies Installation Guide Cajun P115G TACKABLE ORKGROUP WITCH Cat No. 130008 Rev.0 September 1998...
-
Page 2: Safety Precautions
Die Wartung darf NUR von qualifiziertem, technischem Personal durchgeführt werden. 2. NIEMALS ein beschädigtes Gerät einschalten, oder versuchen es zu bedienen. 3. Vergewissern Sie sich, dass die Chassis Ventilationsöffnungen des Gerätes NICHT BLOCKIERT sind. Cajun P115G Stackable Switch Installation Guide... - Page 3 Stromzufuhr wo sich auch der Sicherungskasten befindet. 5. Bedienen Sie das Gerät NICHT an einer Stelle an der die Umgebungstemperatur 40ºC übersteigt. 6. Ziehen Sie das Netzkabel raus, BEVOR Sie versuchen die Hauptsicherung zu kontrollieren oder auszutauschen. Cajun P115G Stackable Switch Installation Guide...

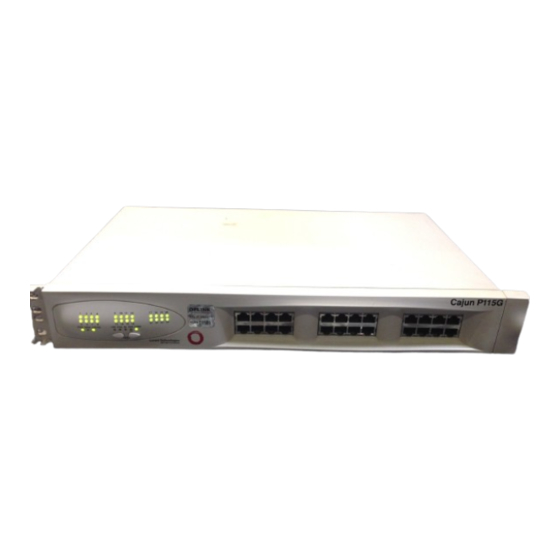

- Page 4 P110 hub stack up and running. Description The Cajun P115G Stackable Switch is part of the Cajun P110 Switching System family of workgroup switches. The Cajun family is composed of high-performance workgroup switches, which may be used singly or stacked in any combination to make up a multi- protocol, non-blocking, scalable switch.
- Page 5 Chapter 1 Description Cajun P115G Stackable Switch Installation Guide...
-
Page 6: Installation
Cajun P115G. Figure 1 The Cajun P115G Stackable Switch Rear Panel Showing the DIP Switches in their Default Positions The DIP switches control the three groups of eight 10/100 Mbps ports and the uplink port. - Page 7 FX: Selects whether the uplink is through a fiber-optic line or a copper line. Note: Only the Ethernet uplink port can operate in full duplex mode. The 24 individual ports can only be used in half duplex mode. Table 1 DIP Switches on the Cajun P115G Stackable Switch Switch Function USE SW...
- Page 8 Port speed can be changed using the DIP switches Stacked Operation To make the Cajun P115G work as part of a stack (or to give SNMP management capabilities to a single Cajun P115G), a Cajun P110 NMA with software version 8.4 (or higher) is required.
- Page 9 The Cajun P110 Exoplane link (which consists of two cables for connecting a Cajun unit to a stack) is not included with the Cajun P115G. You need to order the Exoplane link separately (part number 4705-019). The Cajun P110 NMA is provided with its own Exoplane link and terminators.
- Page 10 See the Cajun P110 NMA Installation Guide for details. Note: When a Cajun P110 switch is added to, removed from or swapped in a stack, all Ethernet port settings (Administration Status, Port Mode, port speed and VLANs) will return to their default values.
- Page 11 Rack Mounting Cajun switches slot into a standard 19 inch rack. Remove the rubber legs from the base of any switch that is to be rack mounted. Place the switches in the rack, as follows: 1. Snap open the ends of the front panel to reveal the fixing holes.
- Page 12 Diagnostics Tables 2 and 3 explain the meaning of the Cajun P115G Stackable Switch diagnostic LED indicators. Figure 4 The Cajun P115G Stackable Switch Front Panel LEDs and Buttons Table 2 Meaning of the Cajun P115G Stackable Switch Front Panel Buttons...
- Page 13 Chapter 2 Installation Table 3 Meaning of the Cajun P115G Stackable Switch front panel LEDs LED Indicator Function Power Agent Port 1 to 24 Each LED can display one of the following functions: Link, Collision, LEDs Receive or 100 M states, depending on what has been selected using the Select buttons.
- Page 14 Management Application Notes 1. When a segment port is disabled, the whole segment is disabled. 2. A disabled port reports its link as okay, regardless of its status. Cajun P115G Stackable Switch Installation Guide Chapter 2 Installation...
- Page 15 211 Mt. Airy Rd., Basking Ridge, NJ 07920. Cajun and Cajun View are trademarks, and in some jurisdictions may be registered trademarks of Lucent Technologies or its affiliated companies. Other trademarks appearing in this document are the property of their respective owners.
