Figure 2-5.

The IP2000 control module

The Stinger CR ATM DSLAM unit operates in stand-alone mode with an IP2000
control module (STGRRT-CM-IP2000-F) installed in the COP slot. The IP2000
provides a TAOS management interface that can be accessed directly from a serial
console, or remotely from a network connection. All configuration parameters for
the unit and the lines to which it is connected can be accessed and set through this
interface. Configuration settings for the unit are retained in the control module and
can be saved onto PCMCIA cards that are plugged into the IP2000.
The IP2000 also supports a fiber-based Gigabit Ethernet (GigE) interface, with a
modular Small Form Factor Pluggable (SFP) transceiver. This interface can be
configured to carry network traffic for end-users that are connected to the Stinger CR
ATM DSLAM unit. Complete information about configuring the IP interfaces of the
IP2000 module is contained in the IP Control Modules Configuration Guide.
The Stinger® Compact Remote ATM DSLAM Getting Started Guide

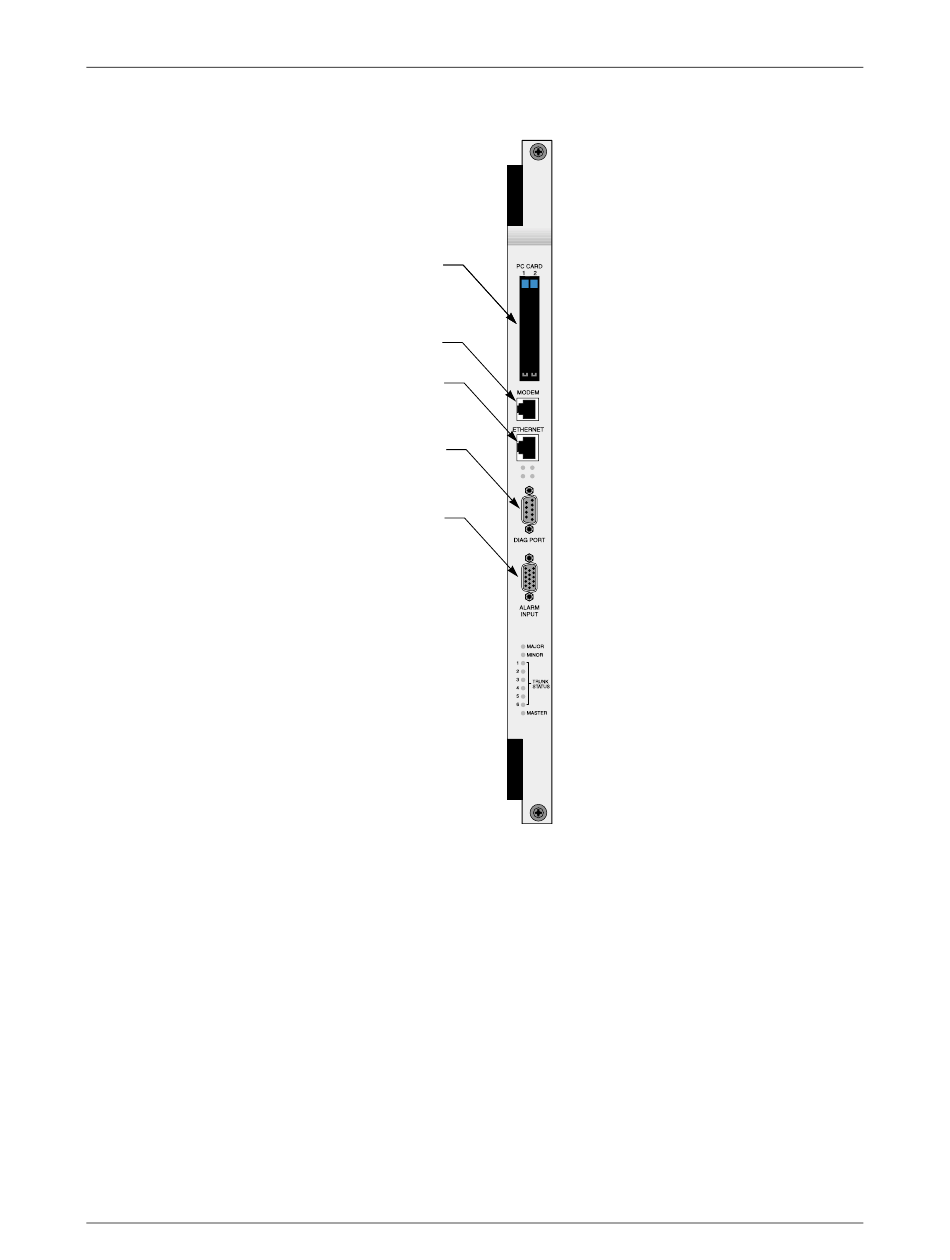

Stinger Compact Remote ATM DSLAM control module interfaces
PCMCIA slots
Modem port
(STGR-CM-B only)
10/100 Ethernet port
Diagnostic port
Alarm input
port
Preparing to Install the Unit
Checking modules and chassis
10
FDX
100
ACT
2-9
