Use the Modem profile to set the autoanswer configuration of this modem. Following
is a sample of this profile with its default setting:
[in MODEM/{ shelf-1 first-control-module 3 }]
physical-address* = { shelf-1 first-control-module 3 }
auto-answer = on
The auto-answer parameter has three valid settings:
Setting
on
off
primary-only

Modem country codes

You can configure the internal modem in a STGR-CM-B control module to support
the national regulations of telephone companies in specific countries. If the modem
supports the country that you have specified, the system programs the modem with
the settings necessary for that country. The country-code parameter in the modem
profile, shown here with its default value, is used for this setting.
[in MODEM/{ shelf-1 first-control-module 3 }]
physical-address* = { shelf-1 first-control-module 3 }
country-code = unitedstates
The Stinger® Compact Remote ATM DSLAM Getting Started Guide

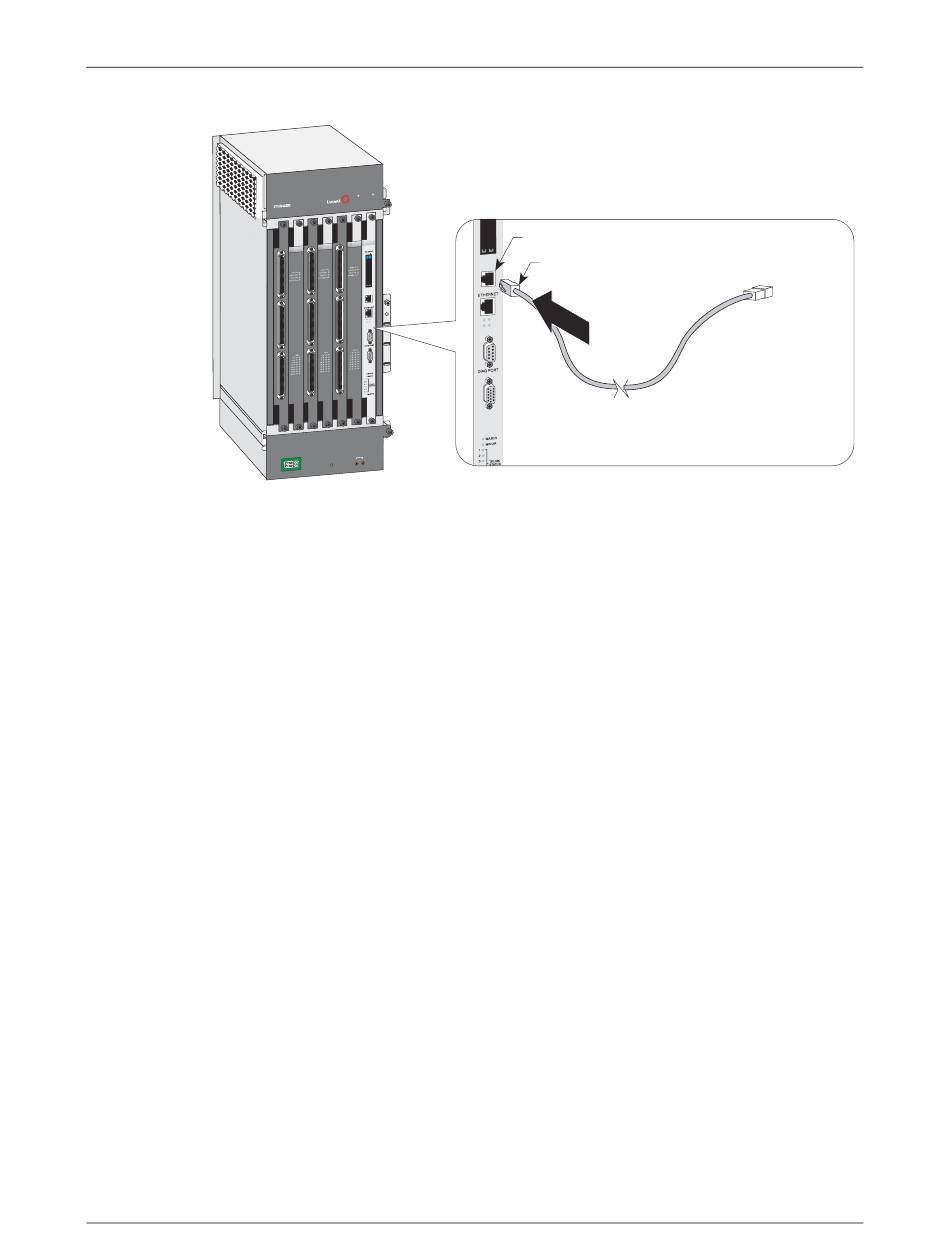

Connection for internal modem
