Preparing to Install the Unit
Checking modules and chassis
Note Units manufactured and equipped for stand-alone operation with an IP2000
module have a modified enclosure door. This door is manufactured with a 0.5 inch
(1.3cm) bulge in the door at the location of the fiber connector on the IP2000. This
bulge allows space for the curvilinear guide fiber cable to physically route the fiber
light guides downward (see Figure 2-3 on page 2-6 and Figure 3-24 on page 3-33).

IP2000 interfaces

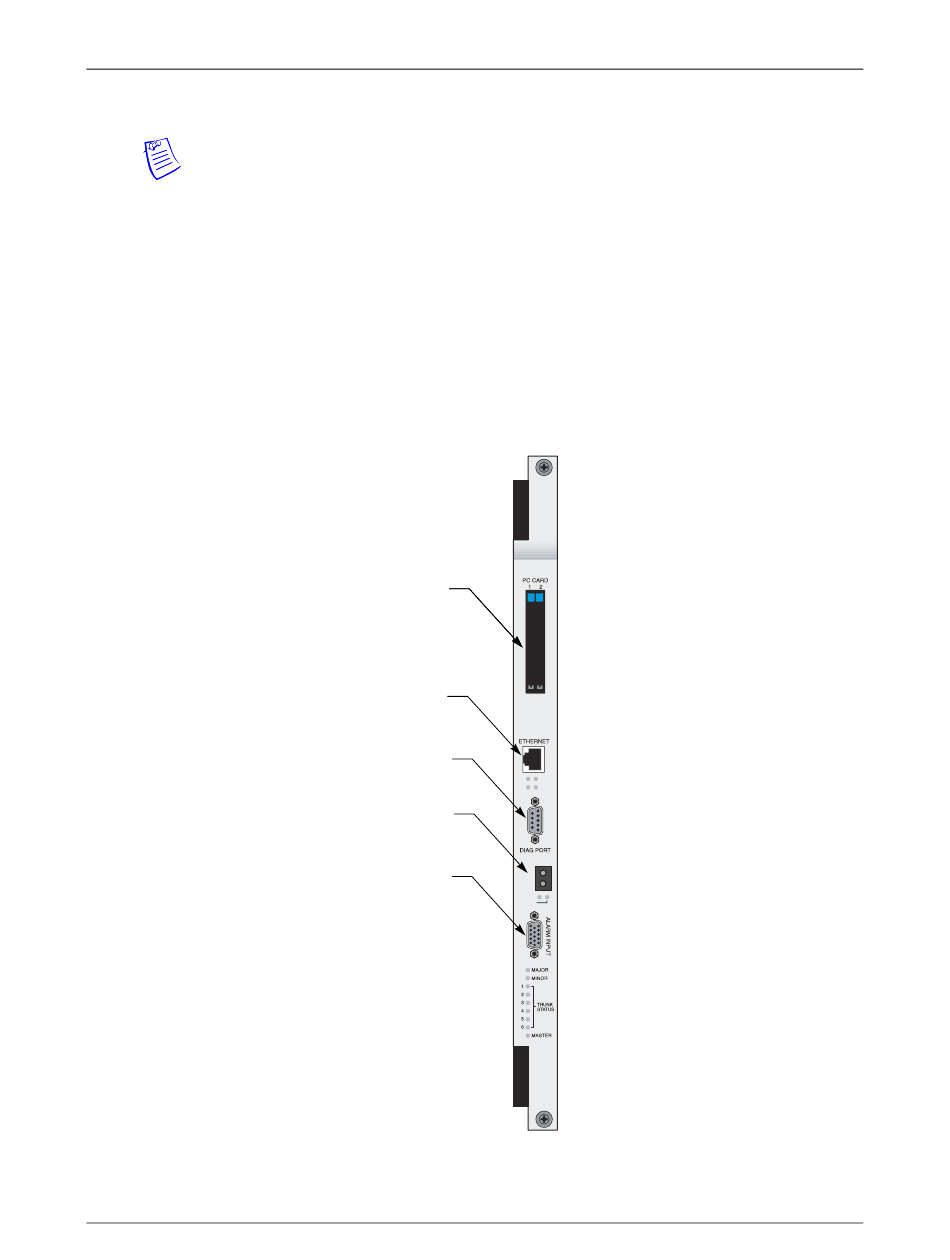

Figure 2-6 shows the location of the Gigabit Ethernet port, 10/100 Ethernet port,
serial diagnostic port, alarm input port, and Personal Computer Memory Card
International Association (PCMCIA) slots on a control module for the Stinger
Compact Remote ATM DSLAM unit. Details about interfaces and hardware
specifications for the IP2000 module are contained in the IP Control Modules
Configuration Guide.
Figure 2-6.
2-10
The IP2000 module
PCMCIA slots
10/100 Ethernet port
Diagnostic port
Gigabit Ethernet port
Alarm input port
The Stinger® Compact Remote ATM DSLAM Getting Started Guide
10
LINK
100
ACT
Gig. E
ACT
LINK
