FC 300 Design Guide

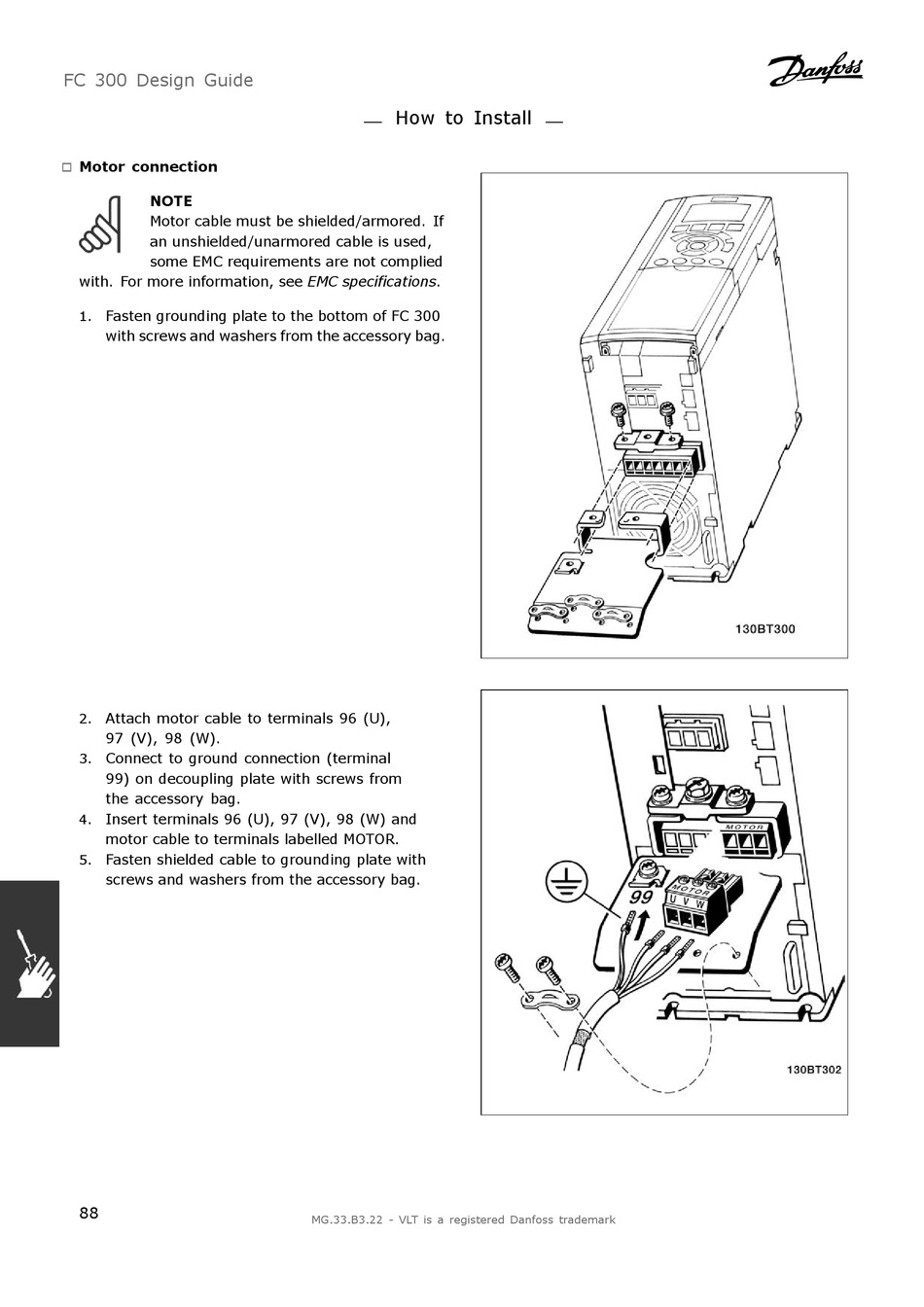

Motor connection

"
NOTE
Motor cable must be shielded/armored. If
an unshielded/unarmored cable is used,
some EMC requirements are not complied
with. For more information, see EMC specifications.
Fasten grounding plate to the bottom of FC 300
1.
with screws and washers from the accessory bag.
Attach motor cable to terminals 96 (U),
2.
97 (V), 98 (W).
Connect to ground connection (terminal
3.
99) on decoupling plate with screws from
the accessory bag.
4. Insert terminals 96 (U), 97 (V), 98 (W) and
motor cable to terminals labelled MOTOR.
Fasten shielded cable to grounding plate with
5.
screws and washers from the accessory bag.
88
How to Install
MG.33.B3.22 - VLT is a registered Danfoss trademark
