FC 300 Design Guide

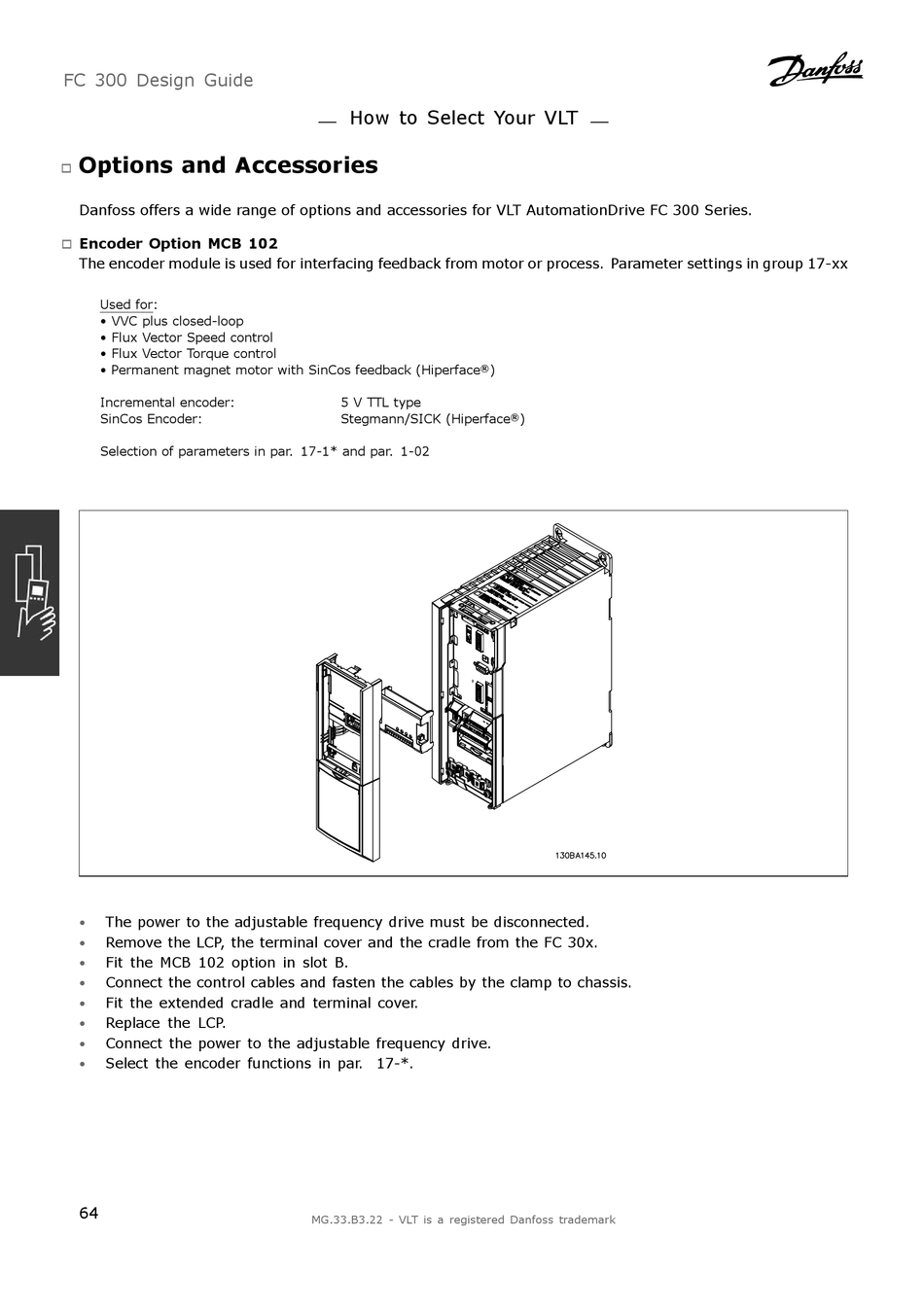

Options and Accessories

"
Danfoss offers a wide range of options and accessories for VLT AutomationDrive FC 300 Series.

Encoder Option MCB 102

"
The encoder module is used for interfacing feedback from motor or process. Parameter settings in group 17-xx
Used for:
• VVC plus closed-loop
• Flux Vector Speed control
• Flux Vector Torque control
• Permanent magnet motor with SinCos feedback (Hiperface
Incremental encoder:
SinCos Encoder:
Selection of parameters in par. 17-1* and par. 1-02
The power to the adjustable frequency drive must be disconnected.
•
Remove the LCP, the terminal cover and the cradle from the FC 30x.
•
Fit the MCB 102 option in slot B.
•
• Connect the control cables and fasten the cables by the clamp to chassis.
• Fit the extended cradle and terminal cover.
Replace the LCP.
•
Connect the power to the adjustable frequency drive.
•
Select the encoder functions in par. 17-*.
•
64
How to Select Your VLT
®
5 V TTL type
Stegmann/SICK (Hiperface
MG.33.B3.22 - VLT is a registered Danfoss trademark
)
® )
