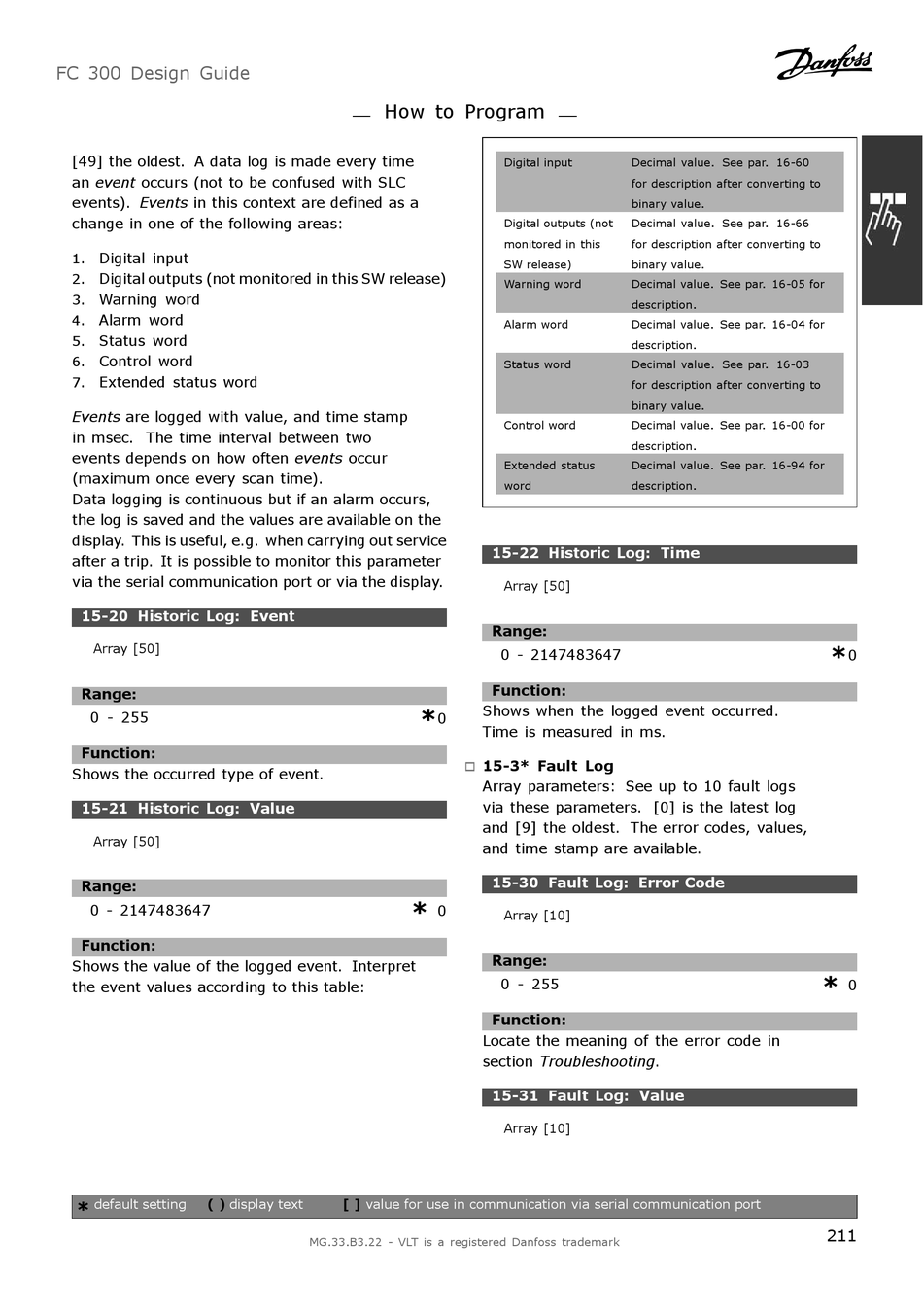

FC 300 Design Guide
[49] the oldest. A data log is made every time
an event occurs (not to be confused with SLC
events). Events in this context are defined as a
change in one of the following areas:
Digital input
1.
Digital outputs (not monitored in this SW release)
2.
Warning word
3.
Alarm word
4.
Status word
5.
6. Control word
Extended status word
7.
Events are logged with value, and time stamp
in msec. The time interval between two
events depends on how often events occur
(maximum once every scan time).
Data logging is continuous but if an alarm occurs,
the log is saved and the values are available on the
display. This is useful, e.g. when carrying out service
after a trip. It is possible to monitor this parameter
via the serial communication port or via the display.
15-20 Historic Log: Event
Array [50]
Range:
0 - 255
Function:
Shows the occurred type of event.
15-21 Historic Log: Value
Array [50]
Range:
0 - 2147483647
Function:
Shows the value of the logged event. Interpret
the event values according to this table:
* default setting ( ) display text
How to Program
Shows when the logged event occurred.
*
0
Time is measured in ms.
15-3* Fault Log
"
Array parameters: See up to 10 fault logs
via these parameters. [0] is the latest log
and [9] the oldest. The error codes, values,
and time stamp are available.
*
0
Locate the meaning of the error code in
section Troubleshooting.
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
Digital input Decimal value. See par. 16-60
for description after converting to
binary value.
Digital outputs (not Decimal value. See par. 16-66
monitored in this for description after converting to
SW release) binary value.
Warning word Decimal value. See par. 16-05 for
description.
Alarm word Decimal value. See par. 16-04 for
description.
Status word Decimal value. See par. 16-03
for description after converting to
binary value.
Control word Decimal value. See par. 16-00 for
description.
Extended status Decimal value. See par. 16-94 for
word description.
15-22 Historic Log: Time
Array [50]
Range:
0 - 2147483647
Function:
15-30 Fault Log: Error Code
Array [10]
Range:
0 - 255
Function:
15-31 Fault Log: Value
Array [10]
*
0
*
0
