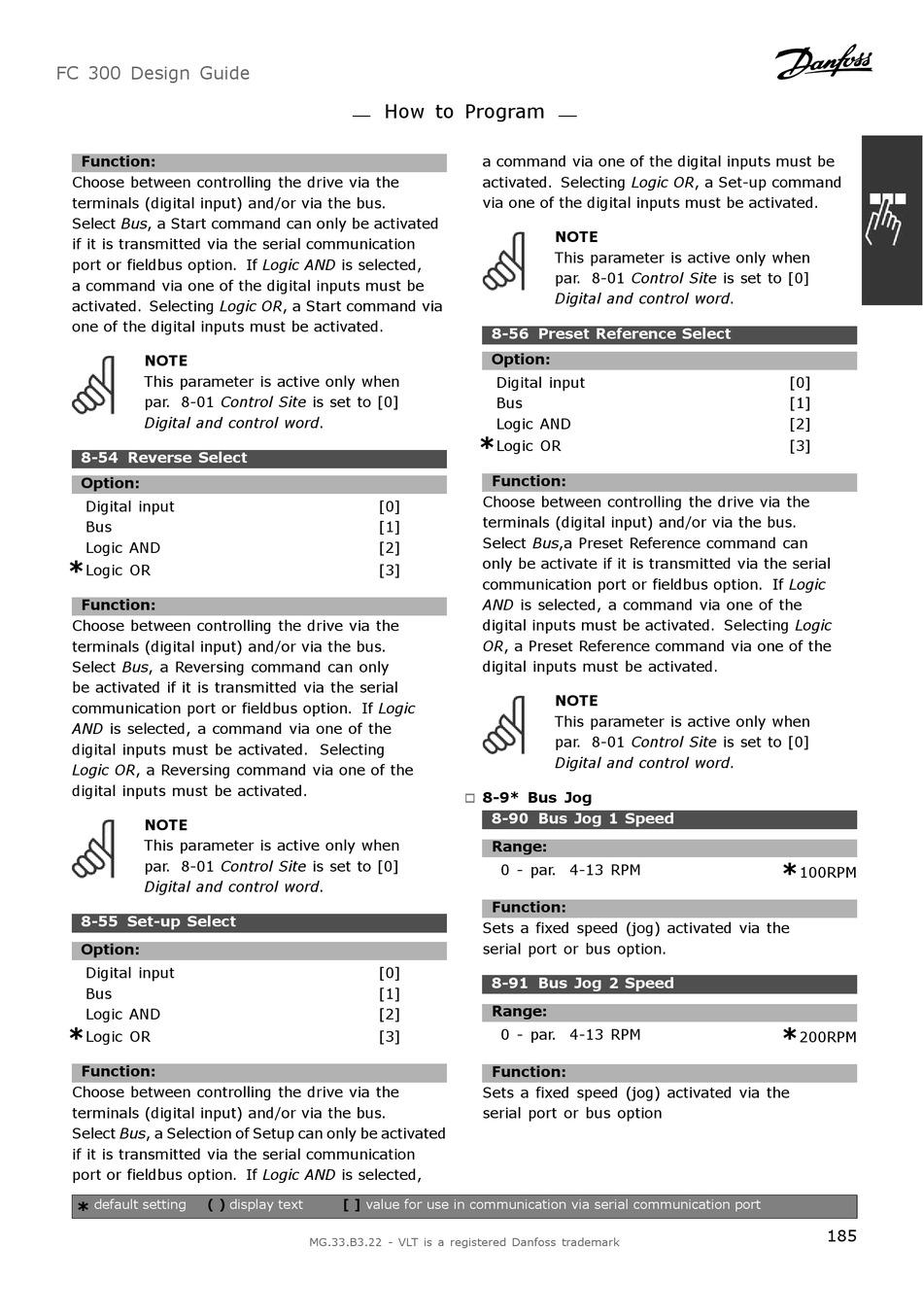

Danfoss VLT AutomationDrive FC 300 Design Manual page 185

FC 300 Design Guide
Function:
Choose between controlling the drive via the
terminals (digital input) and/or via the bus.
Select Bus, a Start command can only be activated
if it is transmitted via the serial communication
port or fieldbus option. If Logic AND is selected,
a command via one of the digital inputs must be
activated. Selecting Logic OR, a Start command via
one of the digital inputs must be activated.
NOTE
This parameter is active only when
par. 8-01 Control Site is set to [0]
Digital and control word.
8-54 Reverse Select
Option:
Digital input
Bus
Logic AND
*
Logic OR
Function:
Choose between controlling the drive via the
terminals (digital input) and/or via the bus.
Select Bus, a Reversing command can only
be activated if it is transmitted via the serial
communication port or fieldbus option. If Logic
AND is selected, a command via one of the
digital inputs must be activated. Selecting
Logic OR, a Reversing command via one of the
digital inputs must be activated.
NOTE
This parameter is active only when
par. 8-01 Control Site is set to [0]
Digital and control word.
8-55 Set-up Select
Option:
Digital input
Bus
Logic AND
*
Logic OR
Function:
Choose between controlling the drive via the
terminals (digital input) and/or via the bus.
Select Bus, a Selection of Setup can only be activated
if it is transmitted via the serial communication
port or fieldbus option. If Logic AND is selected,
* default setting ( ) display text
How to Program
a command via one of the digital inputs must be
activated. Selecting Logic OR, a Set-up command
via one of the digital inputs must be activated.
*
Choose between controlling the drive via the
[0]
terminals (digital input) and/or via the bus.
[1]
Select Bus,a Preset Reference command can
[2]
only be activate if it is transmitted via the serial
[3]
communication port or fieldbus option. If Logic
AND is selected, a command via one of the
digital inputs must be activated. Selecting Logic
OR, a Preset Reference command via one of the
digital inputs must be activated.
8-9* Bus Jog
"
Sets a fixed speed (jog) activated via the
serial port or bus option.
[0]
[1]
[2]
[3]
Sets a fixed speed (jog) activated via the
serial port or bus option
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
NOTE
This parameter is active only when
par. 8-01 Control Site is set to [0]
Digital and control word.
8-56 Preset Reference Select
Option:
Digital input
Bus
Logic AND
Logic OR
Function:
NOTE
This parameter is active only when
par. 8-01 Control Site is set to [0]
Digital and control word.
8-90 Bus Jog 1 Speed
Range:
0 - par. 4-13 RPM
Function:
8-91 Bus Jog 2 Speed
Range:
0 - par. 4-13 RPM
Function:
[0]
[1]
[2]
[3]
*
100RPM
*
200RPM
