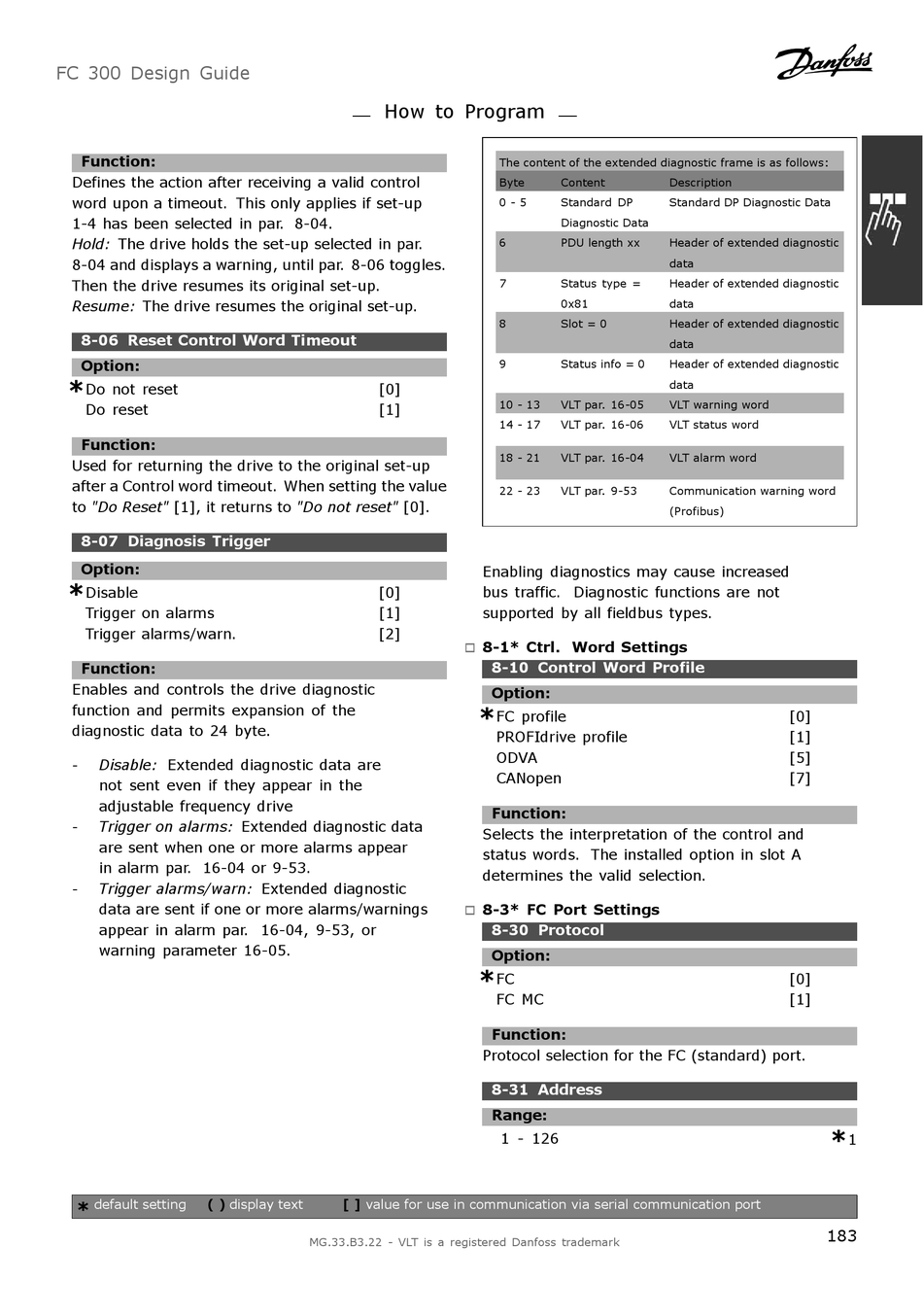

Danfoss VLT AutomationDrive FC 300 Design Manual page 183

FC 300 Design Guide
Function:
Defines the action after receiving a valid control
word upon a timeout. This only applies if set-up
1-4 has been selected in par. 8-04.
Hold: The drive holds the set-up selected in par.
8-04 and displays a warning, until par. 8-06 toggles.
Then the drive resumes its original set-up.
Resume: The drive resumes the original set-up.
8-06 Reset Control Word Timeout
Option:
*
Do not reset
Do reset
Function:
Used for returning the drive to the original set-up
after a Control word timeout. When setting the value
to "Do Reset" [1], it returns to "Do not reset" [0].
8-07 Diagnosis Trigger
Option:
*
Disable
Trigger on alarms
Trigger alarms/warn.
Function:
Enables and controls the drive diagnostic
function and permits expansion of the
diagnostic data to 24 byte.
Disable: Extended diagnostic data are
-
not sent even if they appear in the
adjustable frequency drive
Trigger on alarms: Extended diagnostic data
-
are sent when one or more alarms appear
in alarm par. 16-04 or 9-53.
Trigger alarms/warn: Extended diagnostic
-
data are sent if one or more alarms/warnings
appear in alarm par. 16-04, 9-53, or
warning parameter 16-05.
* default setting ( ) display text
How to Program
[0]
[1]
Enabling diagnostics may cause increased
[0] bus traffic. Diagnostic functions are not
[1] supported by all fieldbus types.
[2]
8-1* Ctrl. Word Settings
"
*
Selects the interpretation of the control and
status words. The installed option in slot A
determines the valid selection.
8-3* FC Port Settings
"
*
Protocol selection for the FC (standard) port.
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
The content of the extended diagnostic frame is as follows:
Byte Content
0 - 5 Standard DP
Diagnostic Data
6 PDU length xx
7 Status type =
0x81
8 Slot = 0
9 Status info = 0
10 - 13 VLT par. 16-05
14 - 17 VLT par. 16-06
18 - 21 VLT par. 16-04
22 - 23 VLT par. 9-53
8-10 Control Word Profile
Option:
FC profile
PROFIdrive profile
ODVA
CANopen
Function:
8-30 Protocol
Option:
FC
FC MC
Function:
8-31 Address
Range:
1 - 126
Description
Standard DP Diagnostic Data
Header of extended diagnostic
data
Header of extended diagnostic
data
Header of extended diagnostic
data
Header of extended diagnostic
data
VLT warning word
VLT status word
VLT alarm word
Communication warning word
(Profibus)
[0]
[1]
[5]
[7]
[0]
[1]
*
183
1
