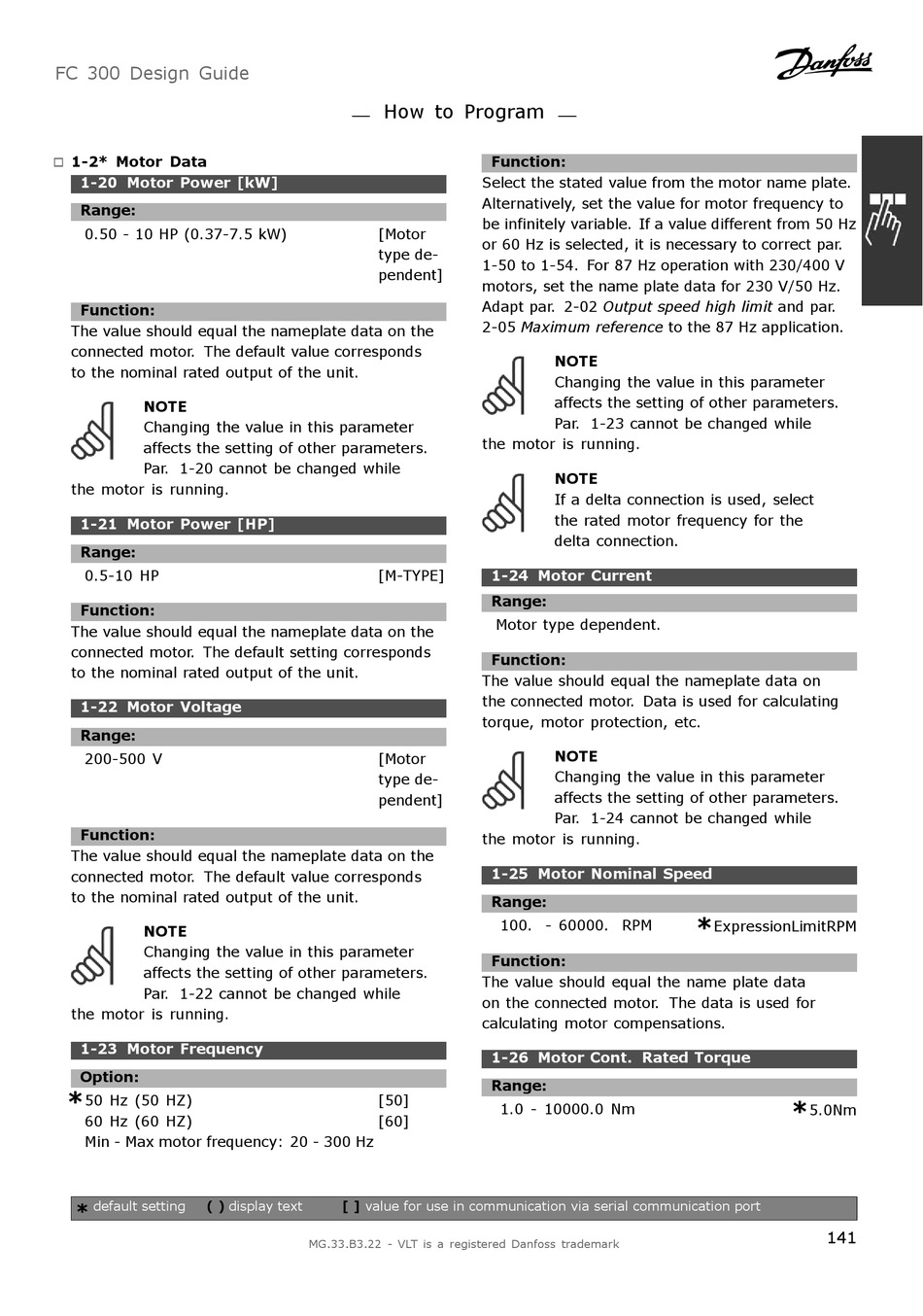

Danfoss VLT AutomationDrive FC 300 Design Manual page 141

FC 300 Design Guide
1-2* Motor Data
"
1-20 Motor Power [kW]
Range:
0.50 - 10 HP (0.37-7.5 kW)
Function:
The value should equal the nameplate data on the
connected motor. The default value corresponds
to the nominal rated output of the unit.
NOTE
Changing the value in this parameter
affects the setting of other parameters.
Par. 1-20 cannot be changed while
the motor is running.
1-21 Motor Power [HP]
Range:
0.5-10 HP
Function:
The value should equal the nameplate data on the
connected motor. The default setting corresponds
to the nominal rated output of the unit.
1-22 Motor Voltage
Range:
200-500 V
Function:
The value should equal the nameplate data on the
connected motor. The default value corresponds
to the nominal rated output of the unit.
NOTE
Changing the value in this parameter
affects the setting of other parameters.
Par. 1-22 cannot be changed while
the motor is running.
1-23 Motor Frequency
Option:
*
50 Hz (50 HZ)
60 Hz (60 HZ)
Min - Max motor frequency: 20 - 300 Hz
* default setting ( )
How to Program
[Motor
type de-
pendent]
[M-TYPE]
[Motor
type de-
pendent]
[50]
[60]
display text [ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
Function:
Select the stated value from the motor name plate.
Alternatively, set the value for motor frequency to
be infinitely variable. If a value different from 50 Hz
or 60 Hz is selected, it is necessary to correct par.
1-50 to 1-54. For 87 Hz operation with 230/400 V
motors, set the name plate data for 230 V/50 Hz.
Adapt par. 2-02 Output speed high limit and par.
2-05 Maximum reference to the 87 Hz application.
NOTE
Changing the value in this parameter
affects the setting of other parameters.
Par. 1-23 cannot be changed while
the motor is running.
NOTE
If a delta connection is used, select
the rated motor frequency for the
delta connection.
1-24 Motor Current
Range:
Motor type dependent.
Function:
The value should equal the nameplate data on
the connected motor. Data is used for calculating
torque, motor protection, etc.
NOTE
Changing the value in this parameter
affects the setting of other parameters.
Par. 1-24 cannot be changed while
the motor is running.
1-25 Motor Nominal Speed
Range:
100. - 60000. RPM
Function:
The value should equal the name plate data
on the connected motor. The data is used for
calculating motor compensations.
1-26 Motor Cont. Rated Torque
Range:
1.0 - 10000.0 Nm
*
ExpressionLimitRPM
*
5.0Nm
