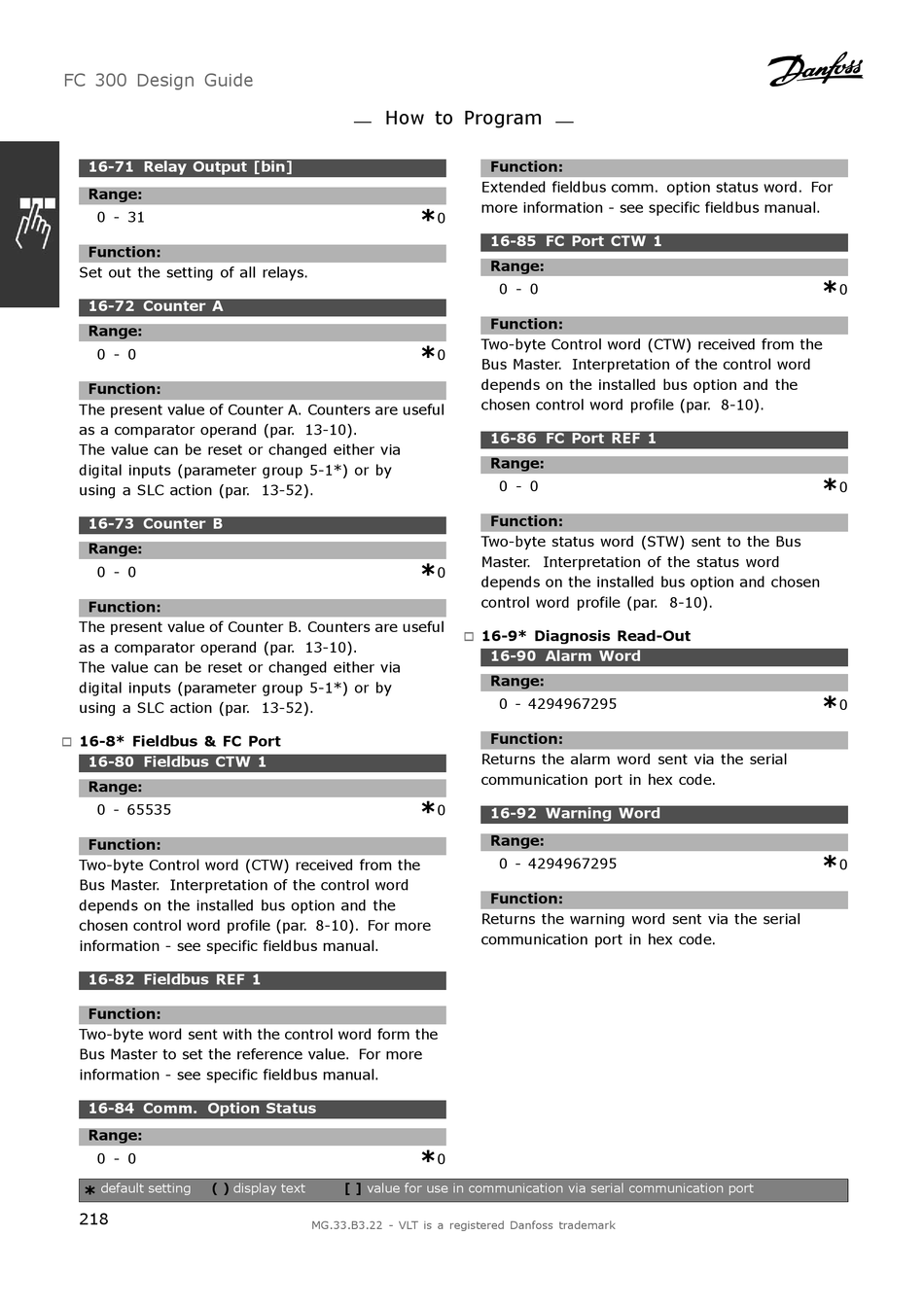

FC 300 Design Guide
16-71 Relay Output [bin]
Range:
0 - 31
Function:
Set out the setting of all relays.
16-72 Counter A
Range:
0 - 0
Function:
The present value of Counter A. Counters are useful
as a comparator operand (par. 13-10).
The value can be reset or changed either via
digital inputs (parameter group 5-1*) or by
using a SLC action (par. 13-52).
16-73 Counter B
Range:
0 - 0
Function:
The present value of Counter B. Counters are useful
as a comparator operand (par. 13-10).
The value can be reset or changed either via
digital inputs (parameter group 5-1*) or by
using a SLC action (par. 13-52).
16-8* Fieldbus & FC Port
"
16-80 Fieldbus CTW 1
Range:
0 - 65535
Function:
Two-byte Control word (CTW) received from the
Bus Master. Interpretation of the control word
depends on the installed bus option and the
chosen control word profile (par. 8-10). For more
information - see specific fieldbus manual.
16-82 Fieldbus REF 1
Function:
Two-byte word sent with the control word form the
Bus Master to set the reference value. For more
information - see specific fieldbus manual.
16-84 Comm. Option Status
Range:
0 - 0
default setting ( ) display text
*
218
How to Program
Extended fieldbus comm. option status word. For
more information - see specific fieldbus manual.
*
0
Two-byte Control word (CTW) received from the
*
0
Bus Master. Interpretation of the control word
depends on the installed bus option and the
chosen control word profile (par. 8-10).
Two-byte status word (STW) sent to the Bus
Master. Interpretation of the status word
*
0
depends on the installed bus option and chosen
control word profile (par. 8-10).
16-9* Diagnosis Read-Out
"
Returns the alarm word sent via the serial
communication port in hex code.
*
0
Returns the warning word sent via the serial
communication port in hex code.
*
0
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
Function:
16-85 FC Port CTW 1
Range:
0 - 0
Function:
16-86 FC Port REF 1
Range:
0 - 0
Function:
16-90 Alarm Word
Range:
0 - 4294967295
Function:
16-92 Warning Word
Range:
0 - 4294967295
Function:
*
0
*
0
*
0
*
0
