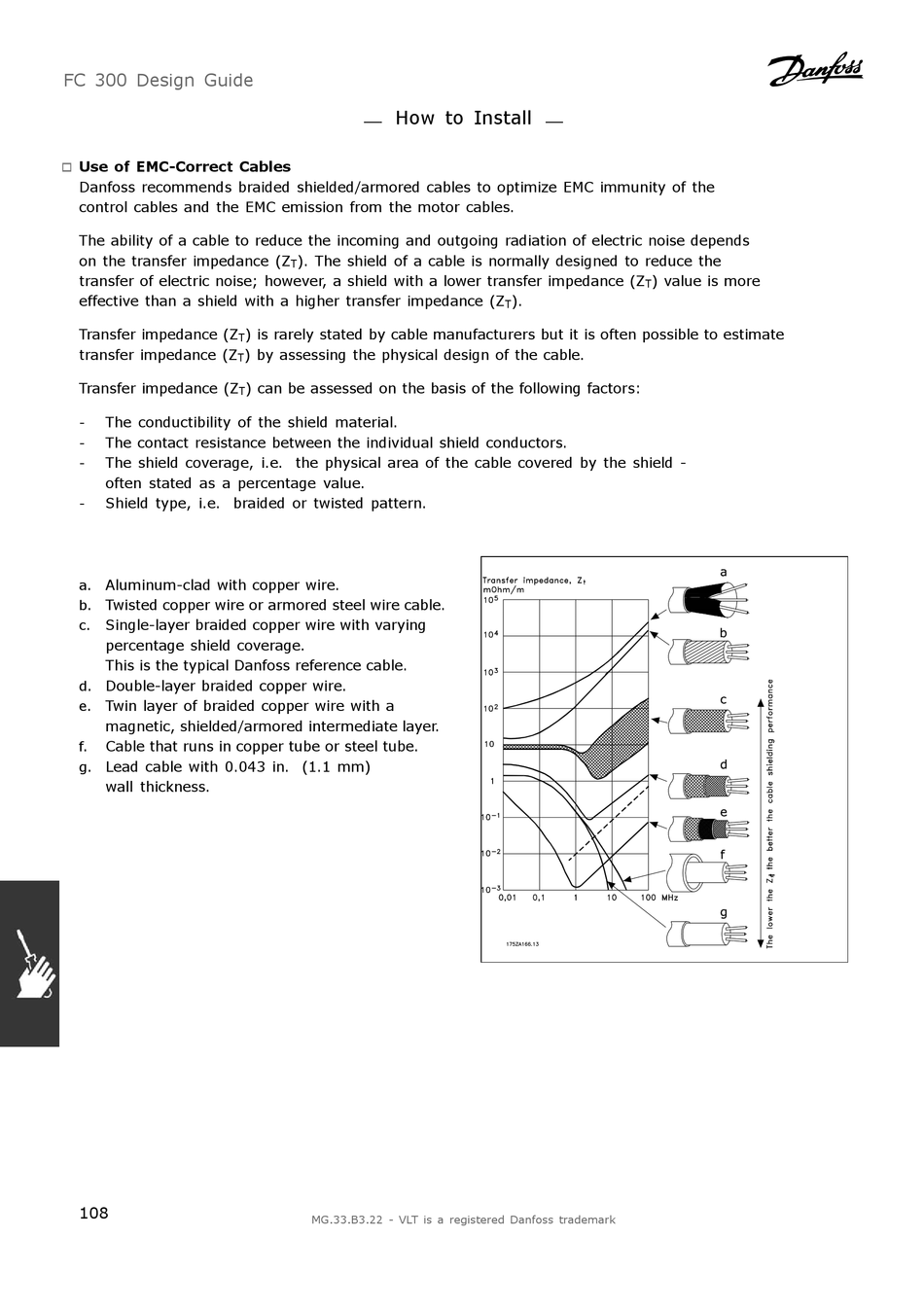

Use of EMC-Correct Cables

"
Danfoss recommends braided shielded/armored cables to optimize EMC immunity of the
control cables and the EMC emission from the motor cables.
The ability of a cable to reduce the incoming and outgoing radiation of electric noise depends
on the transfer impedance (Z
transfer of electric noise; however, a shield with a lower transfer impedance (Z
effective than a shield with a higher transfer impedance (Z
Transfer impedance (Z
transfer impedance (Z
Transfer impedance (Z
The conductibility of the shield material.
-
- The contact resistance between the individual shield conductors.
The shield coverage, i.e. the physical area of the cable covered by the shield -
-
often stated as a percentage value.
Shield type, i.e. braided or twisted pattern.
-
Aluminum-clad with copper wire.
a.
b. Twisted copper wire or armored steel wire cable.
Single-layer braided copper wire with varying
c.
percentage shield coverage.
This is the typical Danfoss reference cable.
d. Double-layer braided copper wire.
Twin layer of braided copper wire with a
e.
magnetic, shielded/armored intermediate layer.
Cable that runs in copper tube or steel tube.
f.
g. Lead cable with 0.043 in. (1.1 mm)
wall thickness.
