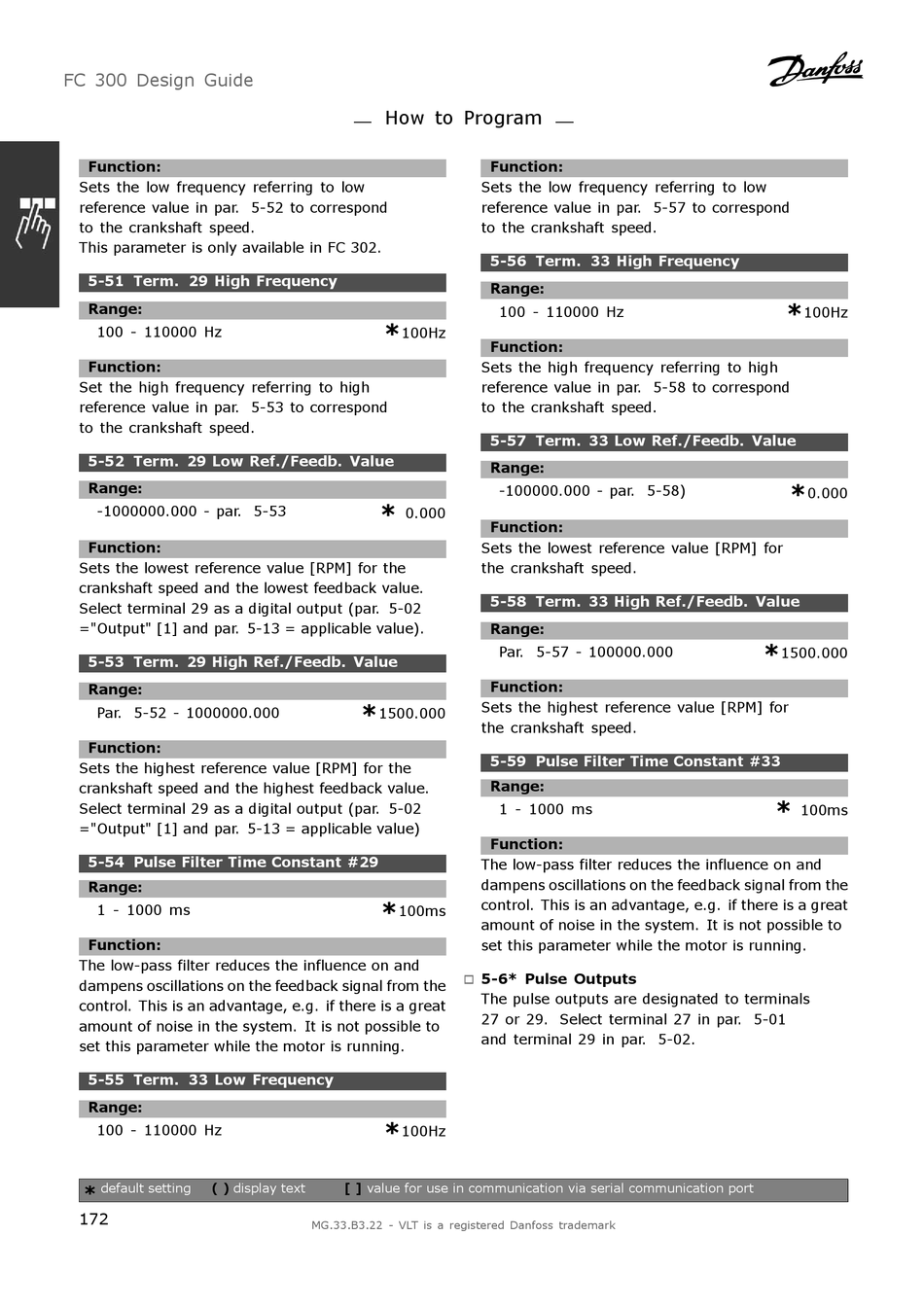

FC 300 Design Guide
Function:
Sets the low frequency referring to low
reference value in par. 5-52 to correspond
to the crankshaft speed.
This parameter is only available in FC 302.
5-51 Term. 29 High Frequency
Range:
100 - 110000 Hz
Function:
Set the high frequency referring to high
reference value in par. 5-53 to correspond
to the crankshaft speed.
5-52 Term. 29 Low Ref./Feedb. Value
Range:
-1000000.000 - par. 5-53
Function:
Sets the lowest reference value [RPM] for the
crankshaft speed and the lowest feedback value.
Select terminal 29 as a digital output (par. 5-02
="Output" [1] and par. 5-13 = applicable value).
5-53 Term. 29 High Ref./Feedb. Value
Range:
Par. 5-52 - 1000000.000
Function:
Sets the highest reference value [RPM] for the
crankshaft speed and the highest feedback value.
Select terminal 29 as a digital output (par. 5-02
="Output" [1] and par. 5-13 = applicable value)
5-54 Pulse Filter Time Constant #29
Range:
1 - 1000 ms
Function:
The low-pass filter reduces the influence on and
dampens oscillations on the feedback signal from the
control. This is an advantage, e.g. if there is a great
amount of noise in the system. It is not possible to
set this parameter while the motor is running.
5-55 Term. 33 Low Frequency
Range:
100 - 110000 Hz
default setting ( ) display text
*
172
How to Program
Sets the low frequency referring to low
reference value in par. 5-57 to correspond
to the crankshaft speed.
*
100Hz
Sets the high frequency referring to high
reference value in par. 5-58 to correspond
to the crankshaft speed.
*
0.000
Sets the lowest reference value [RPM] for
the crankshaft speed.
*
Sets the highest reference value [RPM] for
1500.000
the crankshaft speed.
The low-pass filter reduces the influence on and
dampens oscillations on the feedback signal from the
*
control. This is an advantage, e.g. if there is a great
100ms
amount of noise in the system. It is not possible to
set this parameter while the motor is running.
5-6* Pulse Outputs
"
The pulse outputs are designated to terminals
27 or 29. Select terminal 27 in par. 5-01
and terminal 29 in par. 5-02.
*
100Hz
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
Function:
5-56 Term. 33 High Frequency
Range:
100 - 110000 Hz
Function:
5-57 Term. 33 Low Ref./Feedb. Value
Range:
-100000.000 - par. 5-58)
Function:
5-58 Term. 33 High Ref./Feedb. Value
Range:
Par. 5-57 - 100000.000
Function:
5-59 Pulse Filter Time Constant #33
Range:
1 - 1000 ms
Function:
*
100Hz
*
0.000
*
1500.000
*
100ms
