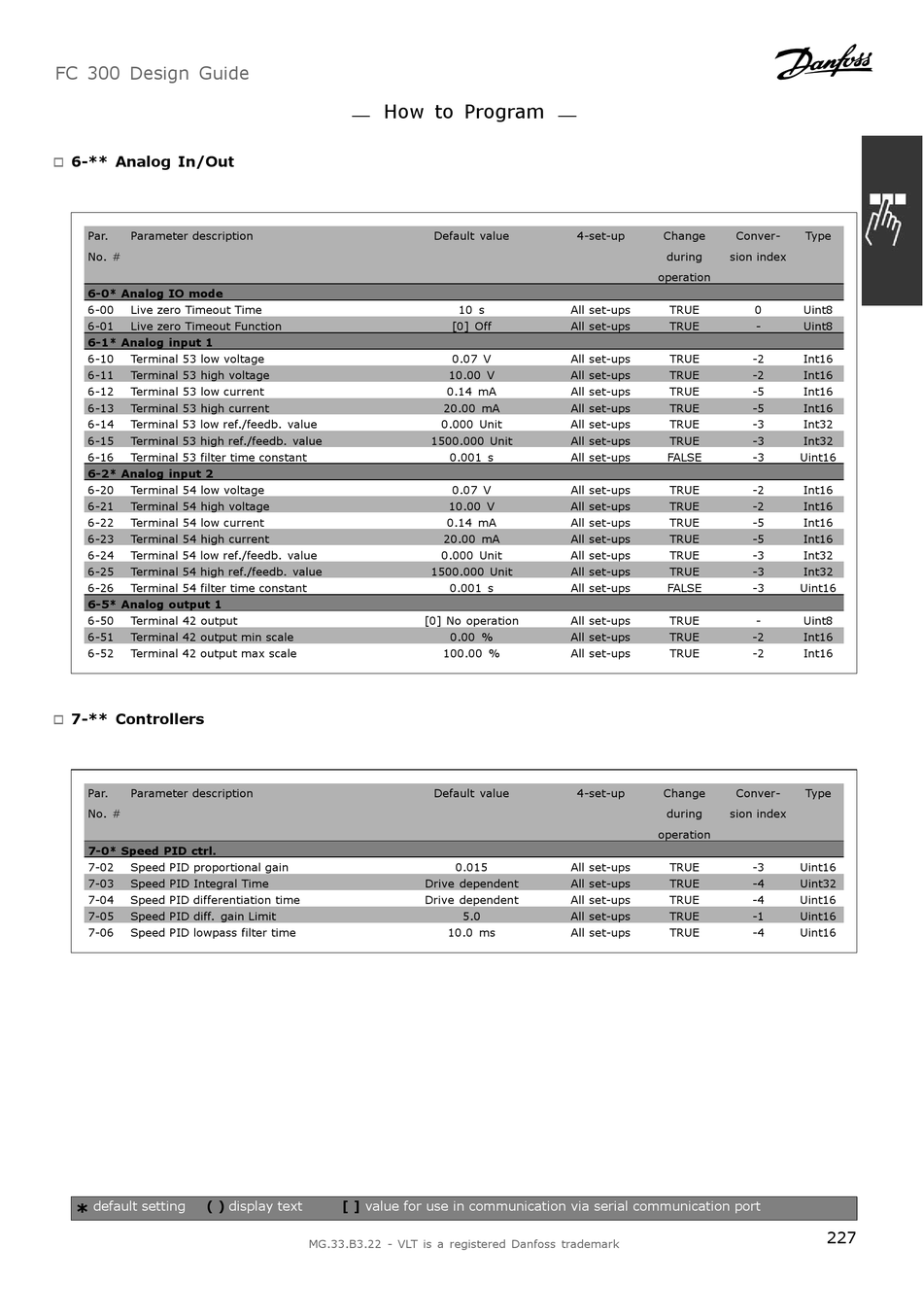

6-** Analog In/Out
"
Par. Parameter description
No. #
6-0* Analog IO mode
6-00 Live zero Timeout Time
6-01 Live zero Timeout Function
6-1* Analog input 1
6-10 Terminal 53 low voltage
6-11 Terminal 53 high voltage
6-12 Terminal 53 low current
6-13 Terminal 53 high current
6-14 Terminal 53 low ref./feedb. value
6-15 Terminal 53 high ref./feedb. value
6-16 Terminal 53 filter time constant
6-2* Analog input 2
6-20 Terminal 54 low voltage
6-21 Terminal 54 high voltage
6-22 Terminal 54 low current
6-23 Terminal 54 high current
6-24 Terminal 54 low ref./feedb. value
6-25 Terminal 54 high ref./feedb. value
6-26 Terminal 54 filter time constant
6-5* Analog output 1
6-50 Terminal 42 output
6-51 Terminal 42 output min scale
6-52 Terminal 42 output max scale
7-** Controllers
"
Par. Parameter description
No. #
7-0* Speed PID ctrl.
7-02 Speed PID proportional gain
7-03 Speed PID Integral Time
7-04 Speed PID differentiation time
7-05 Speed PID diff. gain Limit
7-06 Speed PID lowpass filter time
* default setting ( )
How to Program
display text [ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
Default value 4-set-up
10 s All set-ups
[0] Off All set-ups
0.07 V All set-ups
10.00 V All set-ups
0.14 mA All set-ups
20.00 mA All set-ups
0.000 Unit All set-ups
1500.000 Unit All set-ups
0.001 s All set-ups
0.07 V All set-ups
10.00 V All set-ups
0.14 mA All set-ups
20.00 mA All set-ups
0.000 Unit All set-ups
1500.000 Unit All set-ups
0.001 s All set-ups
[0] No operation All set-ups
0.00 % All set-ups
100.00 % All set-ups
Default value 4-set-up
0.015 All set-ups
Drive dependent All set-ups
Drive dependent All set-ups
5.0 All set-ups
10.0 ms All set-ups
Change Conver- Type
during sion index
operation
TRUE 0 Uint8
TRUE - Uint8
TRUE -2 Int16
TRUE -2 Int16
TRUE -5 Int16
TRUE -5 Int16
TRUE -3 Int32
TRUE -3 Int32
FALSE -3 Uint16
TRUE -2 Int16
TRUE -2 Int16
TRUE -5 Int16
TRUE -5 Int16
TRUE -3 Int32
TRUE -3 Int32
FALSE -3 Uint16
TRUE - Uint8
TRUE -2 Int16
TRUE -2 Int16
Change Conver- Type
during sion index
operation
TRUE -3 Uint16
TRUE -4 Uint32
TRUE -4 Uint16
TRUE -1 Uint16
TRUE -4 Uint16
227
