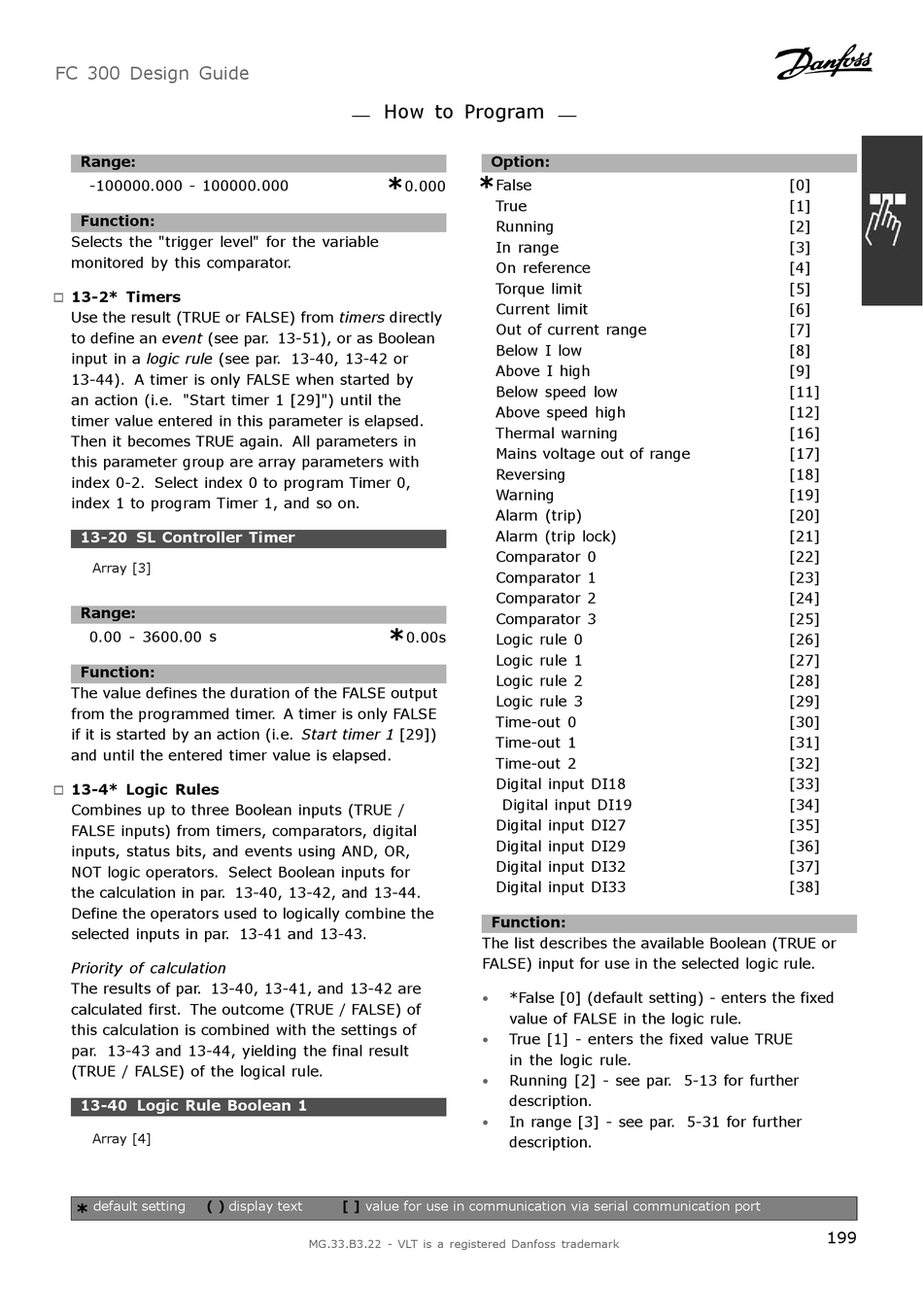

FC 300 Design Guide
Range:
-100000.000 - 100000.000
Function:
Selects the "trigger level" for the variable
monitored by this comparator.
13-2* Timers
"
Use the result (TRUE or FALSE) from timers directly
to define an event (see par. 13-51), or as Boolean
input in a logic rule (see par. 13-40, 13-42 or
13-44). A timer is only FALSE when started by
an action (i.e. "Start timer 1 [29]") until the
timer value entered in this parameter is elapsed.
Then it becomes TRUE again. All parameters in
this parameter group are array parameters with
index 0-2. Select index 0 to program Timer 0,
index 1 to program Timer 1, and so on.
13-20 SL Controller Timer
Array [3]
Range:
0.00 - 3600.00 s
Function:
The value defines the duration of the FALSE output
from the programmed timer. A timer is only FALSE
if it is started by an action (i.e. Start timer 1 [29])
and until the entered timer value is elapsed.
13-4* Logic Rules
"
Combines up to three Boolean inputs (TRUE /
FALSE inputs) from timers, comparators, digital
inputs, status bits, and events using AND, OR,
NOT logic operators. Select Boolean inputs for
the calculation in par. 13-40, 13-42, and 13-44.
Define the operators used to logically combine the
selected inputs in par. 13-41 and 13-43.
Priority of calculation
The results of par. 13-40, 13-41, and 13-42 are
calculated first. The outcome (TRUE / FALSE) of
this calculation is combined with the settings of
par. 13-43 and 13-44, yielding the final result
(TRUE / FALSE) of the logical rule.
13-40 Logic Rule Boolean 1
Array [4]
* default setting ( )
How to Program
*
*
display text [ ] value for use in communication via serial communication port
