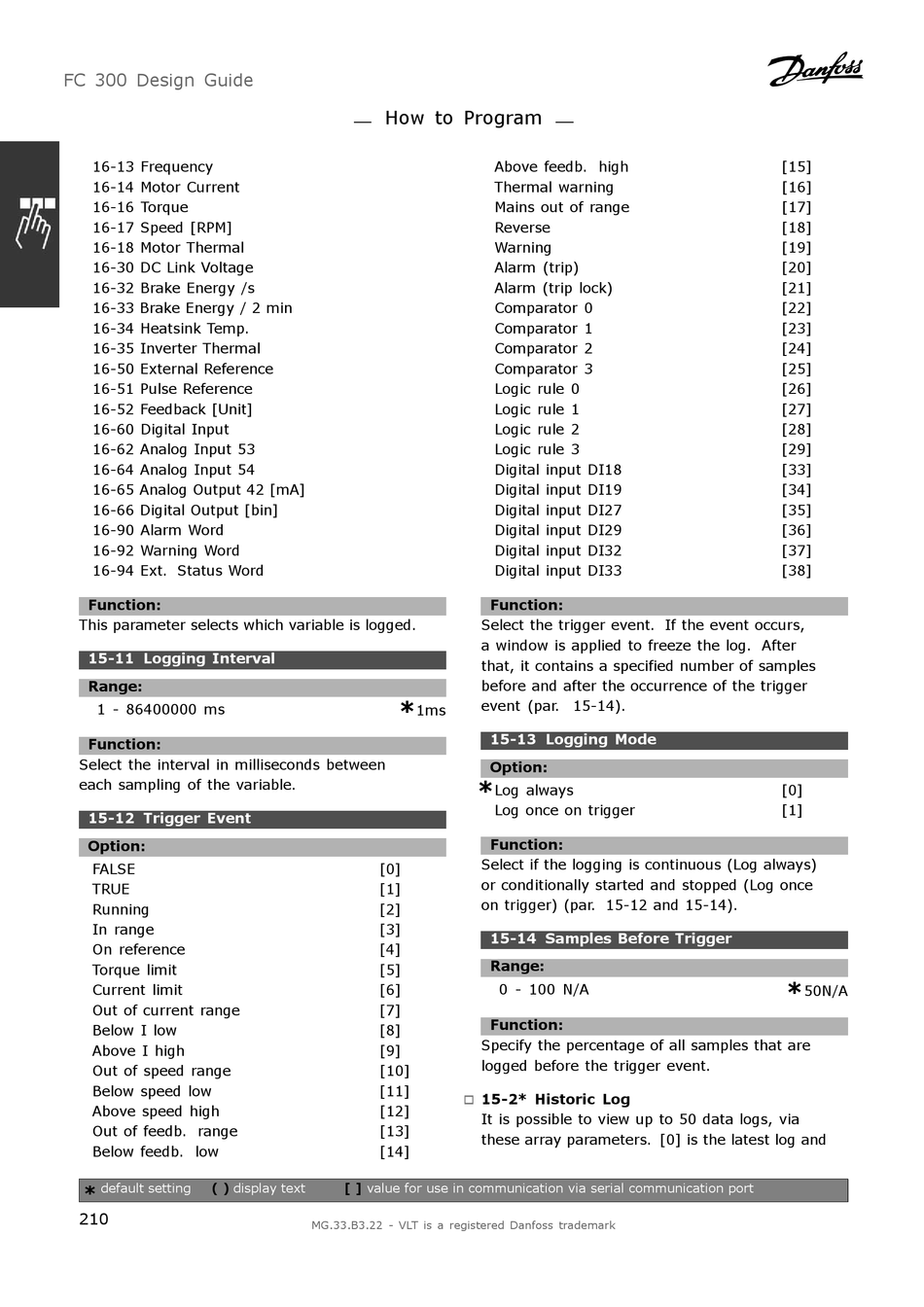

Danfoss VLT AutomationDrive FC 300 Design Manual page 210

FC 300 Design Guide
16-13 Frequency
16-14 Motor Current
16-16 Torque
16-17 Speed [RPM]
16-18 Motor Thermal
16-30 DC Link Voltage
16-32 Brake Energy /s
16-33 Brake Energy / 2 min
16-34 Heatsink Temp.
16-35 Inverter Thermal
16-50 External Reference
16-51 Pulse Reference
16-52 Feedback [Unit]
16-60 Digital Input
16-62 Analog Input 53
16-64 Analog Input 54
16-65 Analog Output 42 [mA]
16-66 Digital Output [bin]
16-90 Alarm Word
16-92 Warning Word
16-94 Ext. Status Word
Function:
This parameter selects which variable is logged.
15-11 Logging Interval
Range:
1 - 86400000 ms
Function:
Select the interval in milliseconds between
each sampling of the variable.
15-12 Trigger Event
Option:
FALSE
TRUE
Running
In range
On reference
Torque limit
Current limit
Out of current range
Below I low
Above I high
Out of speed range
Below speed low
Above speed high
Out of feedb. range
Below feedb. low
default setting ( ) display text
*
210
How to Program
Select the trigger event. If the event occurs,
a window is applied to freeze the log. After
that, it contains a specified number of samples
before and after the occurrence of the trigger
*
event (par. 15-14).
1ms
*
Select if the logging is continuous (Log always)
[0]
or conditionally started and stopped (Log once
[1]
on trigger) (par. 15-12 and 15-14).
[2]
[3]
[4]
[5]
[6]
[7]
[8]
Specify the percentage of all samples that are
[9]
logged before the trigger event.
[10]
[11]
15-2* Historic Log
"
[12]
It is possible to view up to 50 data logs, via
[13]
these array parameters. [0] is the latest log and
[14]
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
Above feedb. high
Thermal warning
Mains out of range
Reverse
Warning
Alarm (trip)
Alarm (trip lock)
Comparator 0
Comparator 1
Comparator 2
Comparator 3
Logic rule 0
Logic rule 1
Logic rule 2
Logic rule 3
Digital input DI18
Digital input DI19
Digital input DI27
Digital input DI29
Digital input DI32
Digital input DI33
Function:
15-13 Logging Mode
Option:
Log always
Log once on trigger
Function:
15-14 Samples Before Trigger
Range:
0 - 100 N/A
Function:
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]
[25]
[26]
[27]
[28]
[29]
[33]
[34]
[35]
[36]
[37]
[38]
[0]
[1]
*
50N/A
