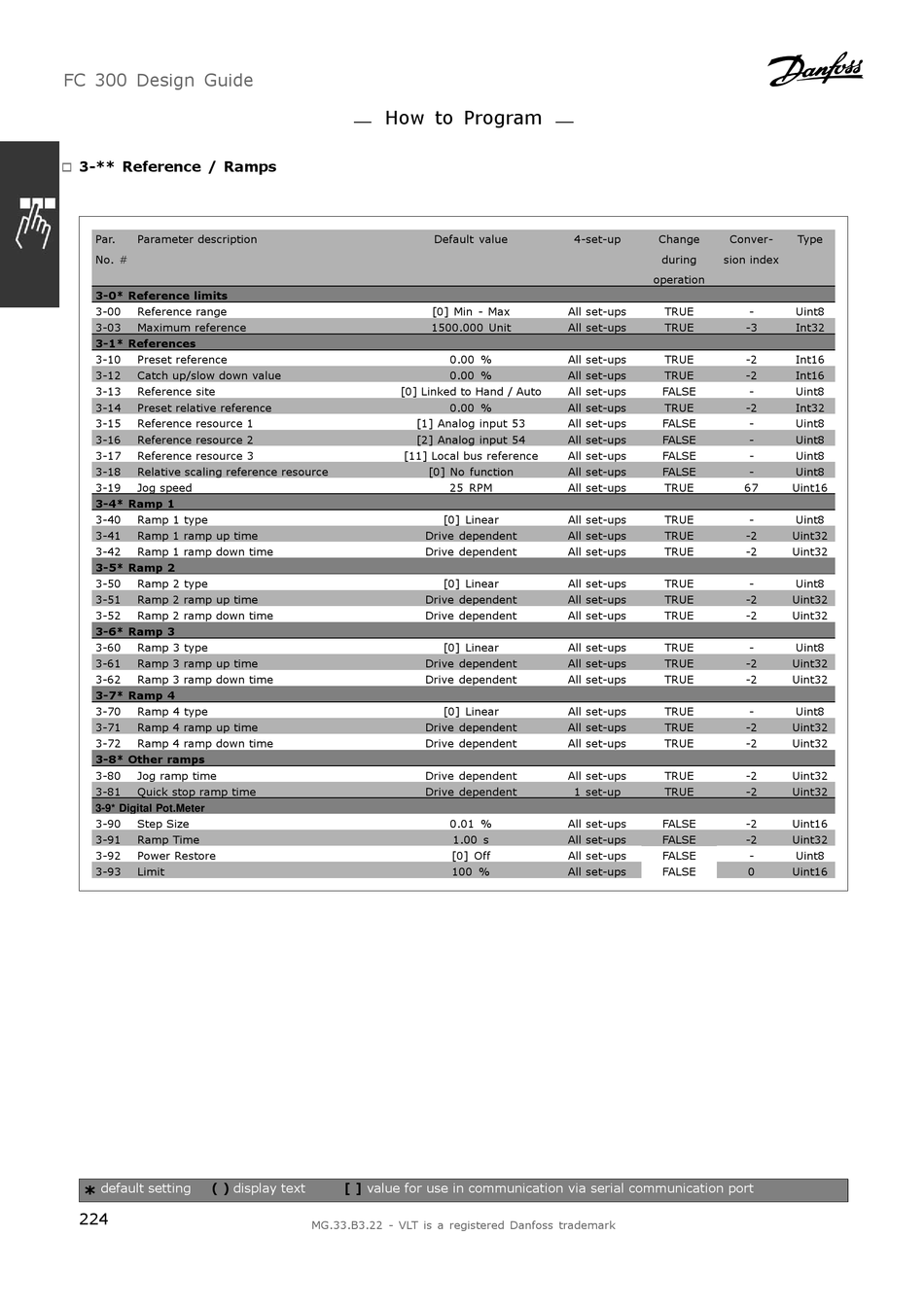

Danfoss VLT AutomationDrive FC 300 Design Manual page 224

FC 300 Design Guide
3-** Reference / Ramps
"
Par. Parameter description
No. #
3-0* Reference limits
3-00 Reference range
3-03 Maximum reference
3-1* References
3-10 Preset reference
3-12 Catch up/slow down value
3-13 Reference site
3-14 Preset relative reference
3-15 Reference resource 1
3-16 Reference resource 2
3-17 Reference resource 3
3-18 Relative scaling reference resource
3-19 Jog speed
3-4* Ramp 1
3-40 Ramp 1 type
3-41 Ramp 1 ramp up time
3-42 Ramp 1 ramp down time
3-5* Ramp 2
3-50 Ramp 2 type
3-51 Ramp 2 ramp up time
3-52 Ramp 2 ramp down time
3-6* Ramp 3
3-60 Ramp 3 type
3-61 Ramp 3 ramp up time
3-62 Ramp 3 ramp down time
3-7* Ramp 4
3-70 Ramp 4 type
3-71 Ramp 4 ramp up time
3-72 Ramp 4 ramp down time
3-8* Other ramps
3-80 Jog ramp time
3-81 Quick stop ramp time
3-9* Digital Pot.Meter
3-90 Step Size
3-91 Ramp Time
3-92 Power Restore
3-93 Limit
default setting ( ) display text
*
224
How to Program
Default value
[0] Min - Max
1500.000 Unit
0.00 %
0.00 %
[0] Linked to Hand / Auto
0.00 %
[1] Analog input 53
[2] Analog input 54
[11] Local bus reference
[0] No function
25 RPM
[0] Linear
Drive dependent
Drive dependent
[0] Linear
Drive dependent
Drive dependent
[0] Linear
Drive dependent
Drive dependent
[0] Linear
Drive dependent
Drive dependent
Drive dependent
Drive dependent
0.01 %
1.00 s
[0] Off
100 %
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
4-set-up Change Conver-
during sion index
operation
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups FALSE
All set-ups TRUE
All set-ups FALSE
All set-ups FALSE
All set-ups FALSE
All set-ups FALSE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
All set-ups TRUE
1 set-up TRUE
All set-ups FALSE
All set-ups FALSE
All set-ups FALSE
All set-ups FALSE
Type
- Uint8
-3 Int32
-2 Int16
-2 Int16
- Uint8
-2 Int32
- Uint8
- Uint8
- Uint8
- Uint8
67 Uint16
- Uint8
-2 Uint32
-2 Uint32
- Uint8
-2 Uint32
-2 Uint32
- Uint8
-2 Uint32
-2 Uint32
- Uint8
-2 Uint32
-2 Uint32
-2 Uint32
-2 Uint32
-2 Uint16
-2 Uint32
- Uint8
0 Uint16
