FC 300 Design Guide

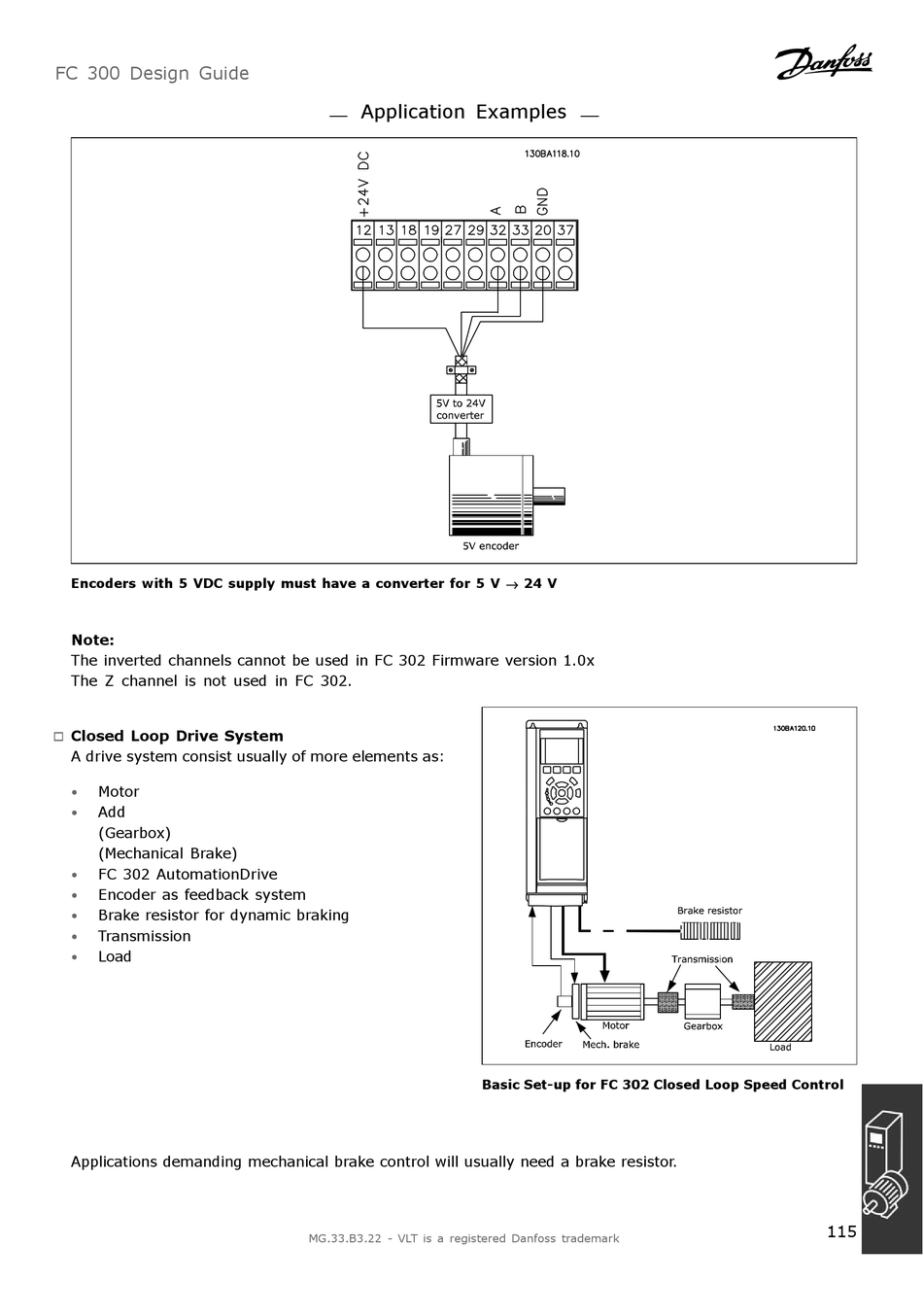

Encoders with 5 VDC supply must have a converter for 5 V → 24 V
Note:
The inverted channels cannot be used in FC 302 Firmware version 1.0x
The Z channel is not used in FC 302.

Closed Loop Drive System

"
A drive system consist usually of more elements as:
Motor
•
• Add
(Gearbox)
(Mechanical Brake)
FC 302 AutomationDrive
•
Encoder as feedback system
•
Brake resistor for dynamic braking
•
• Transmission
Load
•
Applications demanding mechanical brake control will usually need a brake resistor.
Application Examples
Basic Set-up for FC 302 Closed Loop Speed Control
