Some adjustable frequency drives have parameters
in which you can write a text. To write a text
via the PWE block, set the parameter command
(AK) to "F" Hex. For a write command, the
text must have the shown format:
Data types supported by adjustable frequency drive:
Unsigned means that there is no operational
sign in the telegram.

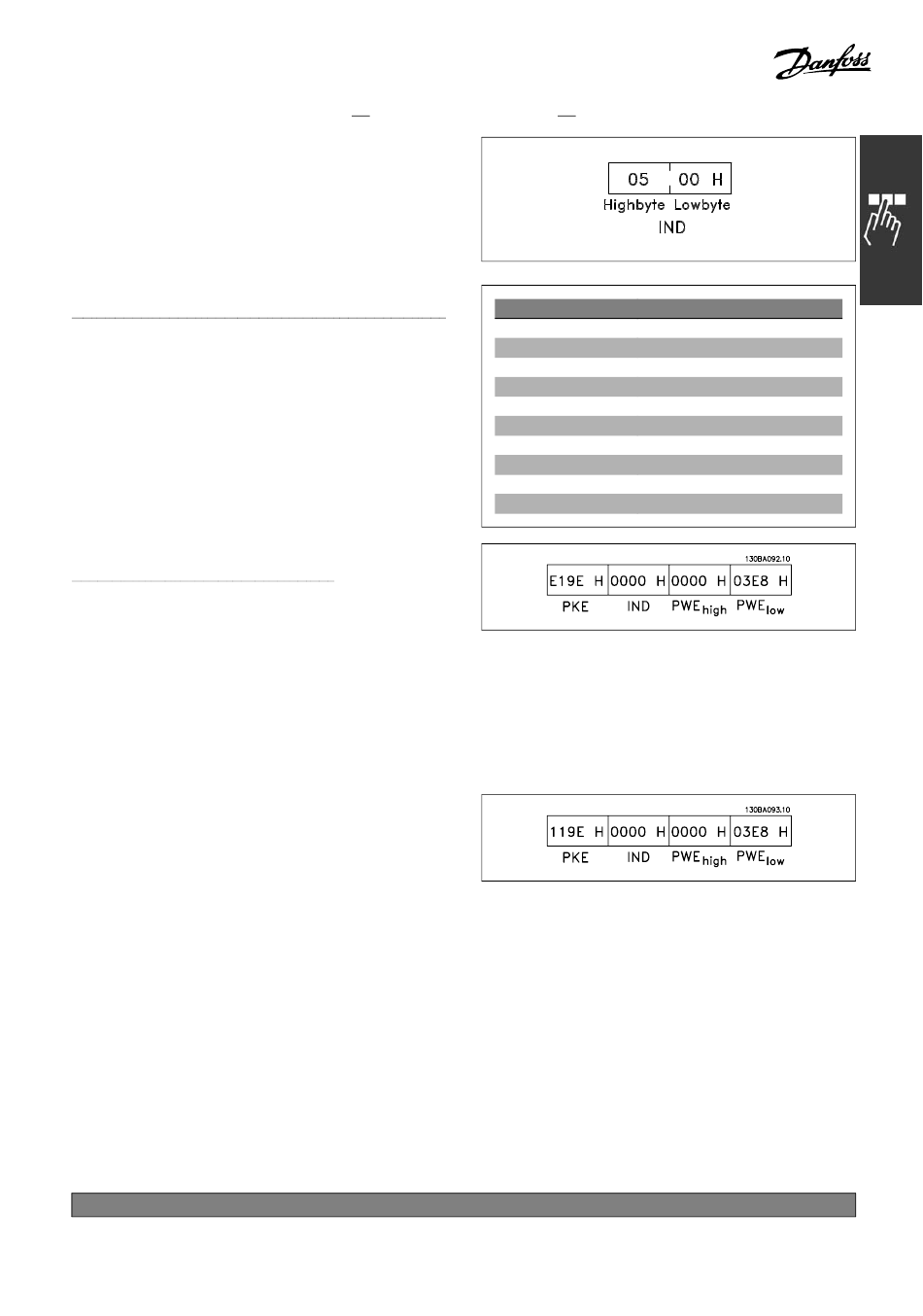

Example - Write a parameter value:
Change par. 4-14 Motor Speed High Limit
to 100 Hz. After a mains failure, recall the
value to write it in EEPROM.
PKE = E19E Hex - Write for par. 4-14
Motor Speed High Limit
IND = 0000 Hex
PWE = 0000 Hex
HIGH
PWE = 03E8 Hex - Data value 1000,
LOW
corresponding to 100 Hz, see conversion.
The response from the slave to the master will be:
* default setting ( ) display text
How to Program
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
Data types Description
3 Integer 16
4 Integer 32
5 Unsigned 8
6 Unsigned 16
7 Unsigned 32
9 Text string
10 Byte string
13 Time difference
33
35 Bit sequence
Reserved
