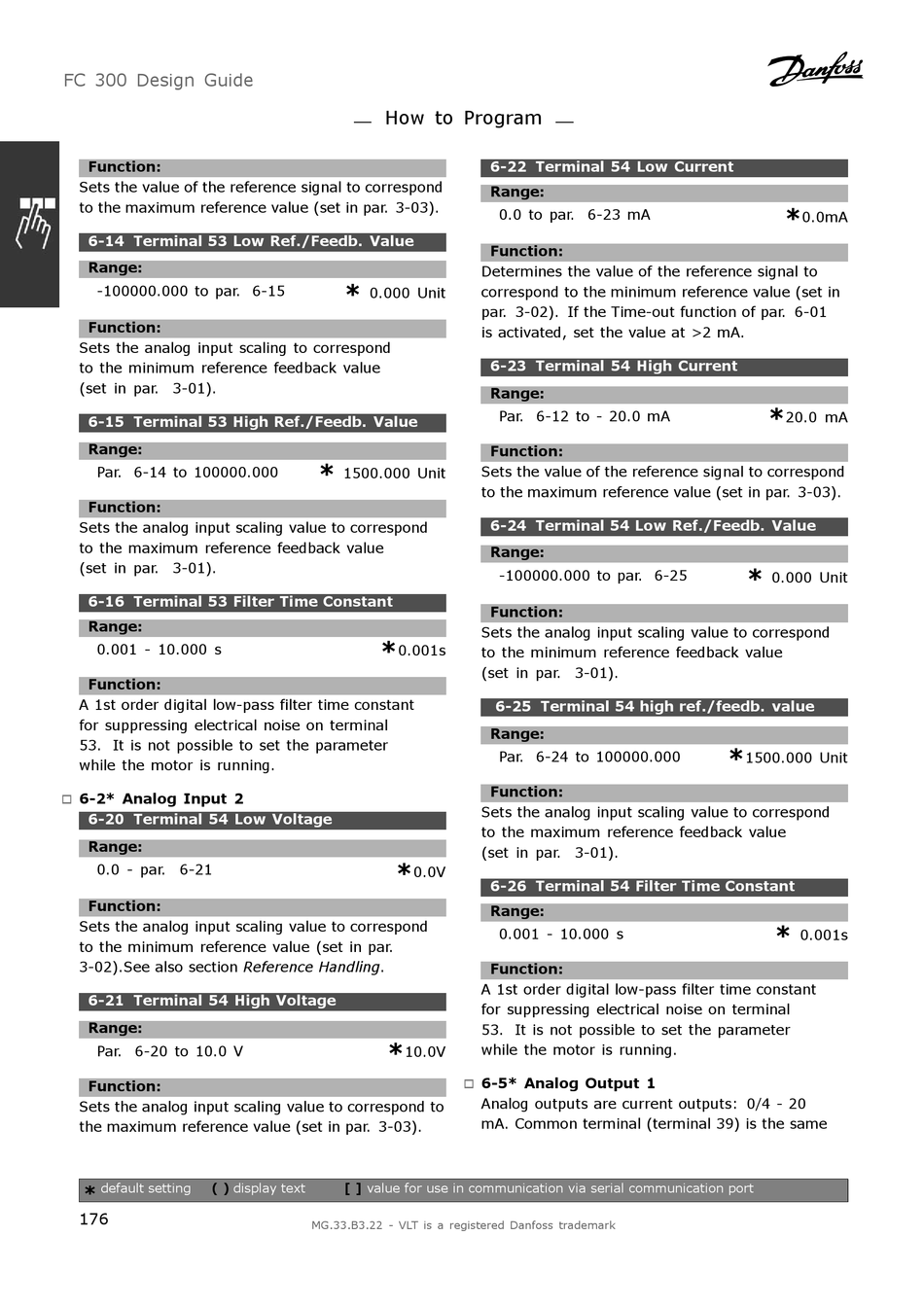

Danfoss VLT AutomationDrive FC 300 Design Manual page 176

FC 300 Design Guide
Function:
Sets the value of the reference signal to correspond
to the maximum reference value (set in par. 3-03).
6-14 Terminal 53 Low Ref./Feedb. Value
Range:
-100000.000 to par. 6-15
Function:
Sets the analog input scaling to correspond
to the minimum reference feedback value
(set in par. 3-01).
6-15 Terminal 53 High Ref./Feedb. Value
Range:
Par. 6-14 to 100000.000
Function:
Sets the analog input scaling value to correspond
to the maximum reference feedback value
(set in par. 3-01).
6-16 Terminal 53 Filter Time Constant
Range:
0.001 - 10.000 s
Function:
A 1st order digital low-pass filter time constant
for suppressing electrical noise on terminal
53. It is not possible to set the parameter
while the motor is running.
6-2* Analog Input 2
"
6-20 Terminal 54 Low Voltage
Range:
0.0 - par. 6-21
Function:
Sets the analog input scaling value to correspond
to the minimum reference value (set in par.
3-02).See also section Reference Handling.
6-21 Terminal 54 High Voltage
Range:
Par. 6-20 to 10.0 V
Function:
Sets the analog input scaling value to correspond to
the maximum reference value (set in par. 3-03).
default setting ( ) display text
*
176
How to Program
Determines the value of the reference signal to
*
correspond to the minimum reference value (set in
0.000 Unit
par. 3-02). If the Time-out function of par. 6-01
is activated, set the value at >2 mA.
*
Sets the value of the reference signal to correspond
1500.000 Unit
to the maximum reference value (set in par. 3-03).
Sets the analog input scaling value to correspond
*
0.001s
to the minimum reference feedback value
(set in par. 3-01).
Sets the analog input scaling value to correspond
to the maximum reference feedback value
(set in par. 3-01).
*
0.0V
A 1st order digital low-pass filter time constant
for suppressing electrical noise on terminal
53. It is not possible to set the parameter
*
while the motor is running.
10.0V
6-5* Analog Output 1
"
Analog outputs are current outputs: 0/4 - 20
mA. Common terminal (terminal 39) is the same
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
6-22 Terminal 54 Low Current
Range:
0.0 to par. 6-23 mA
Function:
6-23 Terminal 54 High Current
Range:
Par. 6-12 to - 20.0 mA
Function:
6-24 Terminal 54 Low Ref./Feedb. Value
Range:
-100000.000 to par. 6-25
Function:
6-25 Terminal 54 high ref./feedb. value
Range:
Par. 6-24 to 100000.000
Function:
6-26 Terminal 54 Filter Time Constant
Range:
0.001 - 10.000 s
Function:
*
0.0mA
*
20.0 mA
*
0.000 Unit
*
1500.000 Unit
*
0.001s
