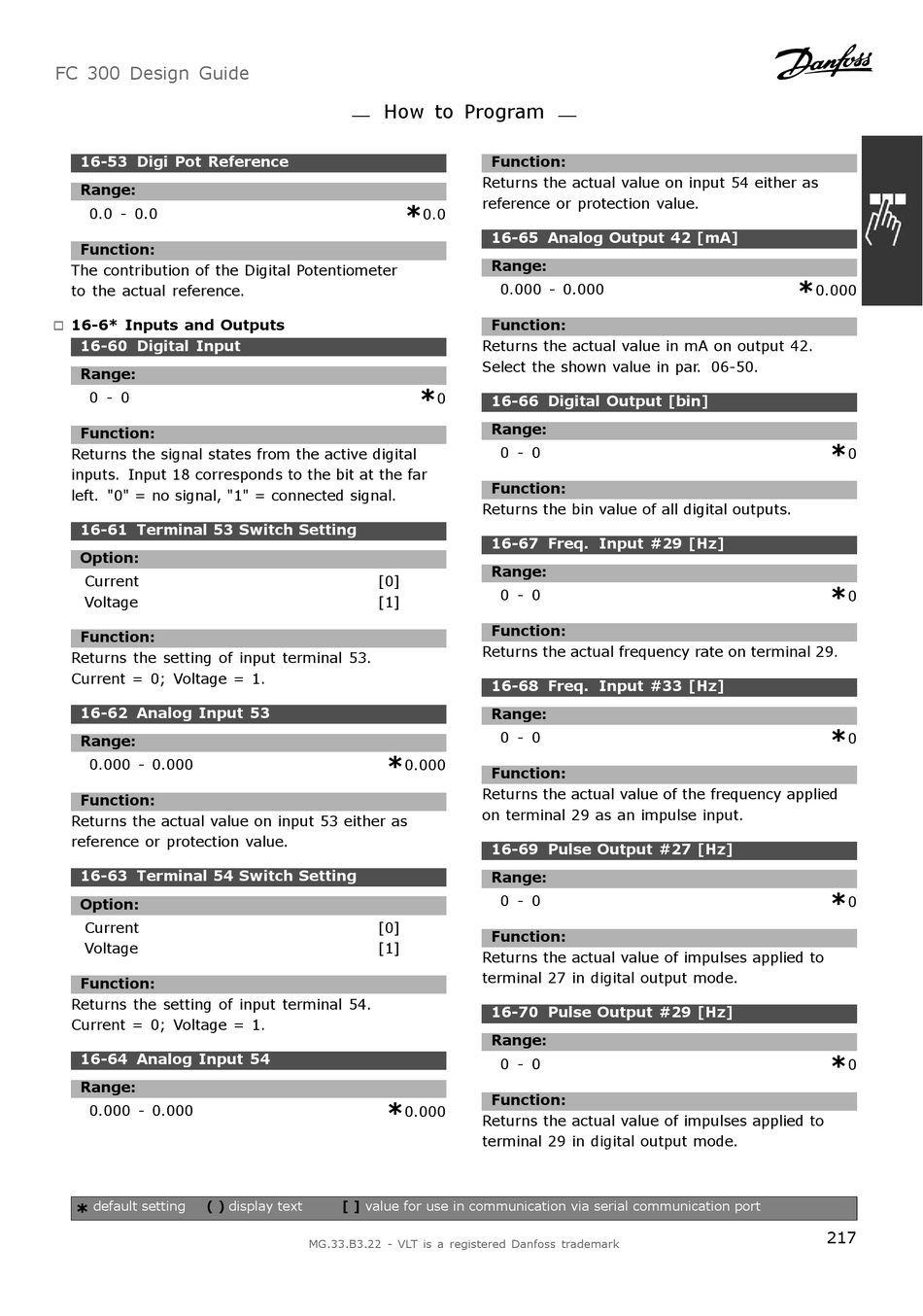

Danfoss VLT AutomationDrive FC 300 Design Manual page 217

FC 300 Design Guide
16-53 Digi Pot Reference
Range:
0.0 - 0.0
Function:
The contribution of the Digital Potentiometer
to the actual reference.
16-6* Inputs and Outputs
"
16-60 Digital Input
Range:
0 - 0
Function:
Returns the signal states from the active digital
inputs. Input 18 corresponds to the bit at the far
left. "0" = no signal, "1" = connected signal.
16-61 Terminal 53 Switch Setting
Option:
Current
Voltage
Function:
Returns the setting of input terminal 53.
Current = 0; Voltage = 1.
16-62 Analog Input 53
Range:
0.000 - 0.000
Function:
Returns the actual value on input 53 either as
reference or protection value.
16-63 Terminal 54 Switch Setting
Option:
Current
Voltage
Function:
Returns the setting of input terminal 54.
Current = 0; Voltage = 1.
16-64 Analog Input 54
Range:
0.000 - 0.000
* default setting ( )
How to Program
[0]
[1]
*
[0]
[1]
*
display text [ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
Function:
Returns the actual value on input 54 either as
reference or protection value.
*
0.0
16-65 Analog Output 42 [mA]
Range:
0.000 - 0.000
Function:
Returns the actual value in mA on output 42.
Select the shown value in par. 06-50.
*
0
16-66 Digital Output [bin]
Range:
0 - 0
Function:
Returns the bin value of all digital outputs.
16-67 Freq. Input #29 [Hz]
Range:
0 - 0
Function:
Returns the actual frequency rate on terminal 29.
16-68 Freq. Input #33 [Hz]
Range:
0 - 0
0.000
Function:
Returns the actual value of the frequency applied
on terminal 29 as an impulse input.
16-69 Pulse Output #27 [Hz]
Range:
0 - 0
Function:
Returns the actual value of impulses applied to
terminal 27 in digital output mode.
16-70 Pulse Output #29 [Hz]
Range:
0 - 0
Function:
0.000
Returns the actual value of impulses applied to
terminal 29 in digital output mode.
*
0.000
*
0
*
0
*
0
*
0
*
0
217
