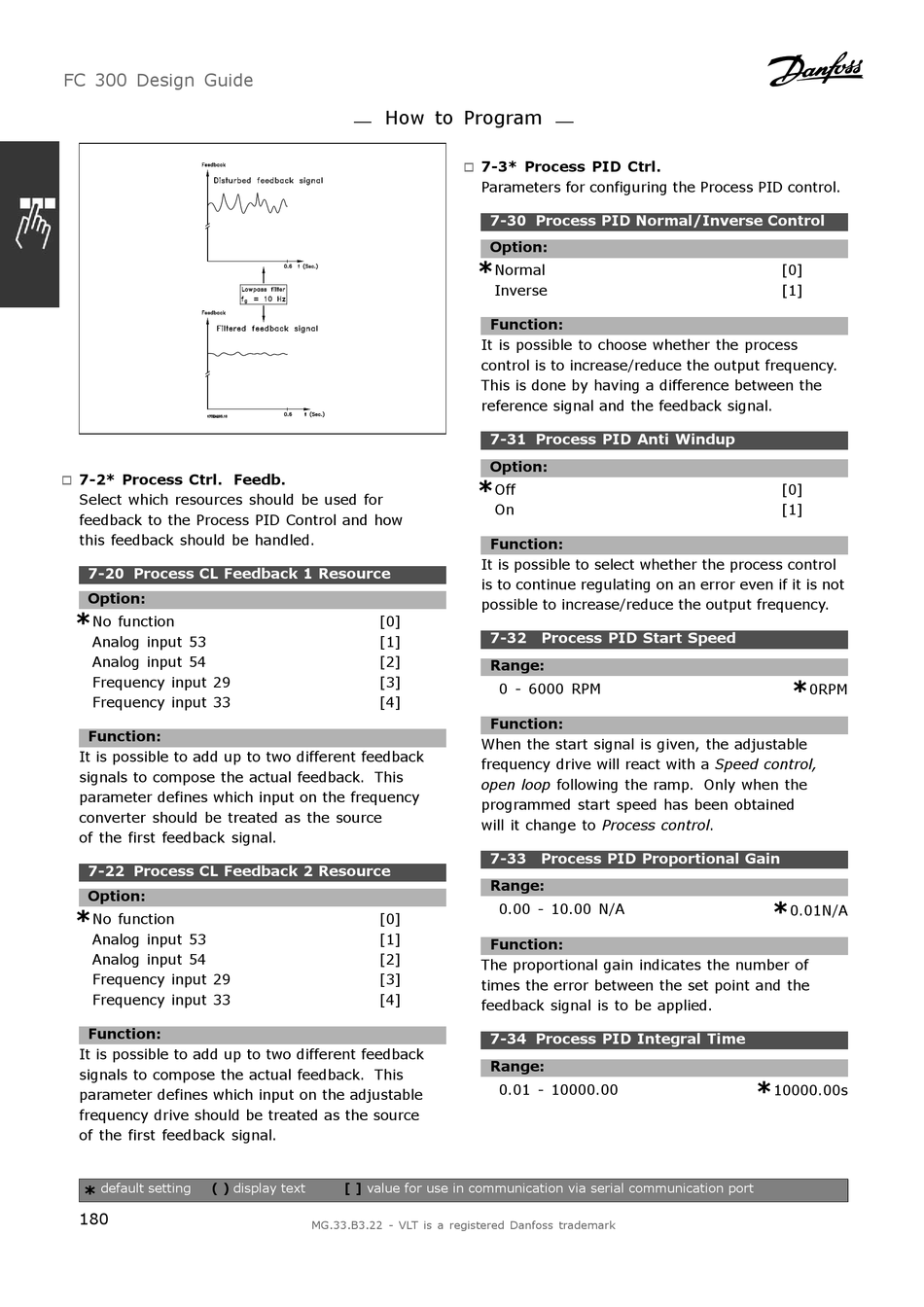

FC 300 Design Guide
7-2* Process Ctrl. Feedb.
"
Select which resources should be used for
feedback to the Process PID Control and how
this feedback should be handled.
7-20 Process CL Feedback 1 Resource
Option:
*
No function
Analog input 53
Analog input 54
Frequency input 29
Frequency input 33
Function:
It is possible to add up to two different feedback
signals to compose the actual feedback. This
parameter defines which input on the frequency
converter should be treated as the source
of the first feedback signal.
7-22 Process CL Feedback 2 Resource
Option:
*
No function
Analog input 53
Analog input 54
Frequency input 29
Frequency input 33
Function:
It is possible to add up to two different feedback
signals to compose the actual feedback. This
parameter defines which input on the adjustable
frequency drive should be treated as the source
of the first feedback signal.
default setting ( ) display text
*
180
How to Program
7-3* Process PID Ctrl.
"
Parameters for configuring the Process PID control.
*
It is possible to choose whether the process
control is to increase/reduce the output frequency.
This is done by having a difference between the
reference signal and the feedback signal.
*
It is possible to select whether the process control
is to continue regulating on an error even if it is not
possible to increase/reduce the output frequency.
[0]
[1]
[2]
[3]
[4]
When the start signal is given, the adjustable
frequency drive will react with a Speed control,
open loop following the ramp. Only when the
programmed start speed has been obtained
will it change to Process control.
[0]
[1]
[2]
The proportional gain indicates the number of
[3]
times the error between the set point and the
[4]
feedback signal is to be applied.
[ ] value for use in communication via serial communication port
MG.33.B3.22 - VLT is a registered Danfoss trademark
7-30 Process PID Normal/Inverse Control
Option:
Normal
Inverse
Function:
7-31 Process PID Anti Windup
Option:
Off
On
Function:
7-32 Process PID Start Speed
Range:
0 - 6000 RPM
Function:
7-33 Process PID Proportional Gain
Range:
0.00 - 10.00 N/A
Function:
7-34 Process PID Integral Time
Range:
0.01 - 10000.00
[0]
[1]
[0]
[1]
*
0RPM
*
0.01N/A
*
10000.00s
