2.6

Internal View

After you open the UPS's front door, you will see the internal mechanisms including a wiring
module slots and four battery module slots. Please refer to Figure 2-4.
Communication
Interfaces
1. For information about the communication interfaces, please refer to 4. Communication
Interfaces.
2. For STS module information, please refer to 5.7 STS Module.
3. For the power module slots (total: five), please follow on-site requirements to install
appropriate number of power modules (optional) into the slots. Please refer to 5.8
Power Module (Optional) for relevant information.
Modulon DPH Series
WARNING:
Only authorized Delta engineers or service personnel can perform installation,
wiring, panel & cover removal, maintenance and operation. If you want to execute
any action mentioned above by yourself, the action must be under the supervision
of authorized Delta engineers or service personnel.
Internal View
(Front View with Door Open)

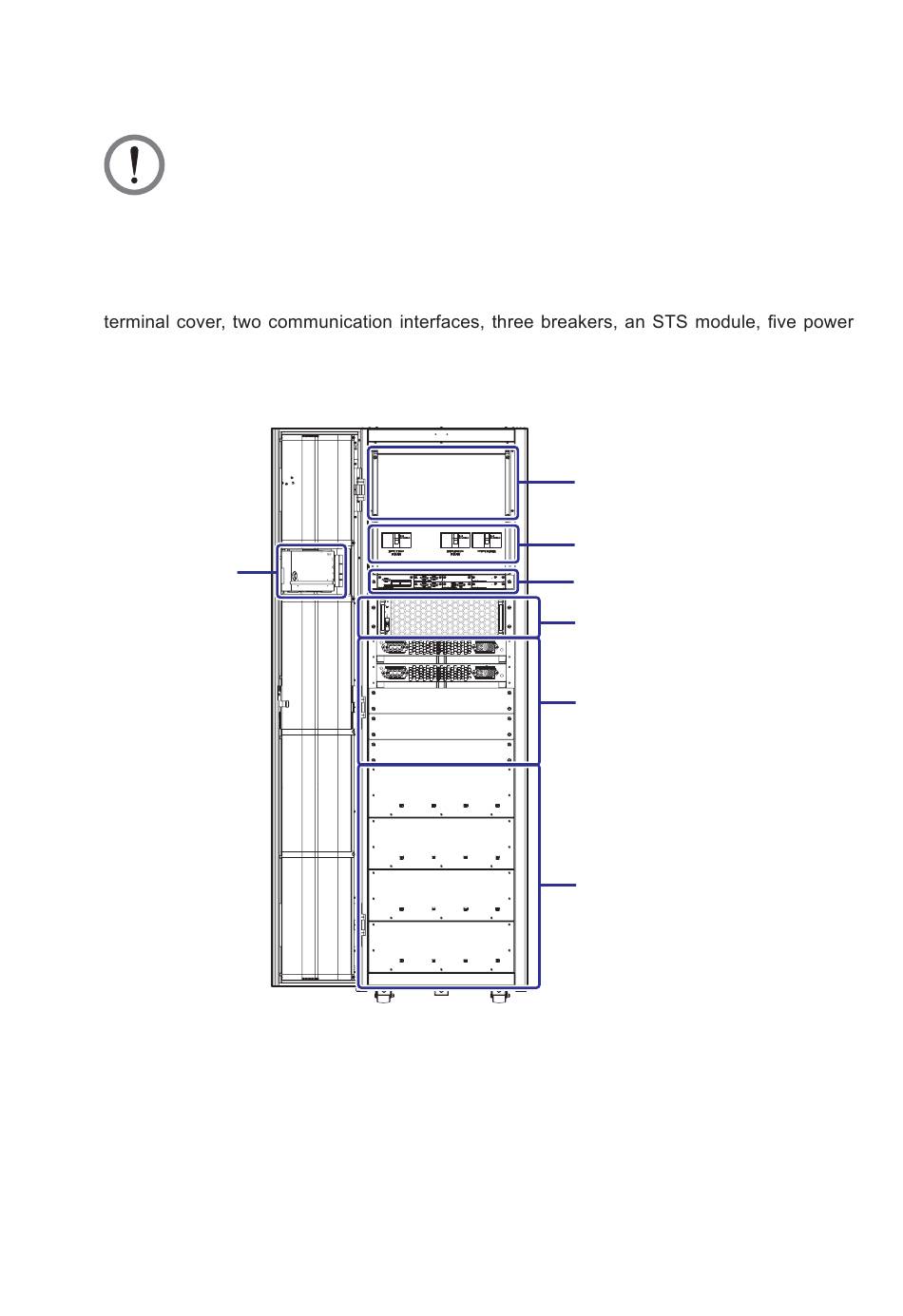

(Figure 2-4: UPS Internal View (Front View with Door Open))
Wiring Terminal Cover
Input/ Bypass, Manual
Bypass & Output Breakers
(from Left to Right)
Communication Interfaces
STS Module
Power Module Slots
Battery Module Slots
2-8
