Delta Modulon DPH Series User Manual page 171

Button

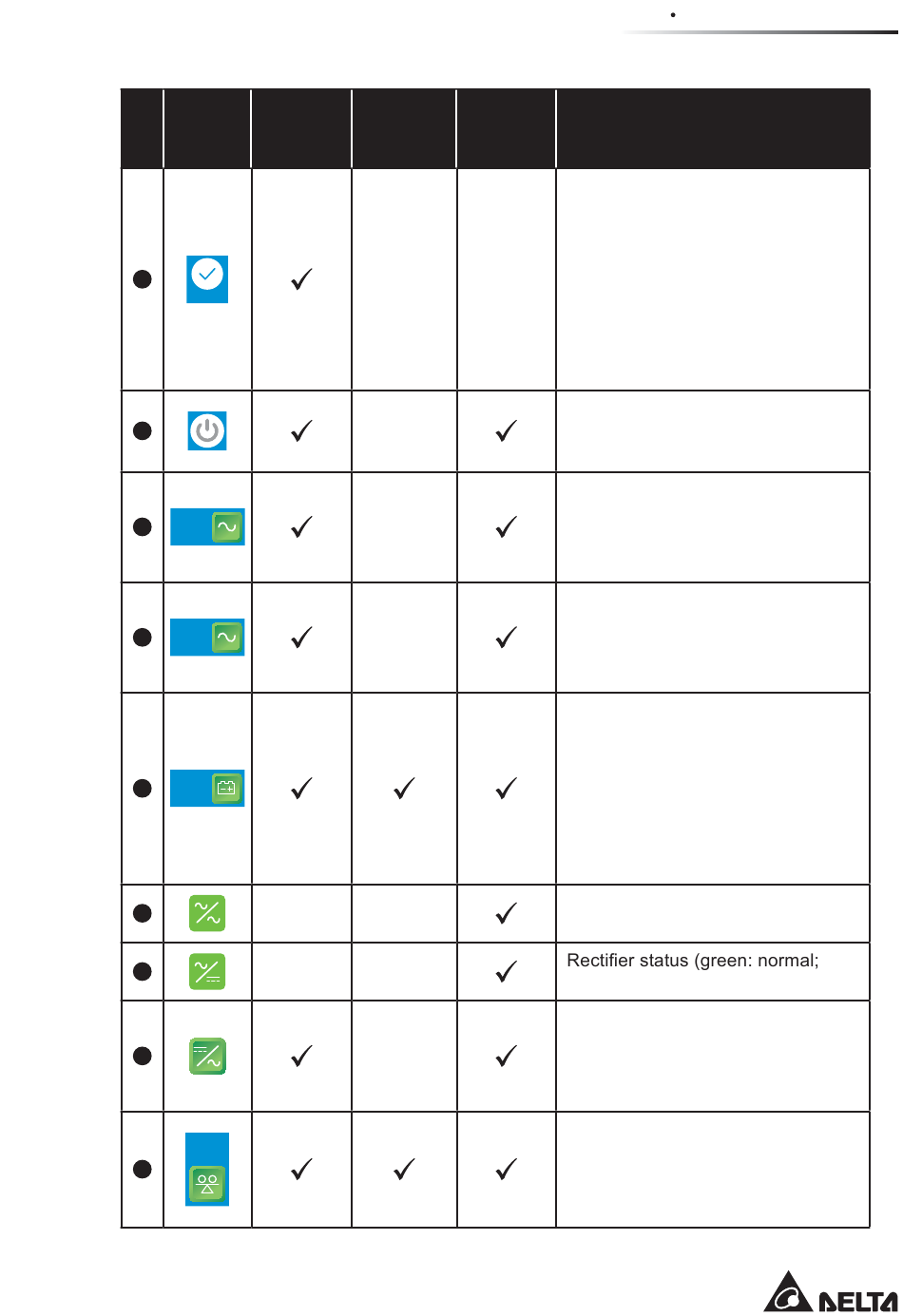

No. Icon/ Text Function
(Yes or No)
11
System Status
12
13
Bypass
14
Mains
15
90 %
5 mins
16
17
18
Load
30 %
19
Text/ Figure Symbol
Display Display
(Yes or No) (Yes or No)
7-9
7 LCD Display & Settings
Description
System status shortcut button.
Press the button to check the
status of STS module, power
module, battery module, parallel
communication card, system control
card and auxiliary power card.
Please refer to 7.8 Power Flow &
Summary & System Status for
more information.
ON/ OFF button. Please refer to
7.3 ON/ OFF Button for more
information.
1. Bypass input status (green:
normal; red: abnormal).
2. Bypass input screen shortcut
button
1. Main input status (green:
normal; red: abnormal).
2. Main input screen shortcut
button.
1. Battery status (green: normal;
red: abnormal).
2. Battery remaining capacity (%).
3. Battery remaining time
(minutes).
4. Battery status screen shortcut
button.
Bypass static switch status (green:
ON; gray: OFF).
gray: waiting or OFF).
1. Inverter status (green: normal;
gray: waiting or OFF).
2. Inverter output screen shortcut
button.
1. Output status (green: normal;
gray: no output).
2. Load capacity (%).
3. Output screen shortcut button.
