4. For the battery module slots (total: four), please follow on-site requirements to install
appropriate number of battery modules (optional) into the slots. Please refer to 5.9
Battery Module (Optional) for relevant information.
5. The UPS has three breakers, which are Input/ Bypass, Manual Bypass and Output
breakers. Please refer to Figure 2-5.

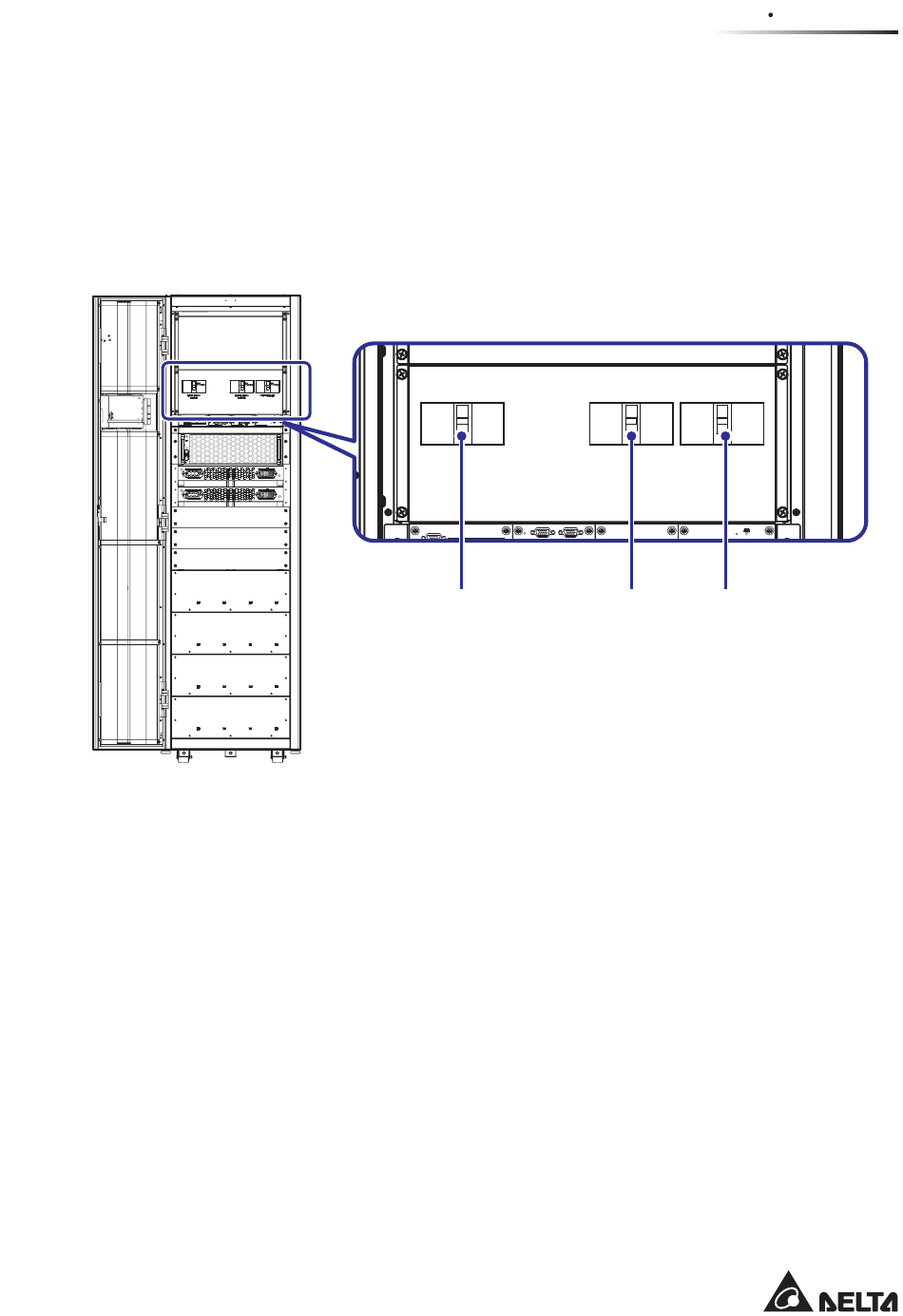

Internal View
(Front View with Door Open)
(Figure 2-5: Input/ Bypass, Manual Bypass & Output Breakers)
6. Please remove the wiring terminal cover (there are a total of four screws (see Figure 2-6)
to see the wiring terminals shown in Figure 2-7 ~ Figure 2-9.
FUJI
BW250EAG
INPUT / BYPASS
BREAKER
Input/ Bypass Manual Bypass
Breaker
2-9
2
FUJI FUJI
BW250EAG BW250EAG
MANUAL BYPASS OUTPUT BREAKER
BREAKER
Output
Breaker Breaker
