The LCD initial screen (see Figure 6-27) will appear within 40 seconds after the Input/
Bypass Breaker (Q1) is turned on.
6
After 20 seconds of LCD initialization, the LCD will enter the Main Screen. For the
Main Screen information, please refer to 7.6 Main Screen.
Now, each power module keeps running and its LED indicator remains green. After
each power module finishes establishing DC BUS voltage, the charger will start to
charge the batteries.
If the bypass AC source is within the normal range, the UPS will transfer to run in
bypass mode, the LCD screen will show as Figure 6-33 and the tri-color LED indicator
will illuminate yellow. For the location of the tri-color LED indicator, please refer to
Figure 2-11.
System Status
Modulon DPH Series

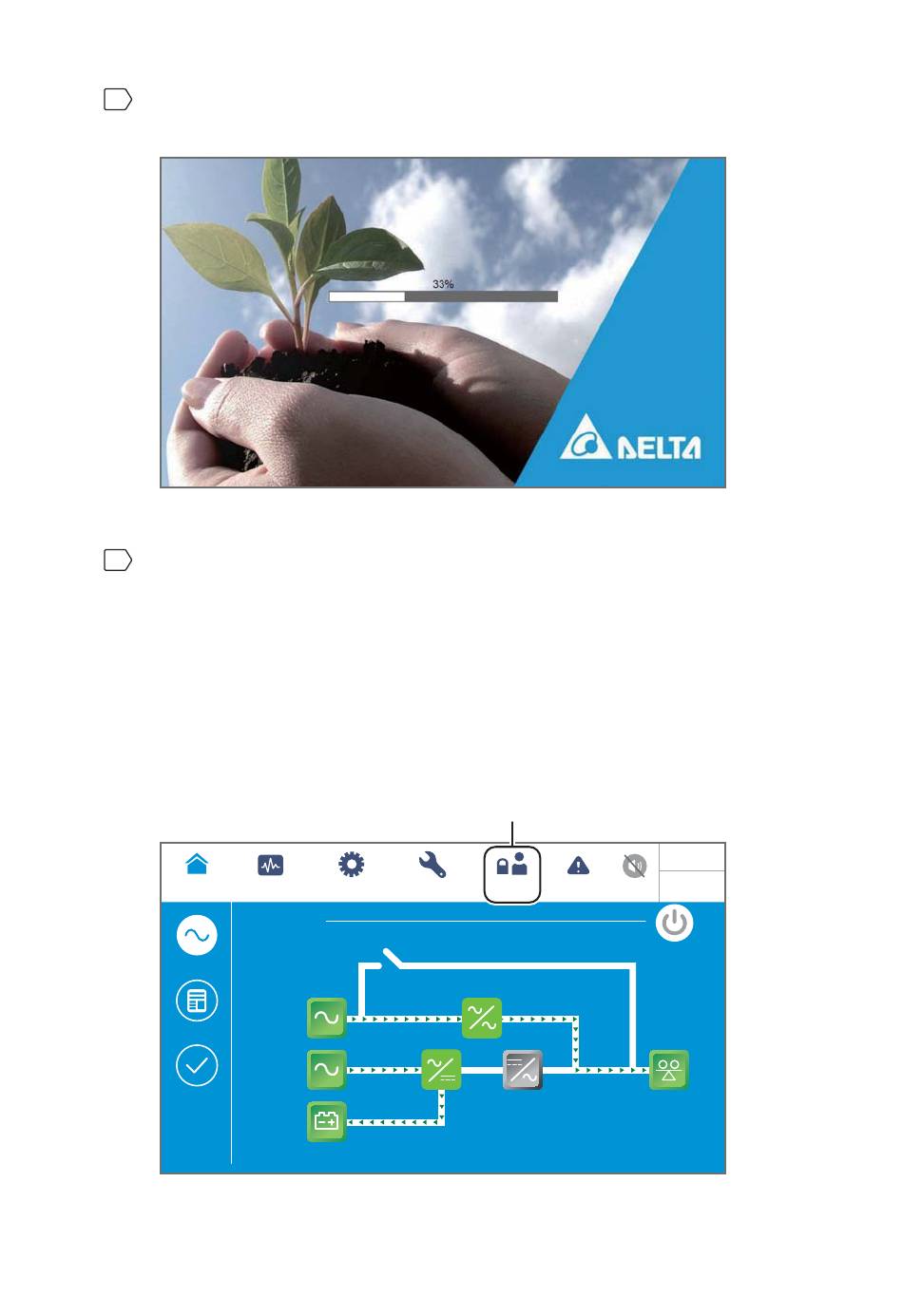

(Figure 6-27: LCD Initial Screen)
UPS-1.1 MEASUREMENT SETUP
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
90 %
5 mins
(Figure 6-28: Main Screen_ User Login)
User Login
MAINTENANCE LOG IN EVENT LOG
User
6-22
10:15
May 25,2018
Bypass
Load
30 %
