DRY CONTACT SETTING
Output Dry Contact
Output Dry Contact 1
Output Dry Contact 2
Output Dry Contact 3
Output Dry Contact 4
Output Dry Contact 5
Output Dry Contact 6
Modulon DPH Series
UPS-1.1
MEASUREMENT
SETUP
Dry Contact Setting
Event
1
None
2
None
3
None
None
4
None
5
None
6

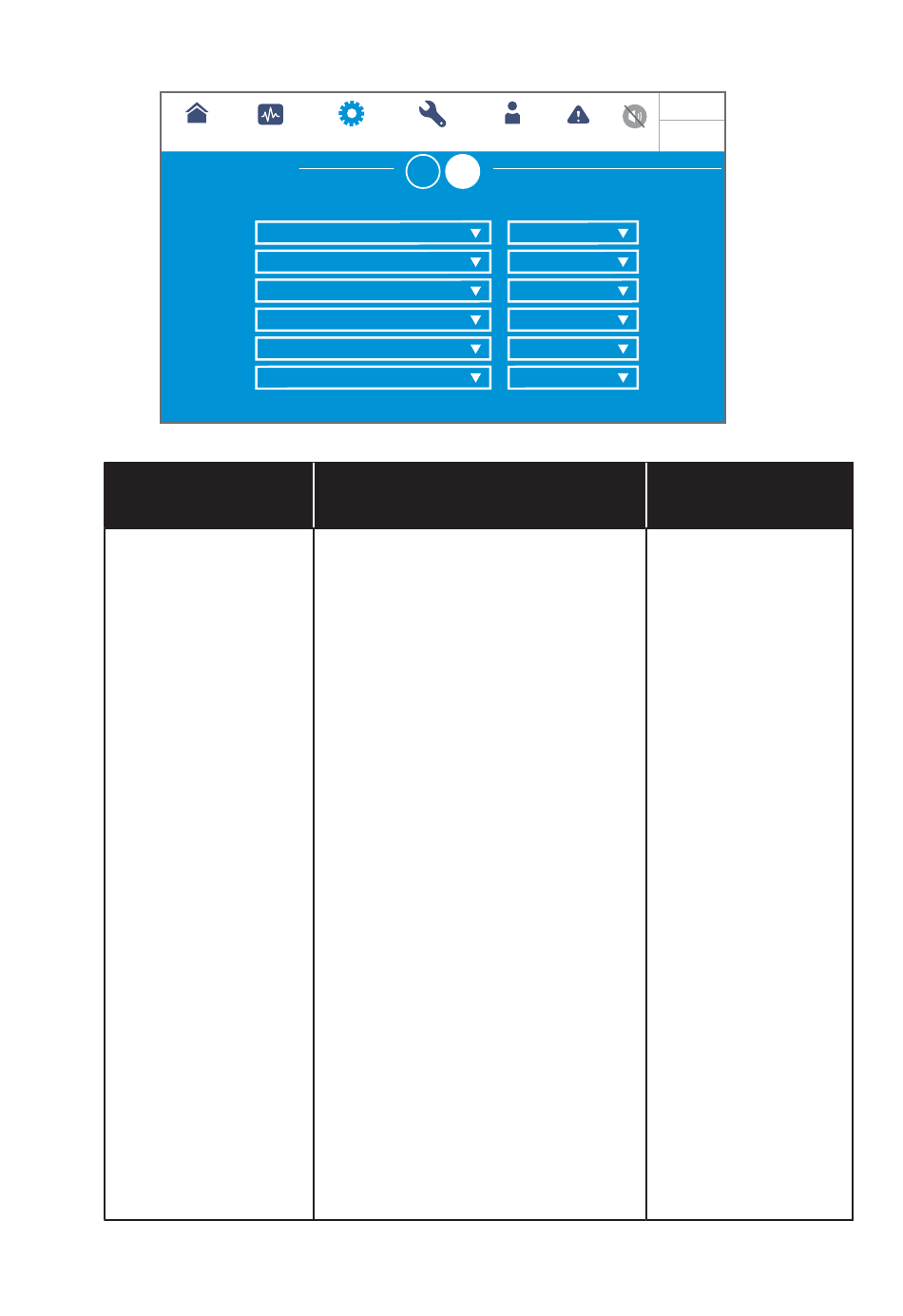

No.
You can select one of the following
events as the setting for each output
dry contact.
1. None
2. Load on inverter
3. Load on bypass
4. Load on battery
5. Battery low
6. Battery input abnormal
7. Battery test fail
8. Internal comm. fail
9. External parallel comm. fail (only
applicable to parallel application)
10. Output overload
11. EPO activated
12. Load on manual bypass
13. Battery over temperature
14. Output voltage abnormal
15. Battery need replacement
16. Bypass over temperature
17. Bypass static switch fault
18. UPS over temperature
19. Battery breaker shunt trip
20. Backfeed Protection
21. UPS general alarm
MAINTENANCE
LOG IN
EVENT LOG
Administrator
INPUT
OUTPUT
Type
Normally Open
Normally Open
Normally Open
Normally Open
Normally Open
Normally Open
Event Selection
7-30
10:15
May 25,2018
Bypass
Type
You can set up NO
(normally open) or
NC (normally closed)
for each output dry
contact.
