Delta Modulon DPH Series User Manual page 169

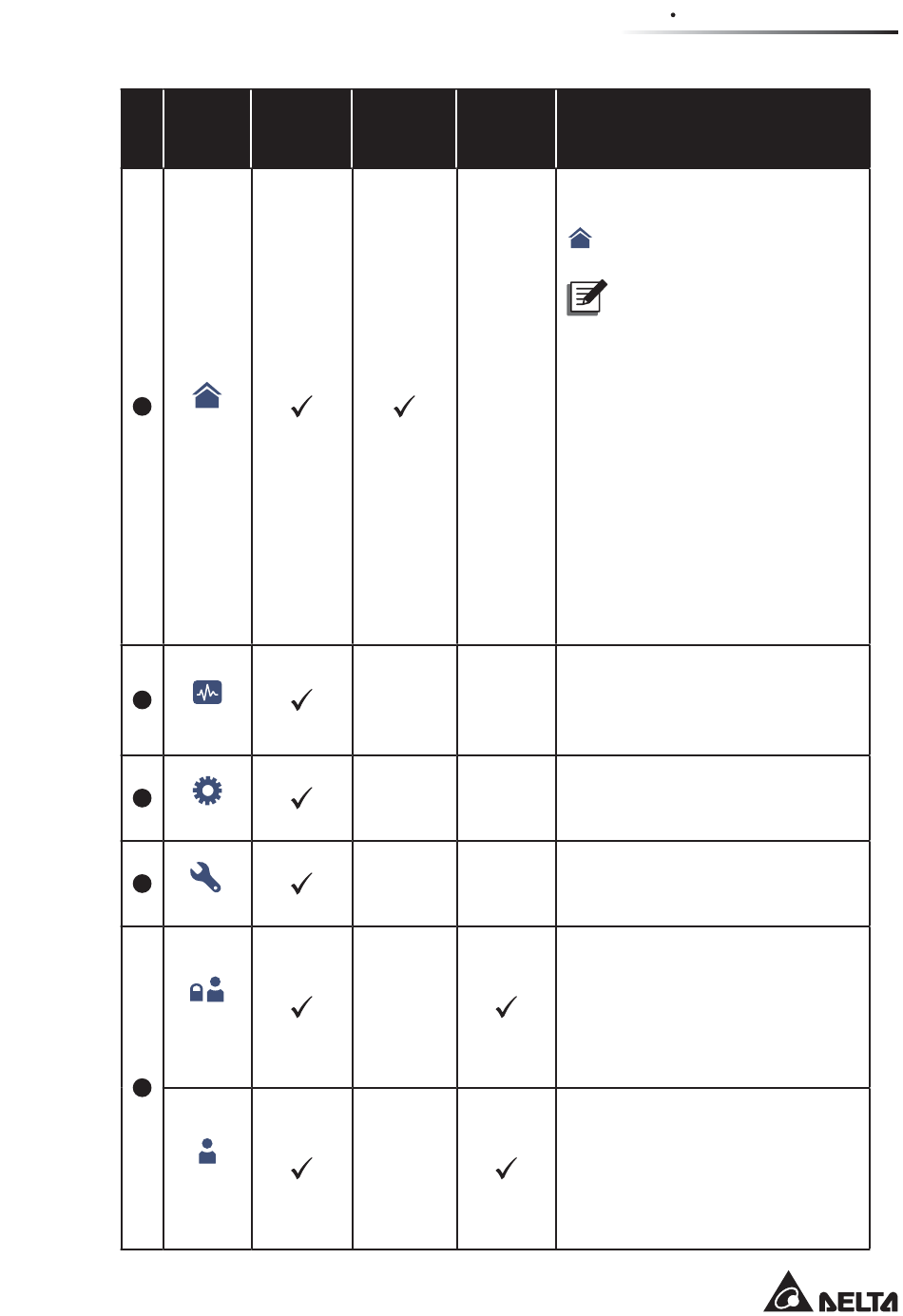

Button
No. Icon/ Text Function
(Yes or No)
1
UPS-1.1
2
MEASUREMENT
3
SETUP
4
MAINTENANCE
LOG IN
User
5
LOG IN
Administrator
Text/ Figure Symbol
Display Display
(Yes or No) (Yes or No)
7-7
7 LCD Display & Settings
Description
Main Screen shortcut button. The
No. shown below the icon
UPS-1.1
means the UPS's parallel group
ID and parallel ID.
NOTE:
If you parallel the UPSs,
press the button to choose
which UPS's Main Screen
that you want to check.
For the master UPS, you
can check its every status
and readings; for the slave
UPS, you can only check
its partial status and partial
readings. For UPS parallel
information and application,
please contact Delta service
personnel.
Measurement menu shortcut
button. Please refer to 7.9 Check
System Readings for more
information.
Setup menu shortcut button.
Please refer to 7.10 UPS Settings
for more information.
Maintenance menu shortcut button.
Please refer to 7.11 System
Maintenance for more information.
It means that you are in the
User login status. You can press
the button to change your login
permission. Please refer to
7.5 Password Entry for more
information.
It means that you are in the
Administrator login status. You
can press the button to change
your login permission. Please refer
to 7.5 Password Entry for more
information.
