Please log in as an Administrator. For the Administrator password, please contact
service personnel. After login, ensure that you are in the Administrator login status
(see Figure 6-23).
UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins

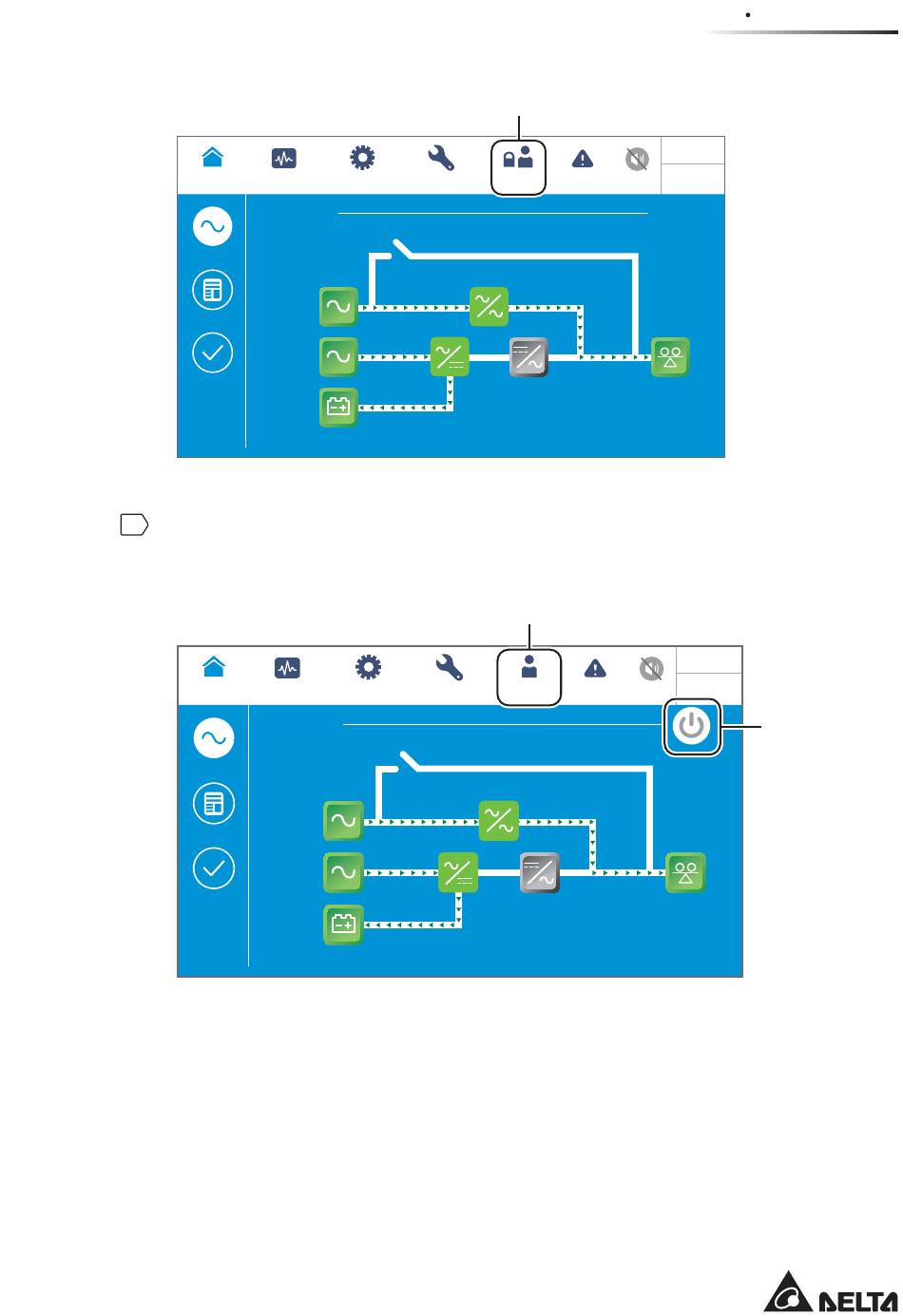

(Figure 6-23 : Main Screen_ Administrator Login & ON/ OFF Button Location)
