NOTE:
1. *
2. All unit No., UPS status, date, time, warning No., event No., load (%), battery
3. For how to turn on the LCD, please refer to 7.2 How to Turn on the LCD and 7.3
7.2

How to Turn on the LCD

To turn on the LCD, please follow the steps below:
1
a. Turn on the Input/ Bypass Breaker (Q1) and the LCD will be on and LCD initial
screen will appear; or
b. Turn on the external battery cabinet's breaker, open the UPS front door and press
any of the BATT. START buttons for 1 second. After that, the LCD will be on and
LCD initial screen will appear. Please refer to Figure 7-2 for the location of BATT.
START buttons and Figure 7-3 for the LCD initial screen.
(UPS Internal View with Door Open )
1
means that ADMINISTRATOR password is needed. For password informa-
tion, please refer to 7.5 Password Entry.
remaining time, user login, administrator login, etc. shown in the LCD diagrams
presented in 7. LCD Display and Settings are for reference only. Actual
readings depend on the operation of the UPS.
ON/ OFF Button.

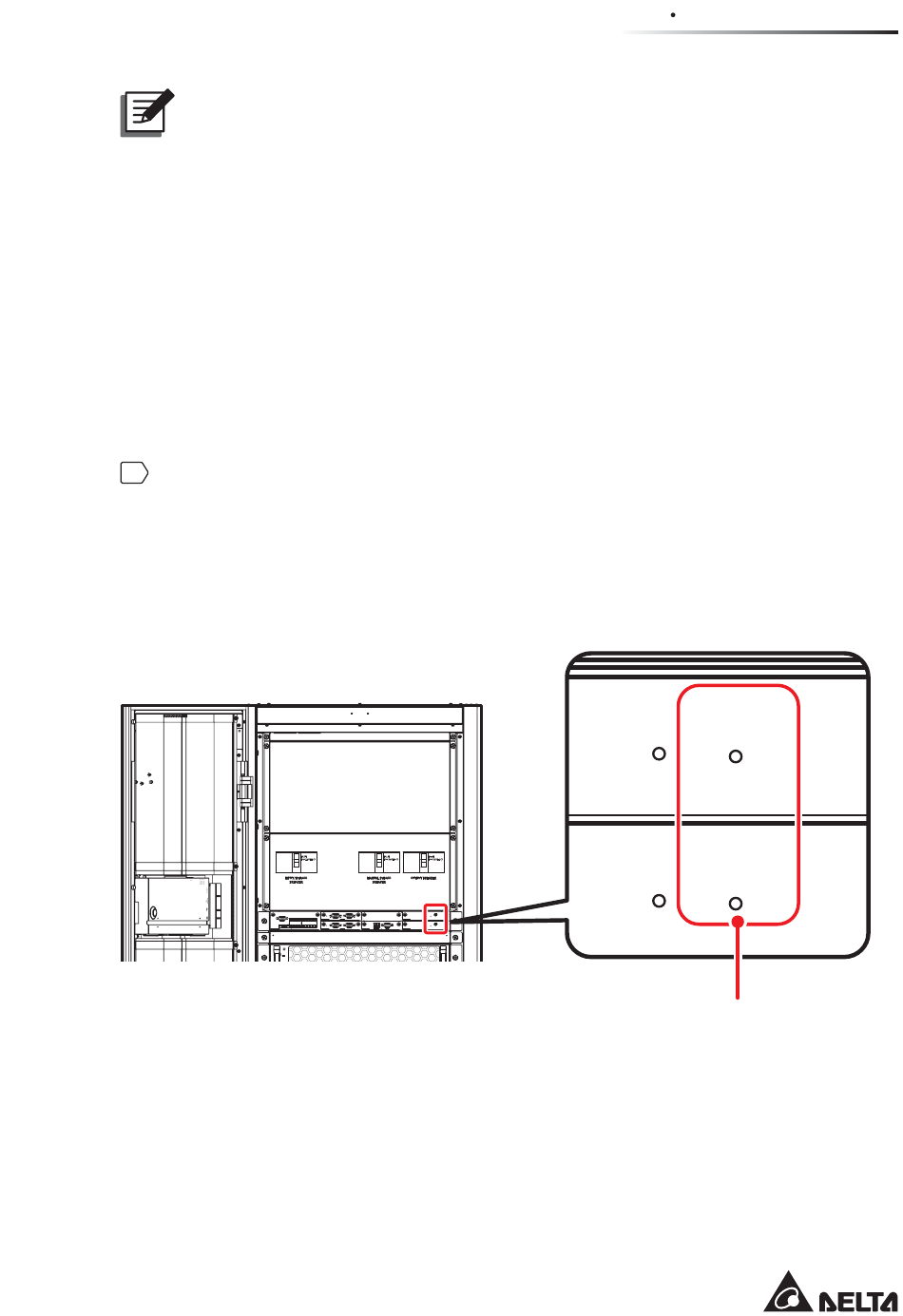

(Figure 7-2: BATT. START Button Location)
7-3
7 LCD Display & Settings
BATT.
START
BATT.
START
Battery Start Button x 2
