If the bypass AC source is within the normal range, the UPS will transfer to run in
bypass mode, the LCD screen will show as Figure 6-34 and the tri-color LED indicator
will illuminate yellow. For the location of the tri-color LED indicator, please refer to
Figure 2-11.
System Status
7
Please log in as an Administrator. For the Administrator password, please contact
service personnel. After login, ensure that you are in the Administrator login status.
Please refer to Figure 6-35.
System Status

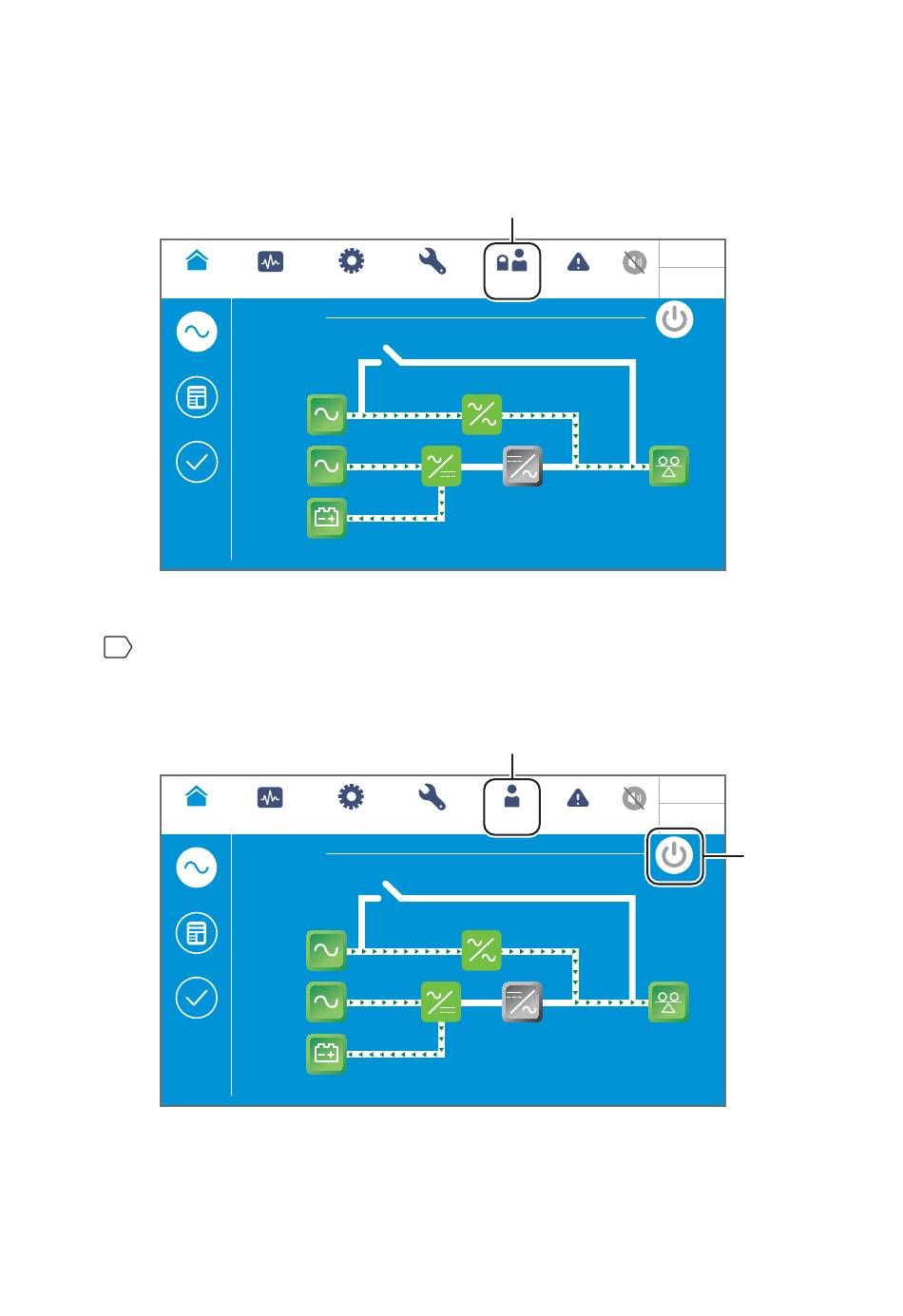

(Figure 6-35: Main Screen_ Administrator Login & ON/ OFF Button Location)
Modulon DPH Series
UPS-1.1 MEASUREMENT SETUP
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
90 %
5 mins
(Figure 6-34: Main Screen_ User Login)
UPS-1.1 MEASUREMENT SETUP
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
90 %
5 mins
User Login
MAINTENANCE LOG IN EVENT LOG
User
Administrator Login
MAINTENANCE LOG IN EVENT LOG
Administrator
6-26
10:15
May 25,2018
Bypass
Load
30 %
10:15
May 25,2018
Bypass
ON/ OFF
Button
Load
30 %
