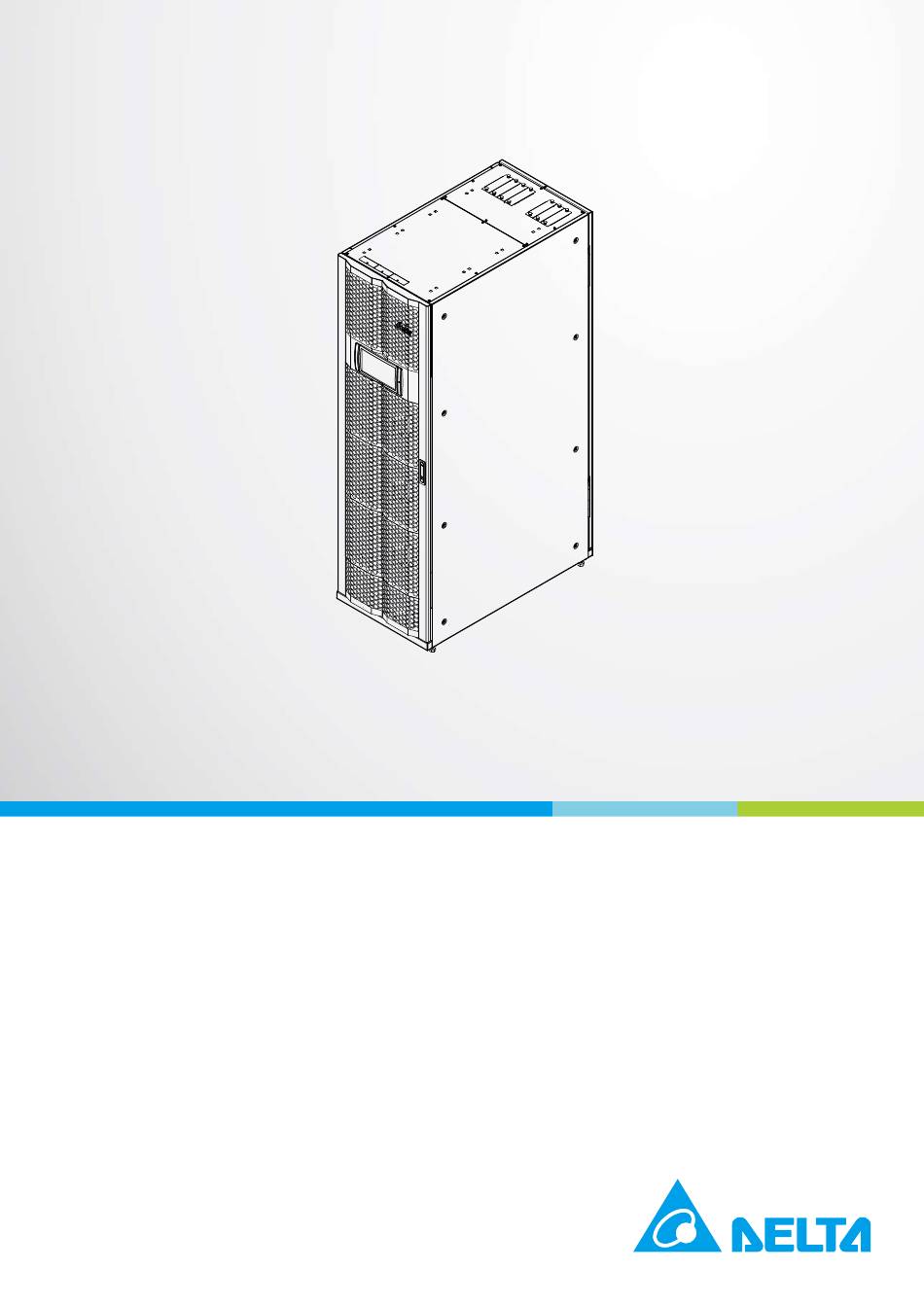

The power behind competitiveness
Delta UPS Modulon Family
DPH Series, Three Phase
80 kVA
User Manual
www.deltaww.com
