3.1.7 Green Mode_ Single Input_ Single Unit

To activate green mode, please refer to 6.2.7 Green Mode Start-up Procedures, 7.6 Main
Screen and 7.10.2 Mode Setting.
Green mode is the same as online mode, but the difference is that the system will
the UPS. For the green mode diagram, please see Figure 3-7. During green mode, the
UPS's tri-color LED illuminates green and the text 'Green' appears in the upper right corner
of the screen.
MAIN
Batteries
Modulon DPH Series
NOTE:
During frequency conversion mode, once the inverter shuts down, there is
no bypass output.
Q2
Q1

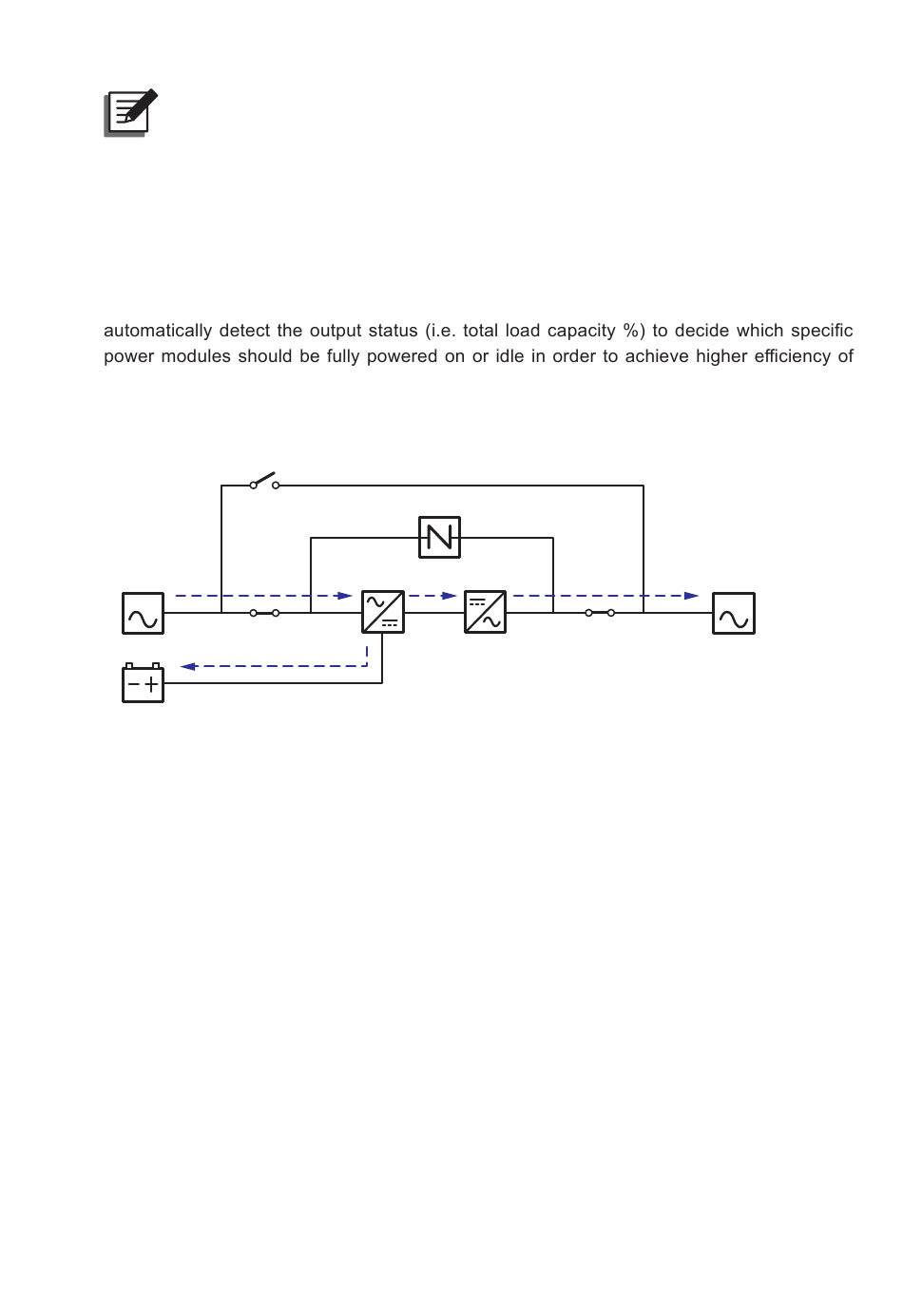

(Figure 3-7: Green Mode Diagram_ Single Input Single Unit)
Static Switch
Rectifier Inverter
3-6
LOAD
Q3
