UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins

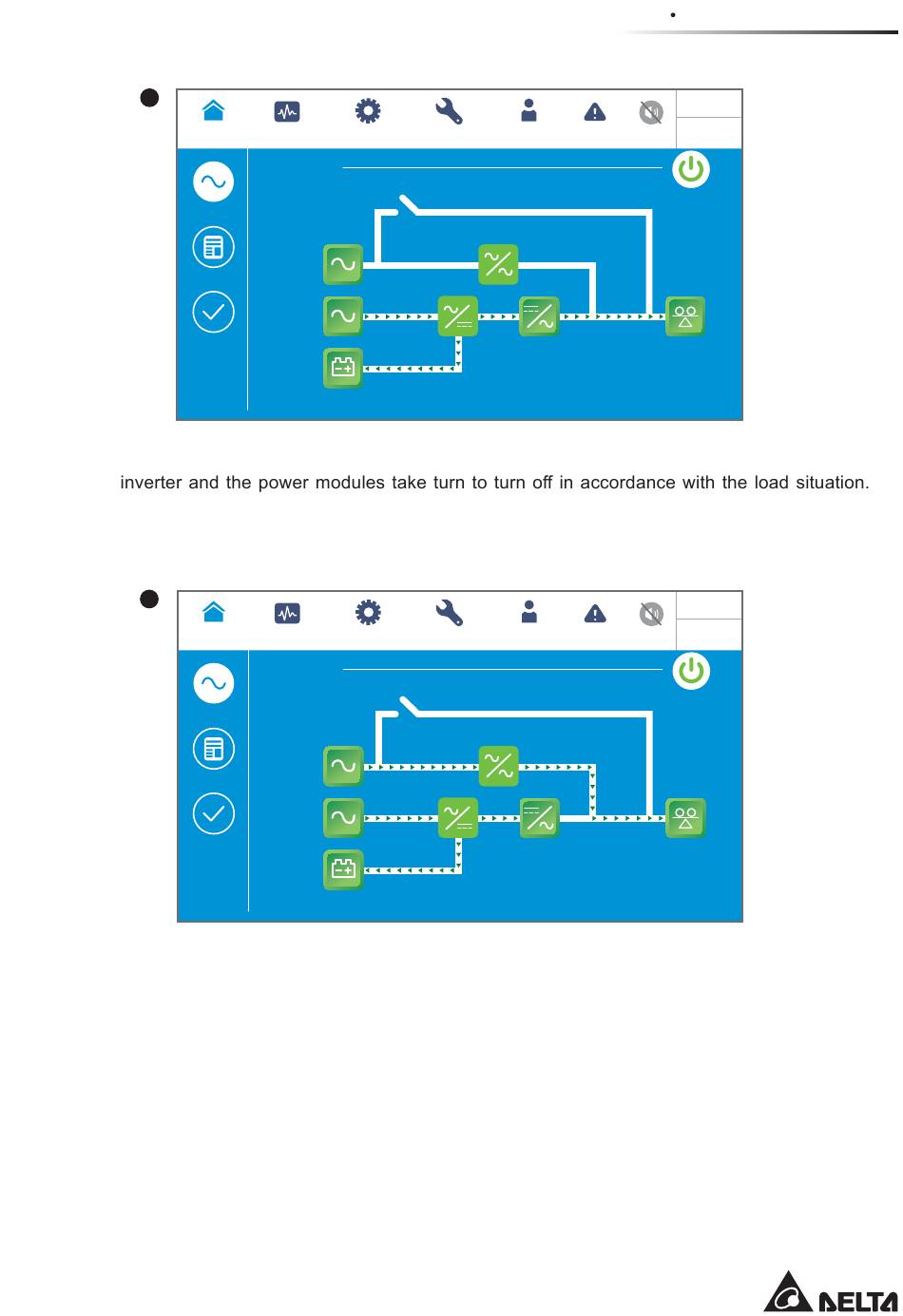

The screen above indicates that the UPS is in green mode. The loads are supplied by the
For green mode settings, please refer to 7.10.2 Mode Setting and 6.2.7 Green Mode
Start-up Procedures.
5
UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins
The screen above indicates that the UPS is in ECO mode. The inverter is in the ready-to-
power-on status, and the loads are supplied by the bypass. For ECO mode settings, please
refer to 7.10.2 Mode Setting and 6.2.5 ECO Mode Start-up Procedures.
