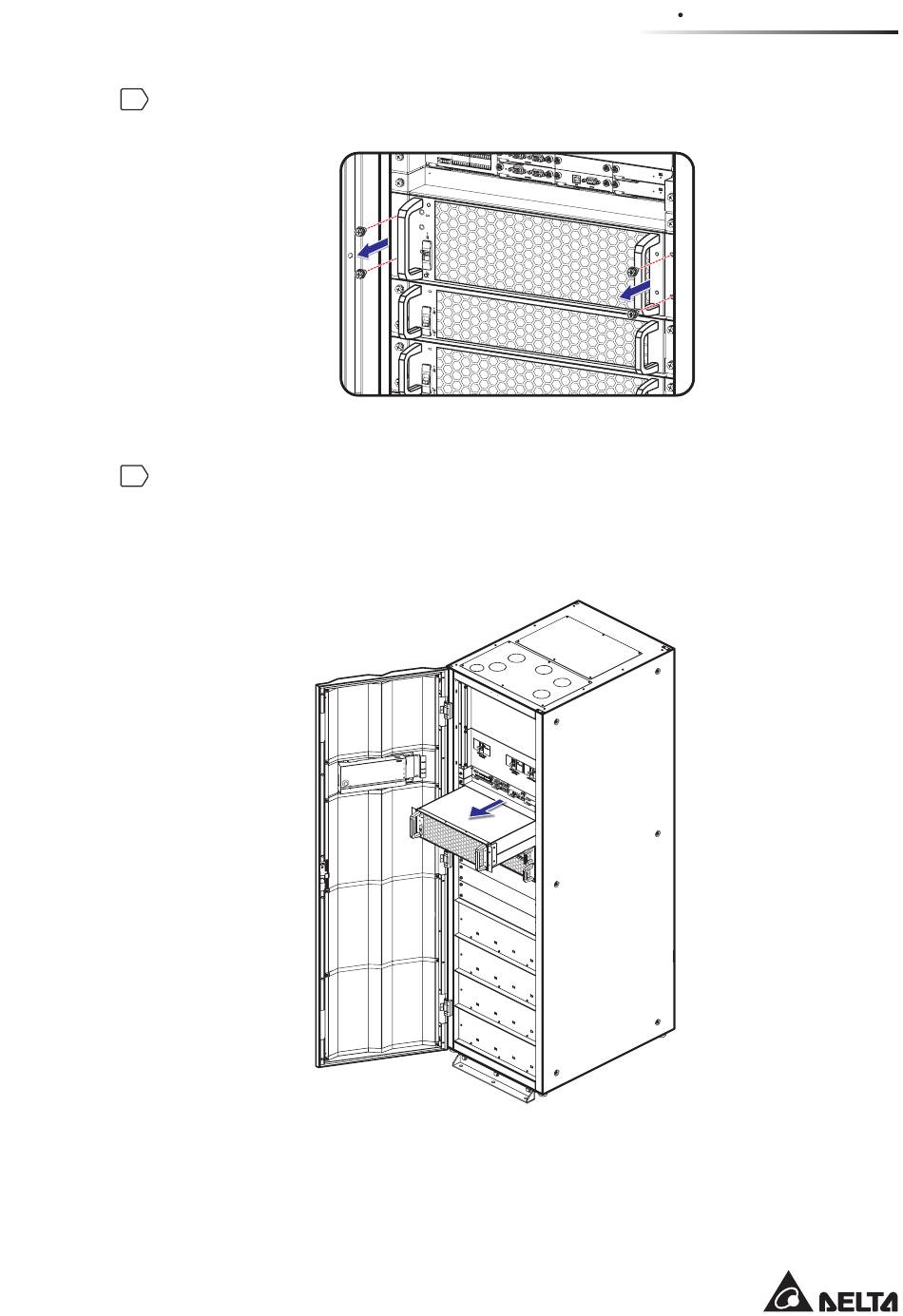

Unscrew the four screws shown in Figure 5-31.
3
Pull out the STS module from the slot (two people are required) (see Figure 5-32).
When the STS module cannot be pulled out any more, press the lock (see Figure 5-33)
on the left side of the STS module in order to continuously pull out the module from
the UPS cabinet.
(Figure 5-32: Remove the STS Module from the UPS Cabinet)
(Figure 5-31: Remove the Four Screws)
(UPS Front View with Door Open)
B A GND B A
GND
RESET MODBUS BMS
