3.3 Hot Standby Redundancy (Only for Dual Input & at
Least Two UPSs)
have a hot standby redundancy function. If you use two UPSs and wish them to work in hot
standby redundancy mode, please connect the output of UPS1 to the bypass AC source of
UPS 2. Please see Figure 3-28. For more information about the hot standby redundancy
application, please contact service personnel.
In normal condition, it is the UPS 2 inverter that supplies power to the critical loads. Both
UPS 1 & UPS 2 tri-color LEDs illuminate green.
When the UPS 2 inverter becomes abnormal, the UPS 2 will automatically transfer to
bypass mode and the UPS 1 inverter will supply power to the critical loads. Under such
circumstances, the UPS 1 tri-color LED illuminates green and the UPS 2 tri-color LED
illuminates yellow.
UPS 1
UPS 2

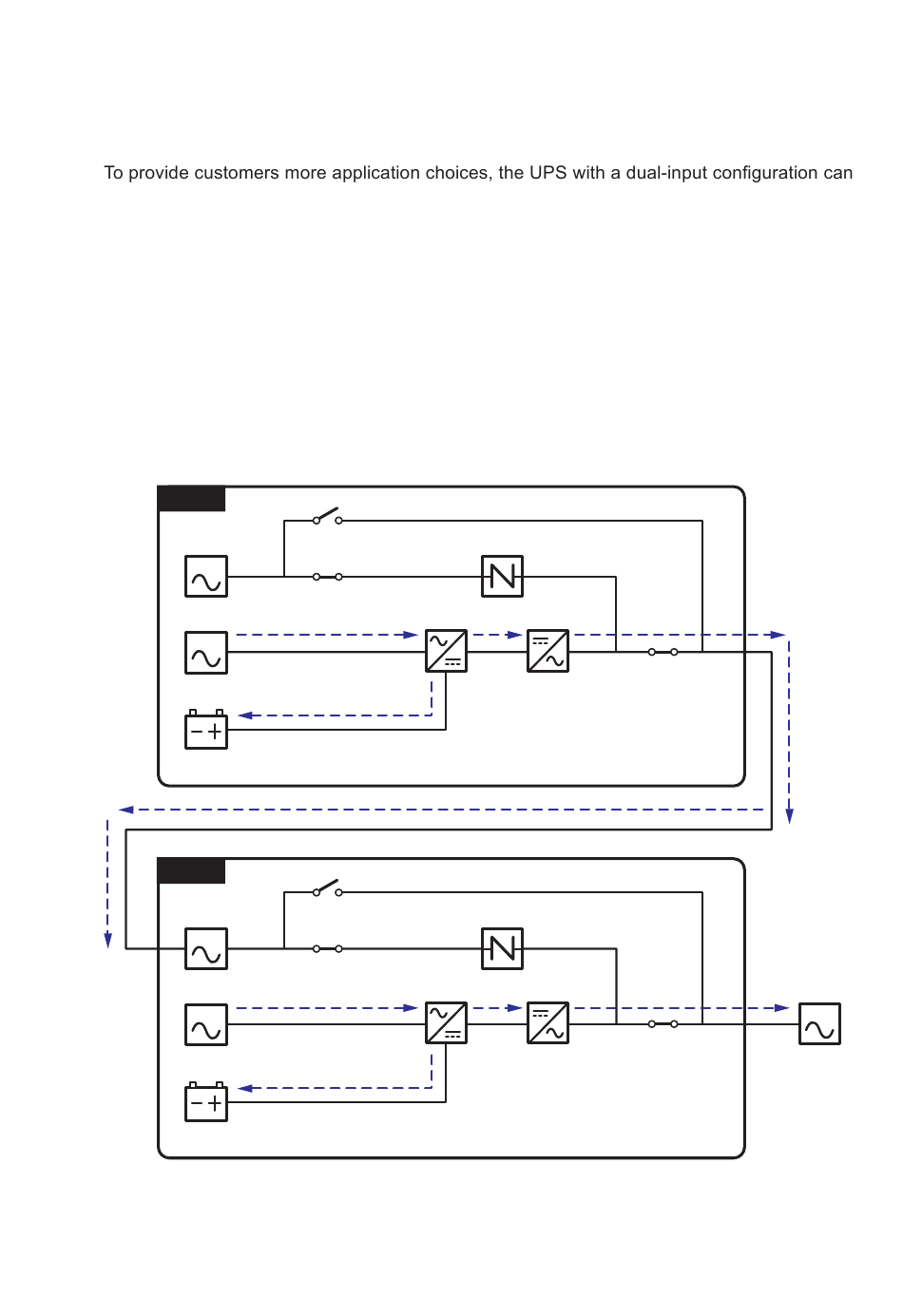

(Figure 3-28: Hot Standby Redundancy Diagram (only for Dual Input & at Least Two UPSs))
Modulon DPH Series
Q2
BYPA.
Q1
MAIN
Batteries
Q2
BYPA.
Q1
MAIN
Batteries
Static Switch
Rectifier Inverter
Static Switch
Rectifier Inverter
3-28
Q3
LOAD
Q3
