Use a 17mm socket wrench and three M10 screws
balance support on the pallet) to install the rear balance support (removed during the
unpacking process) at the rear of the UPS. Use the three expansion screws & nuts
UPS movement. Please see Figure 5-3.
M10 Screw

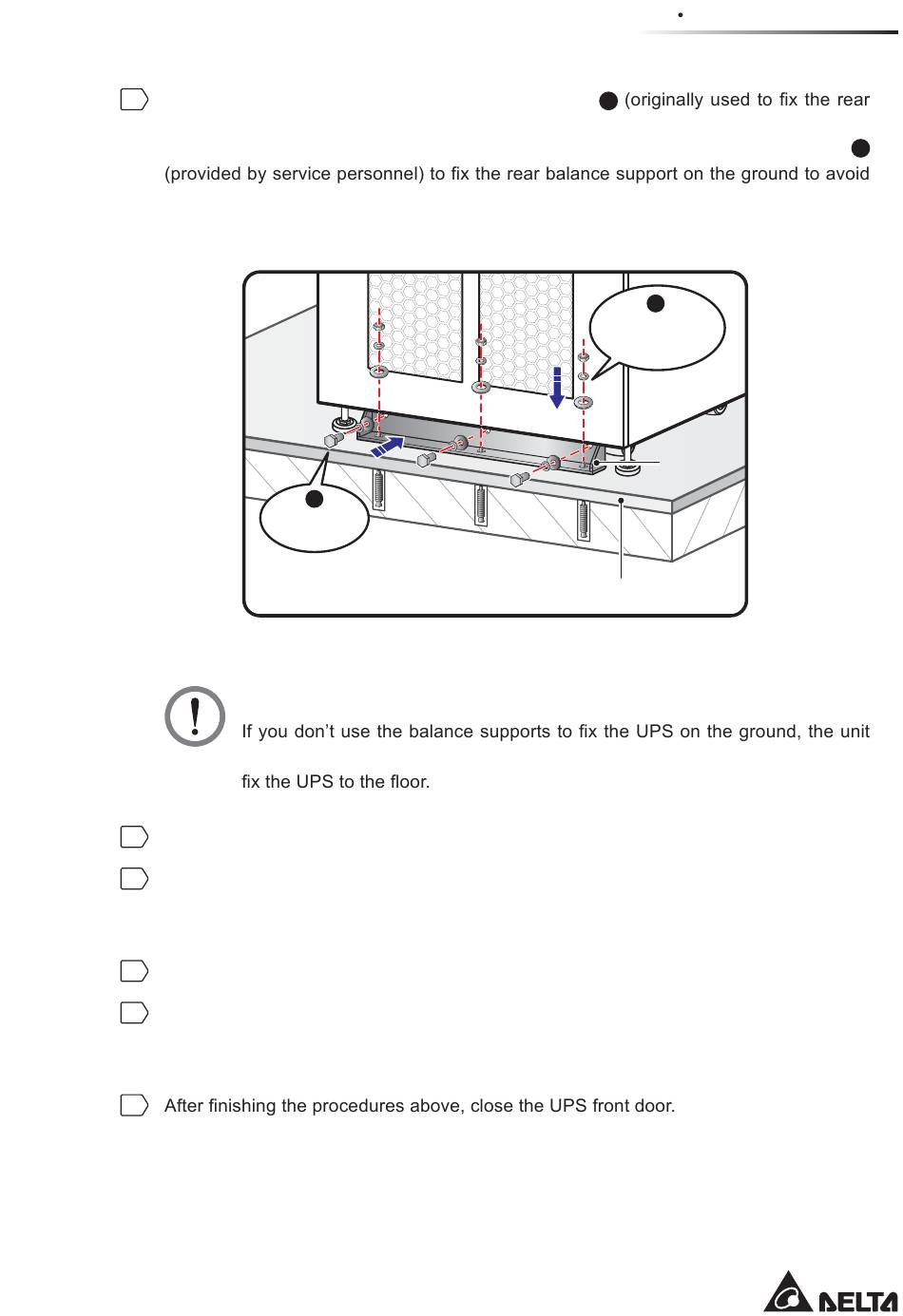

(Figure 5-3: Install the Balance Support at the Rear of the UPS)
WARNING:
might topple over. For safety concerns, please use the balance supports to
5
Follow 5.5 Wiring to perform wiring procedures.
6
If on-site requirements need to install the external battery cabinet (at maximum four),
follow 5.6 External Battery Cabinet Connection Warnings to install the external
battery cabinet.
7
Follow 5.8 Power Module (Optional) to install the power modules.
8
If on-site requirements need to install the battery modules (optional; at minimum four;
at maximum sixteen), follow 5.9 Battery Module (Optional) to install the battery
modules.
9
(Rear View)
1
X 3
5-5
5
Installation and Wiring
1
2
Expansion Screw
& Nut X 3
Balance
Support
Ground
2
