After selection of 'YES', the UPS will stop self-aging test and transfer to run in bypass
mode. At this moment, the tri-color LED indicator illuminates yellow and the following
screen appears. For the tri-color LED indicator location, please refer to Figure 2-11.
System Status
4
Please log in as an Administrator. For the Administrator password, please contact
service personnel. After login, ensure that you are in the Administrator login status
(see Figure 6-70).
System Status
Modulon DPH Series
UPS-1.1 MEASUREMENT SETUP
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
90 %
5 mins

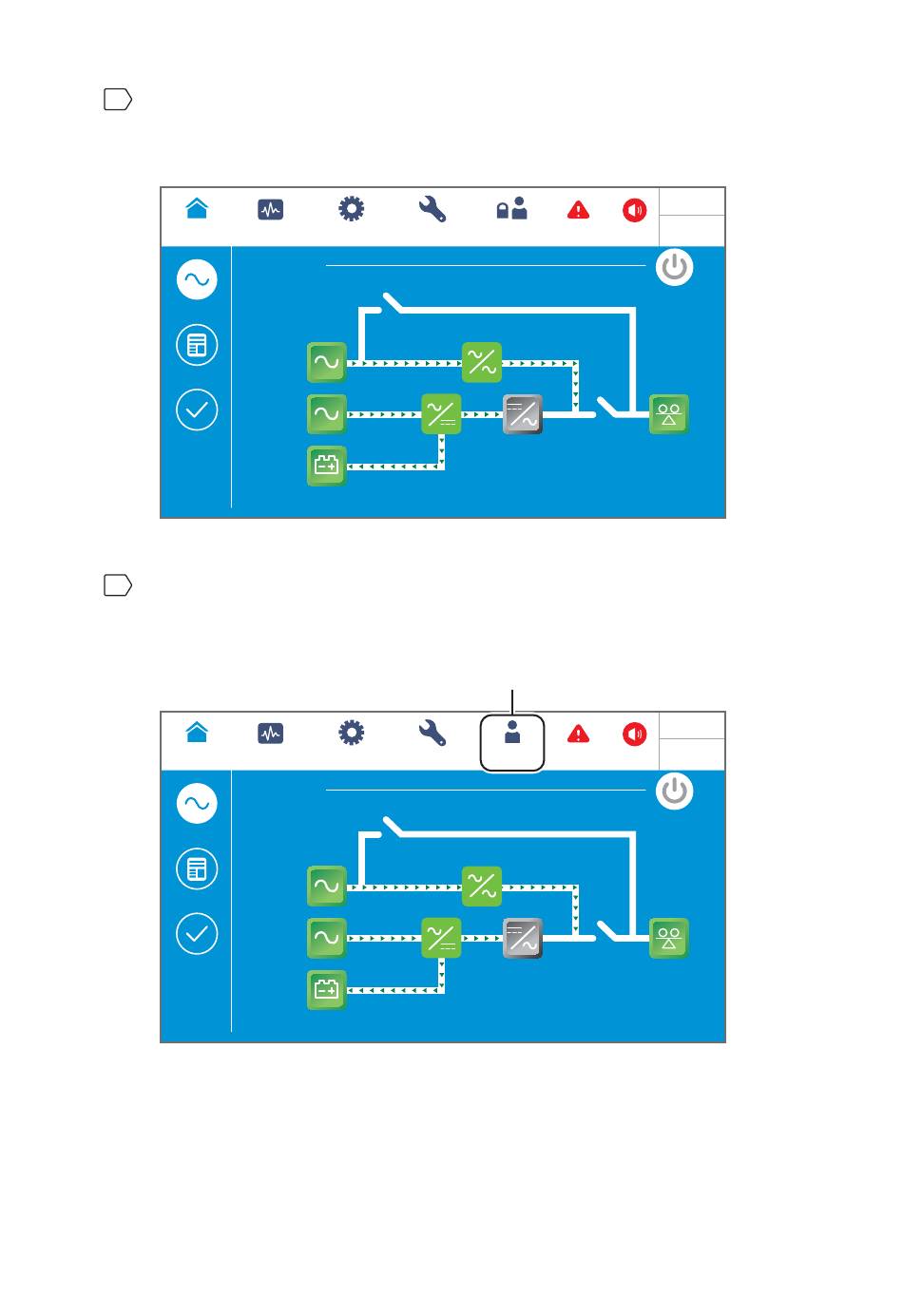

(Figure 6-69: Bypass Mode Screen )
UPS-1.1 MEASUREMENT SETUP
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
90 %
5 mins
(Figure 6-70 : Bypass Mode Screen_ Administrator Login)
