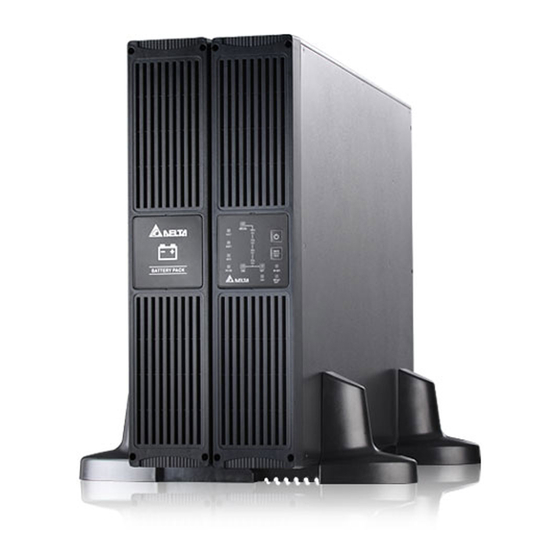

3. The UPS is available in 1kVA, 1.5kVA, 2kVA and 3kVA. Each model has internal batteries. 4. Only 3kVA model can be connected to a Delta external battery pack (optional). 5. The UPS can be used to power computers and associated peripheral devices, such as monitors, modems, cartridge tape drives, external hard drives, etc.
Page 6
2) Keep the UPS upright at all times and handle it with care. 3) Do not stack units. 4) Do not place any objects on the UPS, the Delta external battery pack or any other accessory associated with the UPS.
Page 7
Chapter 1 Important Safety Instructions 6. Do not use extension cords to connect the UPS to an AC outlet. 7. Do not plug the UPS input cord into its own output receptacles. Usage Warnings 1. Before usage, you must unpack the UPS and allow it to adjust to room temperature (20°C~25°C) for at least two hours to avoid moisture condensing inside the UPS.
Page 8
It is recommend that you recharge the internal batteries at least once every 3 months and each recharging time should not be less than 6 hours. If a Delta external battery pack is connected, the recharging time should not be less than 12 hours.
You must contact qualified service personnel if either of the following events occur: 1. Liquid is poured or splashed on the UPS or on the Delta external battery pack. 2. The UPS does not run normally after this User Manual is carefully observed.
Symbol Description BOOST LED BOOST BUCK LED BUCK ONLINE LED ONLINE LOAD LED LOAD BATT. LED BATT. S.W.F. (Site Wiring Fault) LED S.W.F. REPLACE BATT. LED REPLACE BATT. ON BATT. LED ON BATT. 100% Bar Graph LEDs 1.3 Standard Compliance CB Report (by TUV) EN 62040-1 EMC EN62040-2 C1...
The charging time must not be less than 6 hours each time. If a Delta external battery pack is connected, the recharging time should not be less than 12 hours.
UPS providing sine-wave quality power to your electronic equipment. Each kVA model has internal batteries, and only 3kVA model can be connected to a Delta external battery pack. The unit’s output power factor is 0.9 and its efficiency in online mode (full load) can reach at minimum 97% and 96% for 1/ 1.5kVA and 2/ 3kVA...
Chapter 2 Introduction For 1kVA/ 1.5kVA model: × × × × × Item Quantity 1 PC User’s Manual CD 1 PC Software CD-UPSentry 2012 1 PC Quick Guide 1 PC Bracket Ear 1 Set Output Cable 10A 1 PC Input Cable 10A 1 PC RS232 Cable 1 PC...
Page 14
For 2kVA/ 3kVA model: × × × × × Item Quantity 1 PC User’s Manual CD 1 PC Software CD-UPSentry 2012 1 PC Quick Guide 1 PC Bracket Ear 1 Set Input Cable 16A 1 PC Output Cable 16A 1 PC Output Cable 10A 1 PC Rail Kit...
REPO function Input breaker protection Generator compatible Hot swappable internal batteries and Delta external battery pack Battery deep discharging protection Intelligent monitor software connectivity through RS232 port or USB port Provides the following functions via configuration of UPSentry 2012 software (included in the provided CD), SNMP card (optional) or ModBus card (optional): 1.
2.4 Front Panel 100% OVERLOAD FAULT BOOST MUTE TEST BUCK ONLINE LOAD BATT. ON BATT. REPLACE S.W.F. BATT. (Figure 2-1 : Front Panel) No. Symbol Name Description ON/ OFF 1. When the UPS is OFF, press and hold this ON/ OFF Button button and release it when you hear one beep to turn on the UPS.
Page 17
Chapter 2 Introduction No. Symbol Name Description MUTE/ 1. When the UPS is ON and runs in online mode, press MUTE TEST TEST and hold this MUTE/ TEST button and release it Button when you hear four beeps to let the UPS perform a 10-second self test.
Page 18
No. Symbol Name Description BATT. 1. LED On : Green. BATT. 2. Illuminates to indicate the battery capacity status. For battery remaining capacity (%), please check Bar Graph LEDs. S.W.F. 1. LED On : Red . S.W.F. (Site Wiring 2. Illuminates when the UPS detects a site-wiring Fault) LED problem (e.g.
Page 19
Chapter 2 Introduction No. Symbol Name Description 100% Bar Graph 5. When the total load is 75%~100% of the rated LEDs capacity, 25% LED, 50% LED and 75% LED will illuminate and 100% LED will flash. 6. When the total load is ≧ 100% of the rated capacity, all Bar Graph LEDs will illuminate.
2.5 Rear Panel 1kVA / 1.5kVA 250Vac REPO INPUT BREAKER SMART SLOT RS232 AC INPUT (Figure 2-2: 1kVA / 1.5kVA Rear Panel) No. Item Function REPO Port Shuts down the UPS completely. Please see 5.2 Oth- er Operating Details for more information. USB Port Communication interface port.
Page 21
Chapter 2 Introduction 2kVA 250Vac REPO INPUT SMART SLOT BREAKER RS232 AC INPUT AC OUTPUT Imax. 16A (Figure 2-3 : 2kVA Rear Panel) No. Item Function REPO Port Shuts down the UPS completely. Please see 5.2 Oth- er Operating Details for more information. USB Port Communication interface port.
Page 22
Output Outlet Connects to the loads. (16A) Ground Terminal For UPS grounding. External Battery Connects to a Delta external battery pack. Please see Pack Connector 4.1 Delta External Battery Pack Connection for de- tailed information. Output Outlets Connect to the loads.
1. Before installation, please read Chapter 1 : Important Safety Instructions thoroughly. 2. Only 3kVA UPS can be connected to a Delta external battery pack. 3. Only qualified service personnel can perform installation. If you want to install the UPS and the Delta external battery pack by yourself, installation must be under the supervision of qualified service personnel.
3.2 Rack Mounting the UPS or the Delta External Battery Pack (Optional) You can rack-mount the UPS and the Delta external battery pack (only applicable for 3kVA model) in four-post frames. The UPS and the Delta external battery pack use identical mounting kits and their mounting procedures are the same.
Chapter 3 Installation (Figure 3-2 : Adjust the Rails and Tighten the Nuts) Use the provided eight screws and eight washers to attach the rails to your rack. See Figure 3-3. (Figure 3-3 : Attach the Rails to Your Rack) Insert the UPS into the rack and tighten the provided four screws.
3.3 Tower Mounting the UPS or the Delta External Battery Pack (Optional) You can mount the UPS or the Delta external battery pack (only applicable for 3kVA model) in an upright position by following the procedures below. The UPS and the Delta external battery pack use identical mounting kits and their mounting procedures are the same.
Page 27
Chapter 3 Installation Operation Panel Cable (Figure 3-6 : Push the Backside of the Operation Panel) Rotate the operation panel 90° clockwise and reinstall it back into the front plastic panel . Replace the front plastic panel and make sure the four screws are tightly fixed .
Page 28
Carefully lift the UPS upright (at least two people are required) with the Delta logo shown on the operation panel facing up. See Figure 3-9. 90˚ (Figure 3-9: Place the UPS Upright) Place the UPS inside the tower stands (at least two people are required).
4. Calculate the power consumption of the connected loads to ensure that an overload condition will not occur. 5. Only 3kVA UPS can be connected to a Delta external battery pack. If you plan to connect a Delta external battery pack to a 3kVA UPS, please connect the battery pack to the UPS before UPS connection to the input power.
Page 30
Please see the following figure for the rear view of the Delta external battery pack. 80Vdc DC BREAKER Battery Delta External Breaker Cable Battery Pack (Figure 4-1 : Delta External Battery Pack Rear View) To connect a Delta external battery pack, follow the steps below: Set the battery pack’s DC breaker to the OFF position.
NOTE : 1. The UPS will charge its internal batteries and the Delta external battery pack (if the Delta external battery pack is connected and its circuit breaker is turned on) whenever the UPS is connected to an AC source. There is an acceptable AC voltage present.
Chapter 5 : Operation 5.1 Operation Modes Online Mode During online mode, the ONLINE LED (green) and the LOAD LED (green) il- luminate. If loads are connected to the UPS, the Bar Graph LEDs (green) will illuminate or flash to indicate the occupied rated capacity (%). For information about the Bar Graph LEDs, please refer to 2.4 Front Panel.
Page 33
Chapter 5 Operation or ModBus card (optional). For manual battery test (only applicable for online mode), please press and hold the MUTE/ TEST button ( ) and release it when MUTE TEST you hear four beeps to let the UPS perform a 10-second self test. 5.
8. Input Breaker : 1) In Online Mode : When an over current issue occurs, the input breaker on the rear of the UPS will automatically activate and the unit will transfer to battery mode. After the abnormal issue is solved, press this input breaker and the unit will automatically switch back to online mode (you don’t need to press the ON/ OFF button ( ) to start up the UPS).
Chapter 5 Operation 5.5 UPS Self Test 1. If the UPS is first turned on with AC applied, the unit will perform a 5-second self- test. 2. When the UPS is ON and runs in online mode, press and hold the MUTE/ TEST button ( ), release it when you hear four beeps and the UPS performs a 10- MUTE...
Chapter 6 : Communication Interfaces NOTE : The UPS can still function properly without making the connections below. The M series UPS’s communication interfaces include an RS232 port, a USB port and a smart slot. Please refer to 2.5 Rear Panel for their locations. You can use all of the communication interfaces at the same time and it won’t influence each interface’s function.
Page 37
Chapter 6 Communication Interfaces RS232 Other Pin Applications : Alarm Signal & Remote Shutdown Condition Action The signal activates when the battery capacity is below Battery Low 1 the pre-alarm threshold. The signal activates when the mains voltage at the UPS input is not present or the mains voltage is out of the AC Fail tolerance range.
No. Item Function Tower Stands Sustain the UPS vertically. Delta External Provides external batteries that let the UPS supply power Battery Pack to the loads connected when a power failure occurs. EnviroProbe Monitors temperature, humidity and other conditions in a room environment.
When the UPS needs to be stored for an extended period of time, the batteries must be recharged once every three months and the charging time must not be less than 6 hours each time. If a Delta external battery pack is connected, the charging time should not be less than 12 hours.
Delta service personnel: Is the mains voltage present at the UPS input? Is the input breaker tripped? 2. Please have the following information ready if you would like to contact the Delta service personnel: Unit information including model, serial number, etc.
Page 41
REPLACE BATT. LED runtime. doesn’t illuminate. The Delta exter- If a Delta external battery pack is nal battery pack’s used, check if the DC breaker is DC breaker is not turned on. turned on.
Page 42
NO. Problem Possible Cause Solution 10 No communi- Wrong connection Check whether the connection cation between cable is used. cable is correct or not. the UPS and The connection Connect the communication cable your PC cable is not firmly firmly. connected.
Page 44
CB Report (by TUV) Compli- Certification EN 62040-1 ance EMC EN62040-2 C1 Delta External Battery Pack (Optional and Only Applicable for 3 kVA Model) Dimensions (W × D × H ) 440 × 429.4 × 88.5 mm Weight 23.3 kg Nominal Voltage...
Appendix 2 Warranty Appendix 2 : Warranty Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship within the warranty period. If the product has any failure problem within the warranty period, Seller will repair or replace the product at its sole discretion according to the failure situation.
