After selection of 'YES', the UPS will shut down the inverter, terminate each power
module's output and let the bypass AC source supply power. If the bypass AC source
is abnormal, there is a risk of output interruption and the connected critical loads won't
be protected. At this moment, each power module keeps charging the batteries, the
tri-color LED indicator illuminates yellow and the following screen appears. For the tri-
color LED indicator location, please refer to Figure 2-11.
System Status
4
Please log in as an Administrator. For the Administrator password, please contact
service personnel. After login, ensure that you are in the Administrator login status
(see Figure 6-55).
System Status
Modulon DPH Series
UPS-1.1 MEASUREMENT SETUP
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
90 %
5 mins

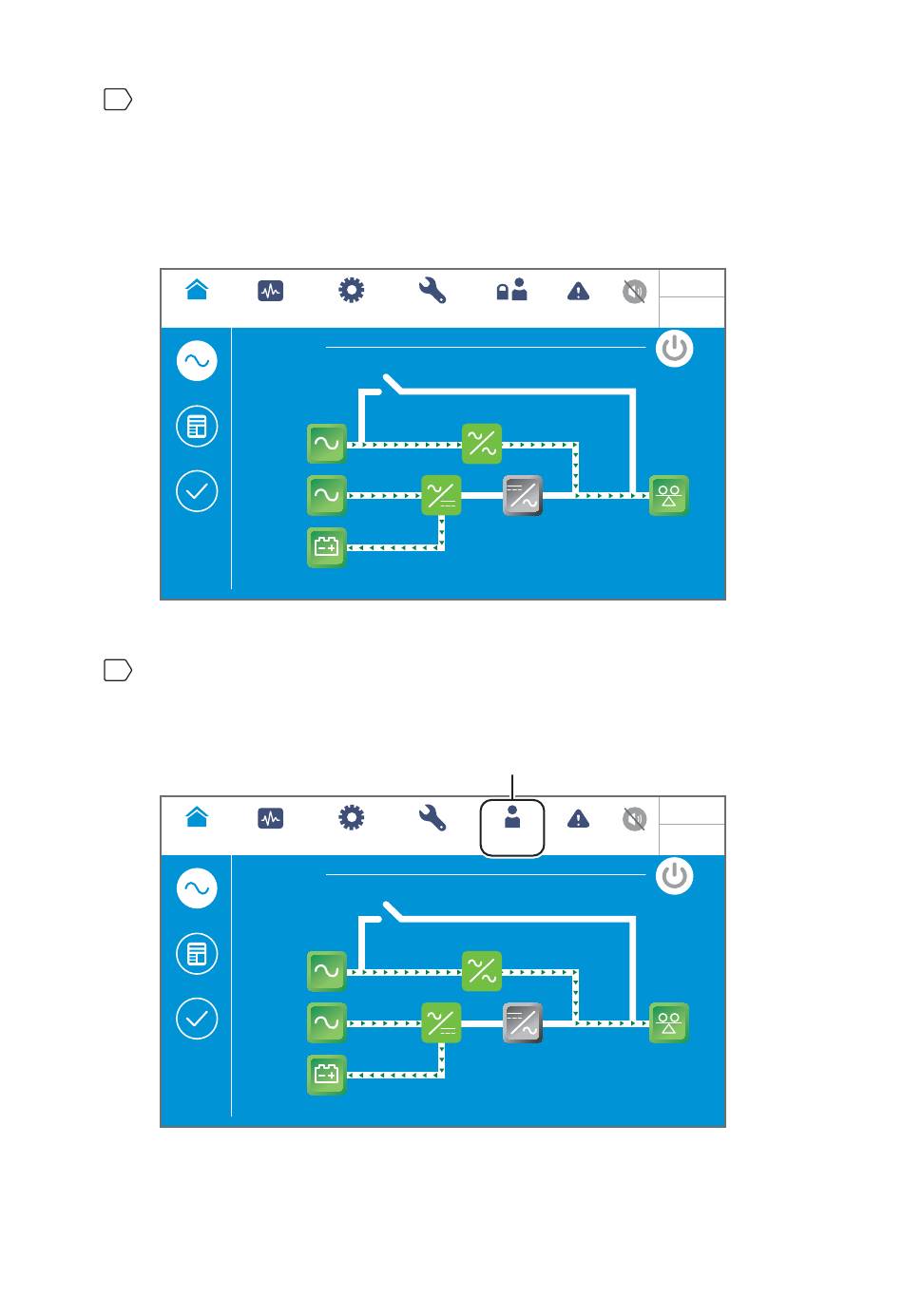

(Figure 6-54: Bypass Mode Screen)
UPS-1.1 MEASUREMENT SETUP
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
90 %
5 mins
(Figure 6-55 : Bypass Mode Screen_ Administrator Login)
