9 Press the ON/ OFF button (
if you want to power on the inverter. Please select 'YES'.
UPS-1.1 MEASUREMENT
Power Flow
10
After selection of 'YES' to start up the inverter, each power module will start up and
perform self-inspection. At the same time, the system begins synchronization with the
bypass AC source. After the self-inspection is completed, the UPS will automatically
transfer to run in energy recycle mode and perform self-aging test. Now, the tri-color
LED indicator illuminates yellow and the following screen appears. For the tri-color
LED indicator location, please refer to Figure 2-11.
UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins
) once and the following screen will pop up to ask you
SETUP MAINTENANCE
POWER ON ?
Yes

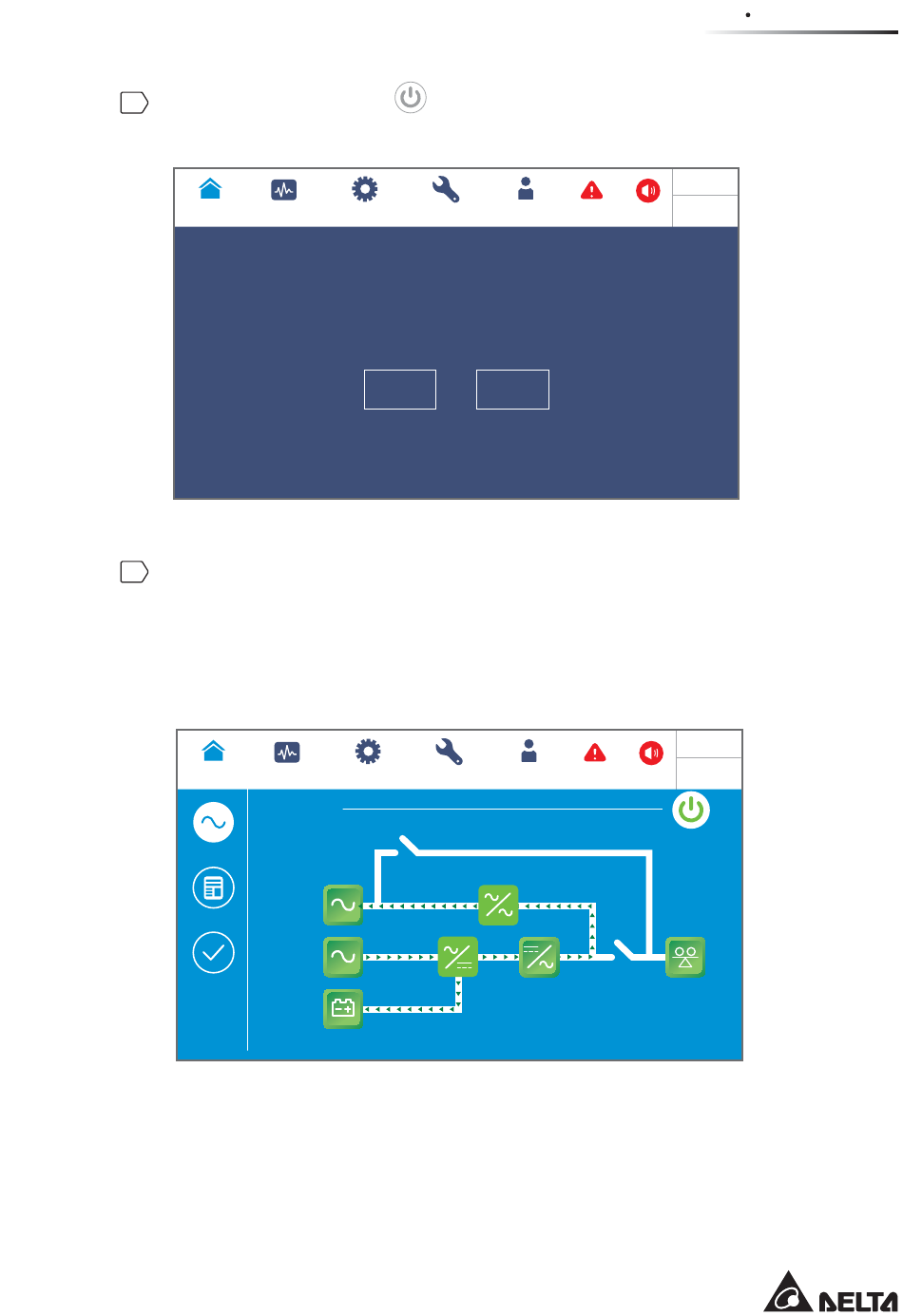

(Figure 6-43: Power On Reminder Screen)
SETUP MAINTENANCE
(Figure 6-44: Energy Recycle Mode Screen)
