UPS 1
MAIN
Batteries
UPS 2
MAIN
Batteries

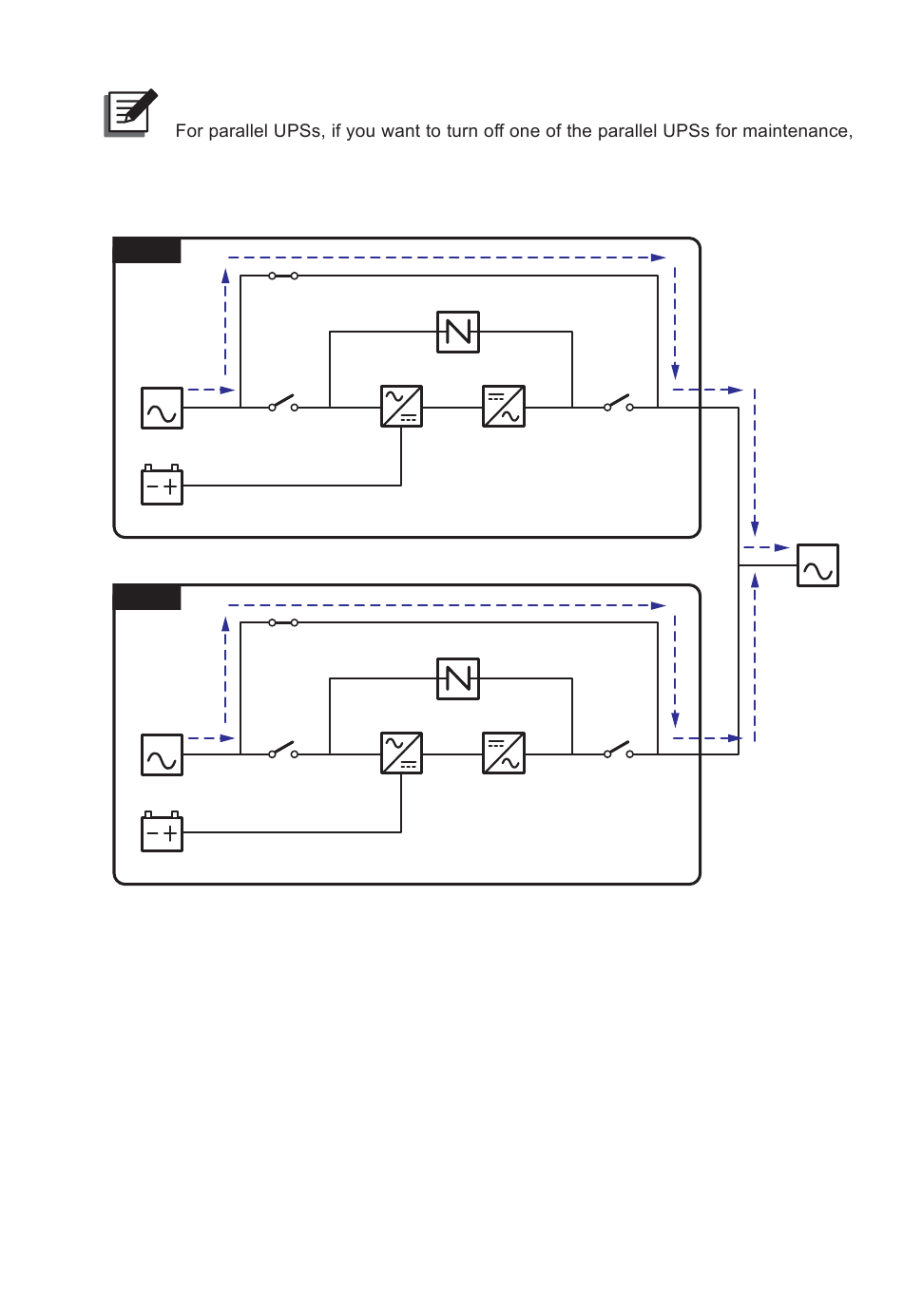

(Figure 3-12: Manual Bypass Mode Diagram_ Single Input Parallel Units)
Modulon DPH Series
NOTE:
please make sure the connected critical loads will not exceed the remaining
parallel unit's total capacity.
Q2
Q1
Q2
Q1
Static Switch
Rectifier
Inverter
Static Switch
Rectifier
Inverter
3-12
Q3
Q3
LOAD
