2.1

General Overview

The DPH series UPS, a three-phase four-wire online uninterruptible power supply, is a
dedicated design for data centers and factory facilities. The unit not only adopts advanced
IGBT technology to provide high quality, low noise, pure and uninterruptible output power
to the connected loads, but also applies the latest design of DSP digital control technology
and highest quality components.
The UPS supports high efficient operation modes and its modular and hot-swappable
design makes maintenance easy and quick. You can add power modules (optional)
according to on-site applications to expand overall system capacity, which realizes a highly
cost-effective solution to your power requirements and produces greater electric power
The unit provides diversified communication interfaces and has built-in SNMP and
MODBUS cards for the user to facilitate remote control and management. You can parallel
UPS units to increase the system capacity and redundancy and enhance the unit's
availability and reliability.
2.2

Package Inspection

External
During UPS transportation, some unpredictable situations might occur. It is recomm-
ended that you inspect the UPS exterior packaging. If you notice any damage, please
immediately contact the dealer from whom you purchased the unit.
Internal
1. Check the rating label attached to the UPS and make sure the device No. and
capacity match what you ordered.
2. Examine if any parts are loose or damaged.

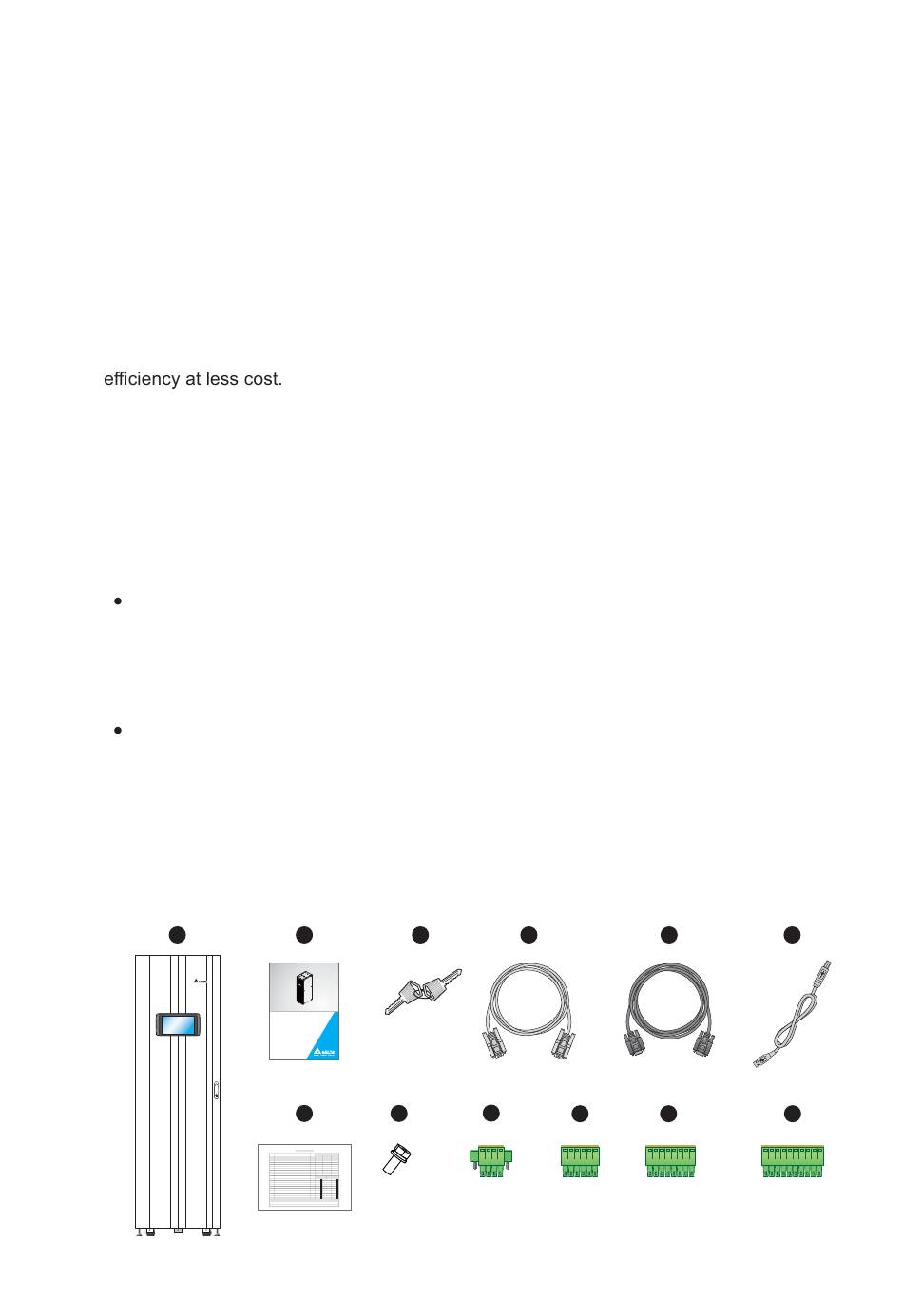

3 The UPS package contains the following items. Please check if any items are
missing.
1
Modulon DPH Series
2 3
The power behind competitiveness
Delta UPS - Modulon Family
DPH Series, Three Phase
15-60 kVA
User Manual
www.deltapowersolutions.com
7 8
UPS Test Report
M o d l e N a m : e Serial No: T e t s D t a : e
Test Result
NO. Test Item Unit
R phase S phase T phase
1 Mains/bypass input voltage V ac ×18
2 Mains/bypass input frequency Hz
AC mode output voltage (no load) V
3 ac
4 AC mode output voltage (full R load) V
ac
5 AC mode output current (full R load) A
6 AC mode output frequency Hz
7 AC mode output power (full R load) kW
8 DC mode output voltage (no load) V
ac
9 DC mode output voltage (full R load) V
ac
10 DC mode output frequency Hz
Positive Negative
11 Charger voltage V DC
O e v - r o l d a o r p e t t c o i n e t ( t s t a 1 2 6 ~ 1 5 0 % ) - Pass Fail N/A
12
13 Ipeak current circuit protection test - Pass Fail N/A
14 Transfer test from normal model to back-up mode - Pass Fail N/A
15 Transfer test from back-up model to normal mode - Pass Fail N/A
16 Transfer test from normal model to bypass mode - Pass Fail N/A
17 Transfer test from bypass model to normal mode - Pass Fail N/A
18 Functionality of RS-232 - Pass Fail N/A
19 Functionality of SNMP slot - Pass Fail N/A
20 LCD display check - Pass Fail N/A
21 Accessary check - Pass Fail N/A
22 Outlook check - Pass Fail N/A
SYS FW REV:
INV FW REV: PFC FW REV: LCM FW REV:
(for DPS) (for DPS) (for DPS)
Tested by: Certified By:
2-2
4
9
10
5 6
11 12
×2
×2
