Delta Modulon DPH Series User Manual page 79

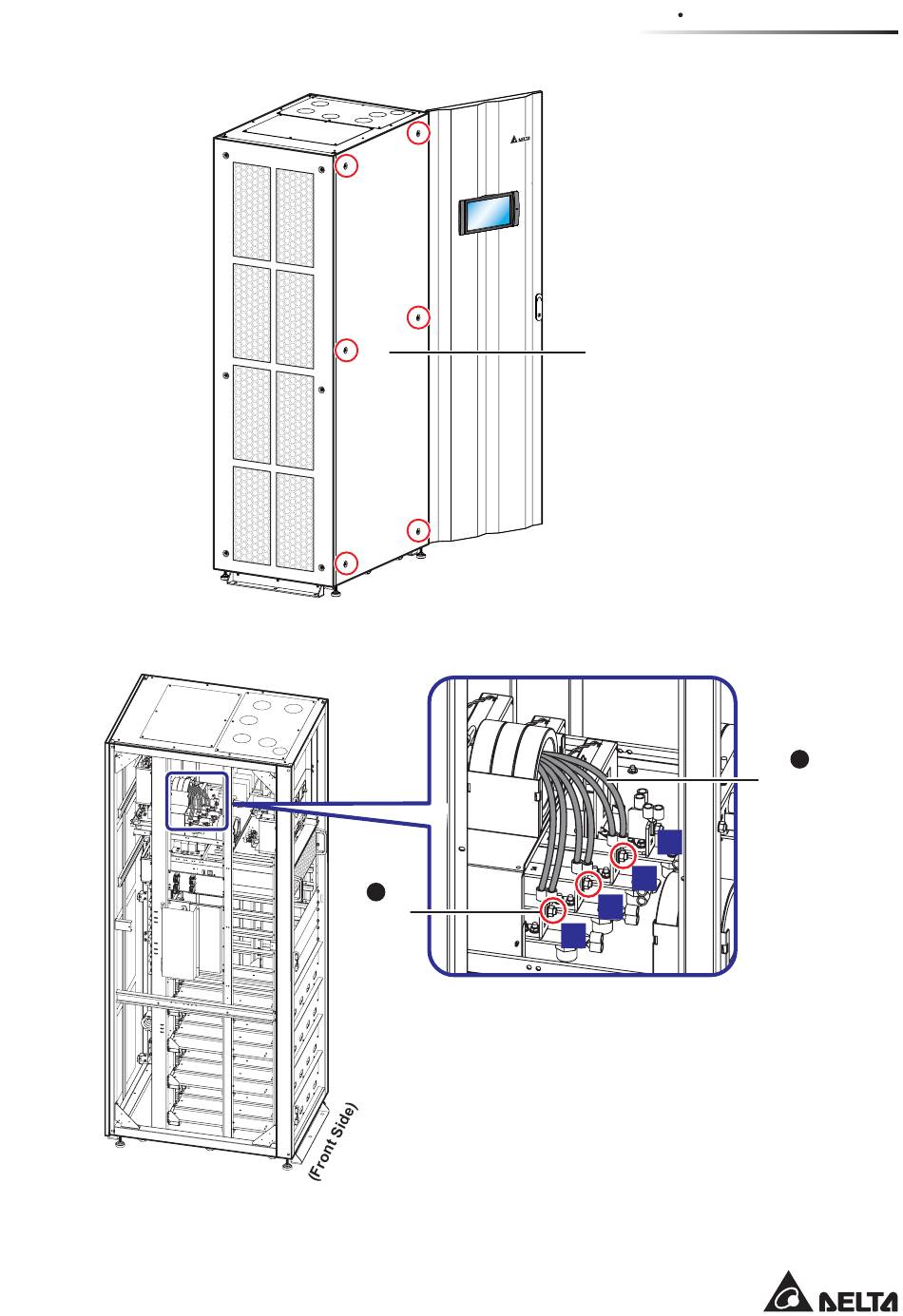

(Figure 5-4: Location of Left Side Panel and Six Screws)
(Left Side)
(Figure 5-5: Location of AC/ Bypass Input Cooper Bars)
1
Unscrew
the 3 Nuts
AC/ Bypass Input Cooper Bars
5-9
5 Installation and Wiring
Remove the Left Side Panel
(Total: 6 Screws)
N
L3
L2
L1
2
Remove the
6 Cables
(L1 x 2PCS +
L2 x 2PCS +
L3 x 2PCS)
