Use a screwdriver to remove the four screws shown in Figure 5-43.
3
Pull out the power module from the slot (two people are required) (see Figure 5-44).
When the power module cannot be pulled out any more, press the lock (see Figure
5-45) on the left side of the power module in order to continuously pull out the module
from the UPS cabinet.

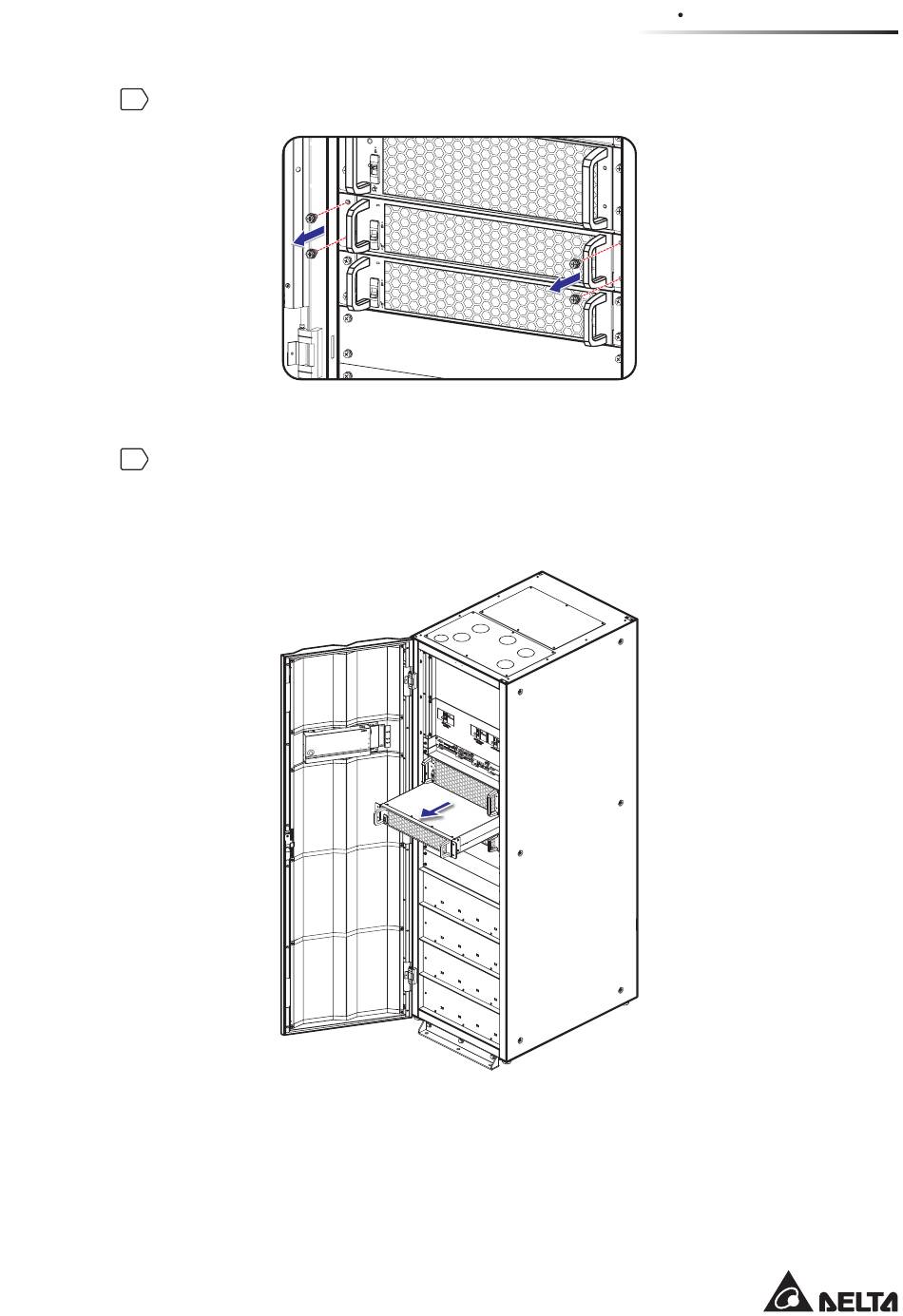

(Figure 5-43: Remove the Four Screws)
B A GND
B A
GND
RESET
MODBUS
BMS
(Figure 5-44: Remove the Power Module)
5-35
5
Installation and Wiring
