Delta Modulon DPH Series User Manual page 174

2
System Status

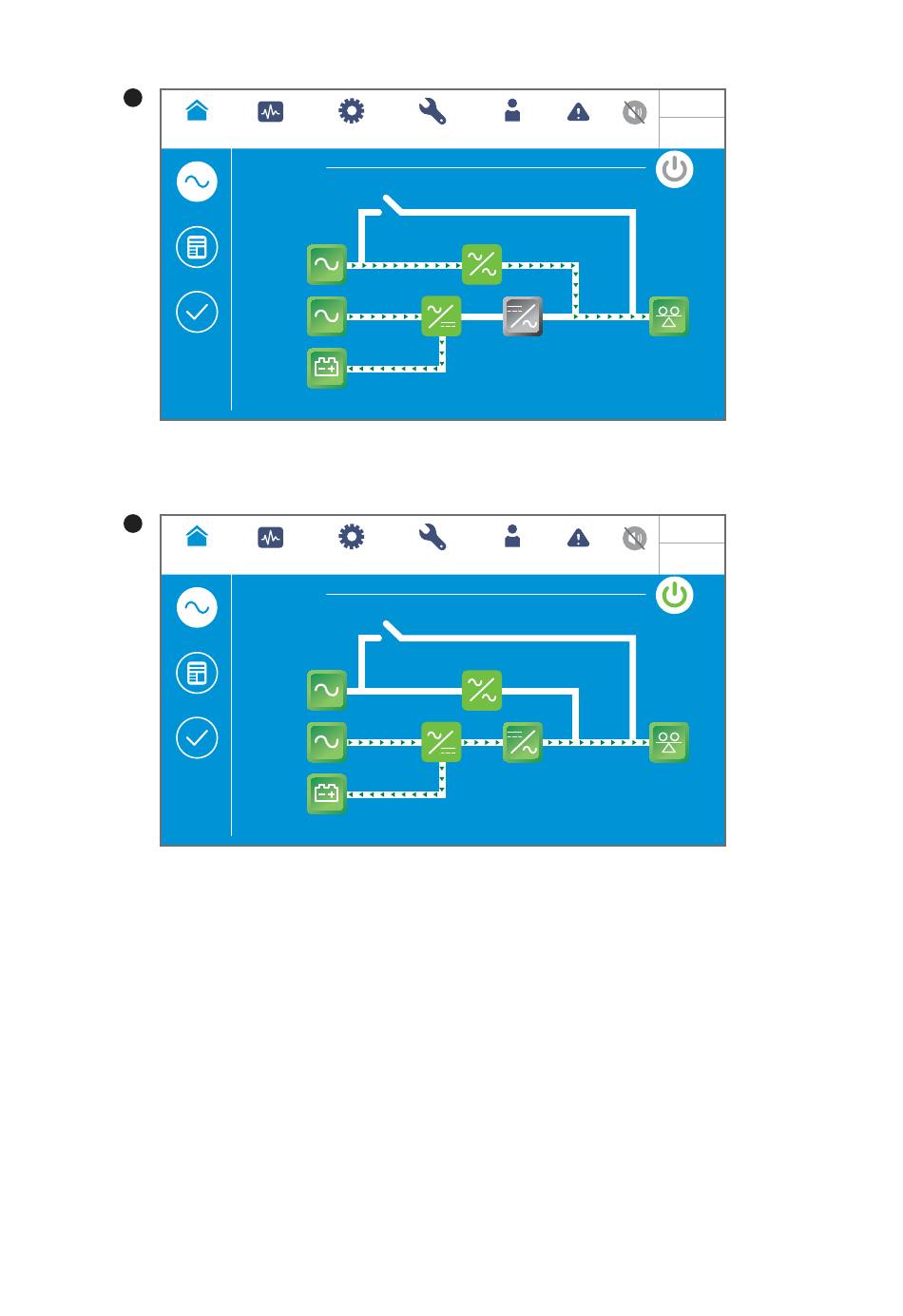

The screen above indicates that the UPS is in bypass mode. The inverter is not turned on.
3
System Status
The screen above indicates that the UPS is running in online mode and the loads are
supplied by the inverter. Please refer to 7.10.2 Mode Setting and 6.2.1 Online Mode Start-
up Procedures.
Modulon DPH Series
UPS-1.1 MEASUREMENT SETUP
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
90 %
5 mins
UPS-1.1 MEASUREMENT SETUP
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
90 %
5 mins
MAINTENANCE LOG IN EVENT LOG
Administrator
MAINTENANCE LOG IN EVENT LOG
Administrator
7-12
10:15
May 25,2018
Bypass
Load
30 %
10:15
May 25,2018
On-Line
Load
30 %
