NOTE:
1. For BMS/ BMS Setting and EMS/ EMS Setting, the functions will be
activated only after proper installation and settings of the optional
accessories have been completed. For details, refer to
Accessories
2. * To display the item(s), you have to log in as Administrator. Please refer
1
7.4 Password Entry
to
* the item will only appear on the LCD if you use the Delta lithium-ion
2
batteries with the optional multifunctional communication card (MFC)
being installed in the smart slot.
3. The LCD screen diagrams in the user manual are for reference only. The
actual display depends on the operation situation.
7.2

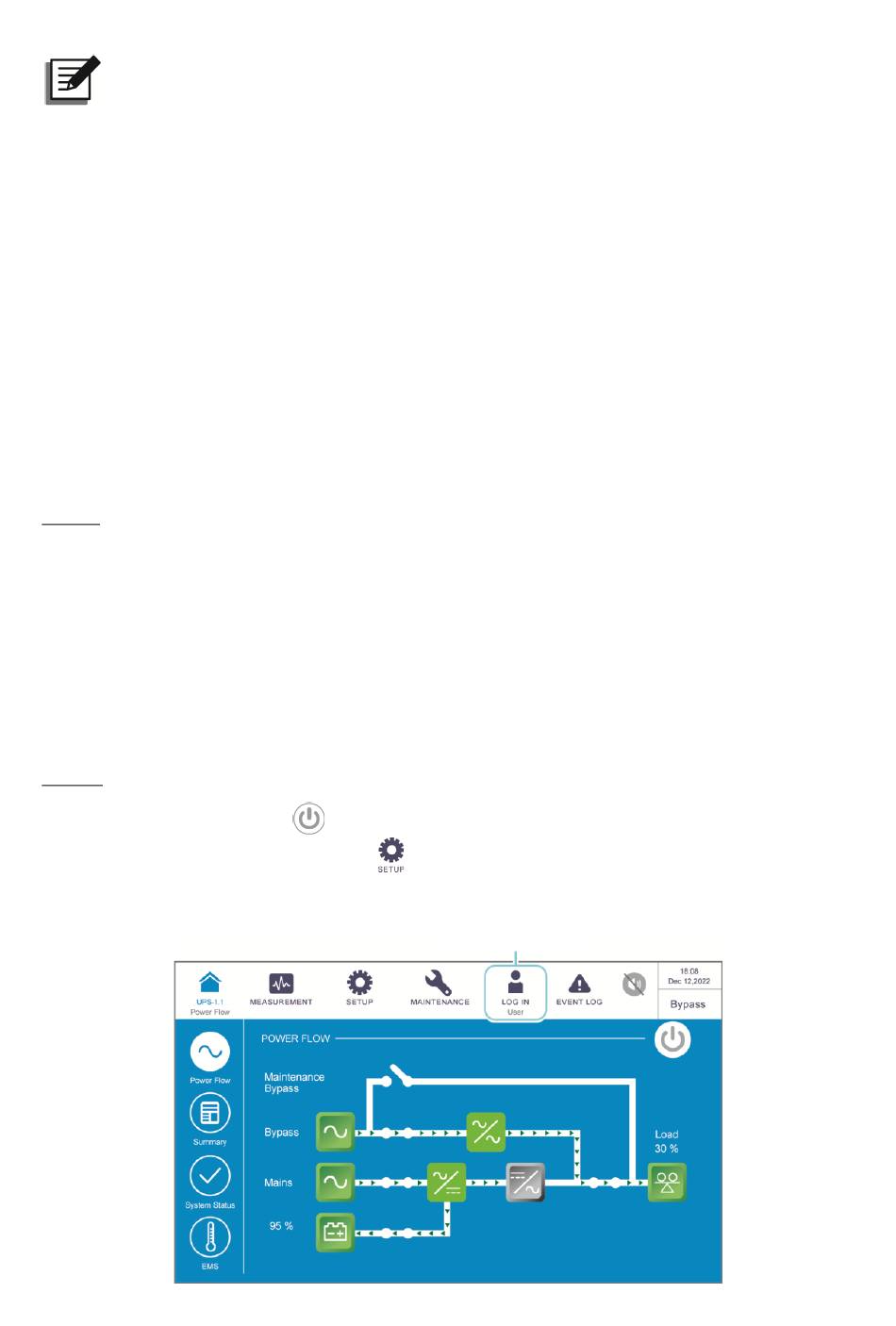

How to Turn on the LCD

Step 1
Perform one of the options (a ~ d) below; after that, the LCD will be on.
a. Turn on the Input Switch (Q1); or
b. Turn on the Bypass Switch (Q2); or
c. Turn on the Input Switch (Q1) and Bypass Switch (Q2); or
d. Turn on the external battery cabinet's breaker (Q5) and press any of the battery
start buttons (
Step 2
If the ON/ OFF Button (
Administrator first, and then go to
Access to change the setting.
Delta UPS DPH 50-200kVA
.
.
Figure 4-1
) for 1 second and release it.
) does not appear on the screen, please log in as
→ General Setting → User → On/ Off Button
User Login
8. Optional
