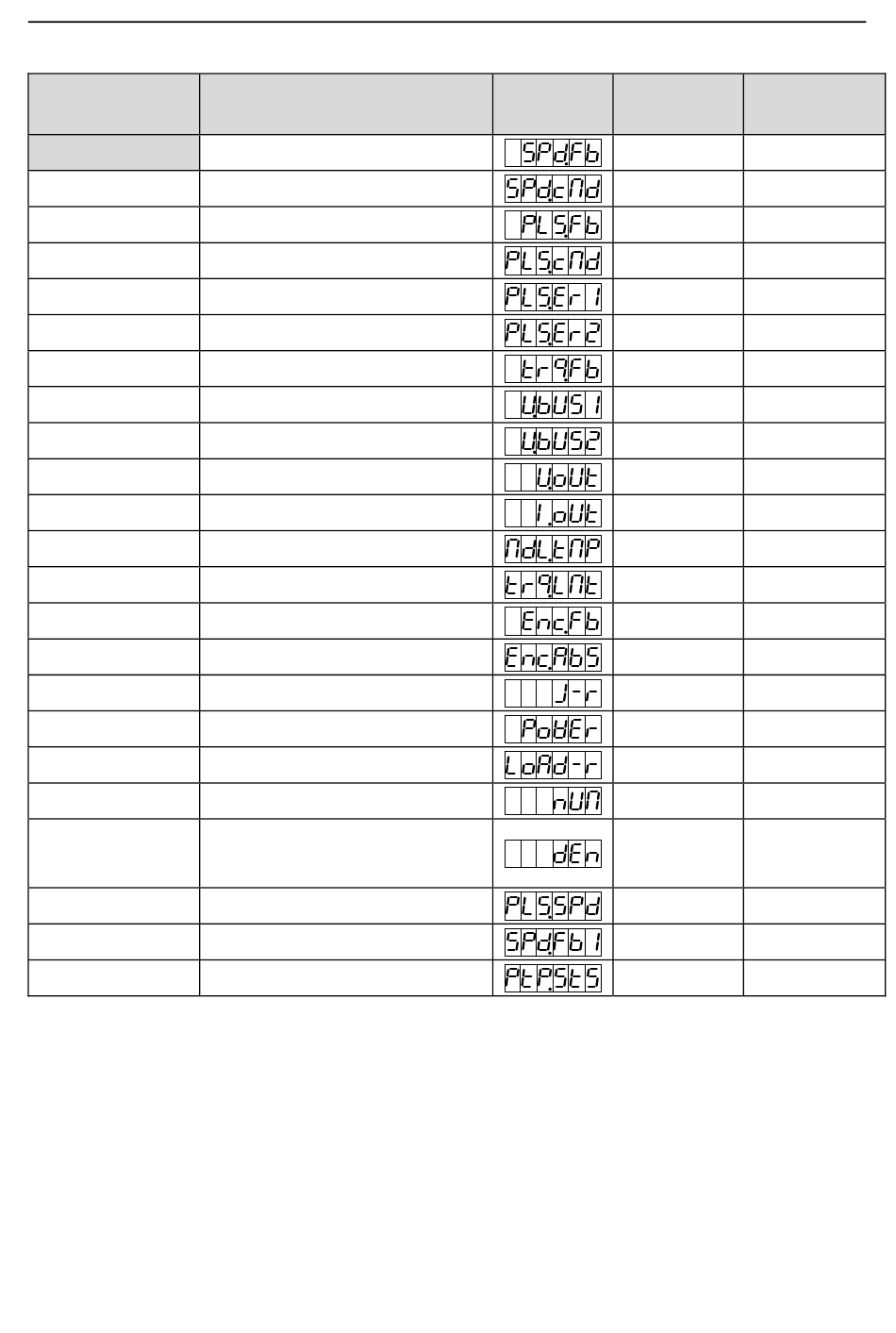

10.3 General monitoring parameters

Setting value of
P0.15
[0]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Meaning
Motor rotation speed
Speed command
Pulse feedback accumulation
Pulse command accumulation
Retention pulse
Hybrid control deviation
Current torque
Main circuit DC voltage
Voltage of control power
Output voltage
Output current
Drive temperature
Torque limit
Encoder feedback value
Rotor position relative to Z pulse
Load inertia ratio
Output power
Motor load rate
Molecule of actual electronic gear
Denominator of actual electronic
gear
Pulse speed command
Instant speed
PTP state
Sign
‐271‐
Appendix
Corresponding
Unit
parameter
r/min R0.00
r/min R0.01
reference unit R0.02
reference unit R0.03
reference unit R0.04
reference unit R0.05
% R0.06
V R0.07
V R0.08
Vrms R0.09
Arms R0.10
R0.11
℃
% R0.12
pulse R0.13
pulse R0.14
% R0.15
% R0.16
% R0.17
- R0.18
- R0.19
r/min R0.20
r/min R0.21
- R0.22
