3. Send the modified parameters to the drive by two methods
a. Press carriage return at the edition window
b. Click the sending button [ ]
8.5.8 Help file
The software has the help file of chm format, including the operation instruction and detailed
parameter information for the corresponding help.
The main window has the access to general documentation and the help button of each window can
lead the user to relative chapter.
8.5.9 Oscilloscope
The oscilloscope function can be started by the oscilloscope button or the route of menu bar → tool →
oscilloscope.
User interface

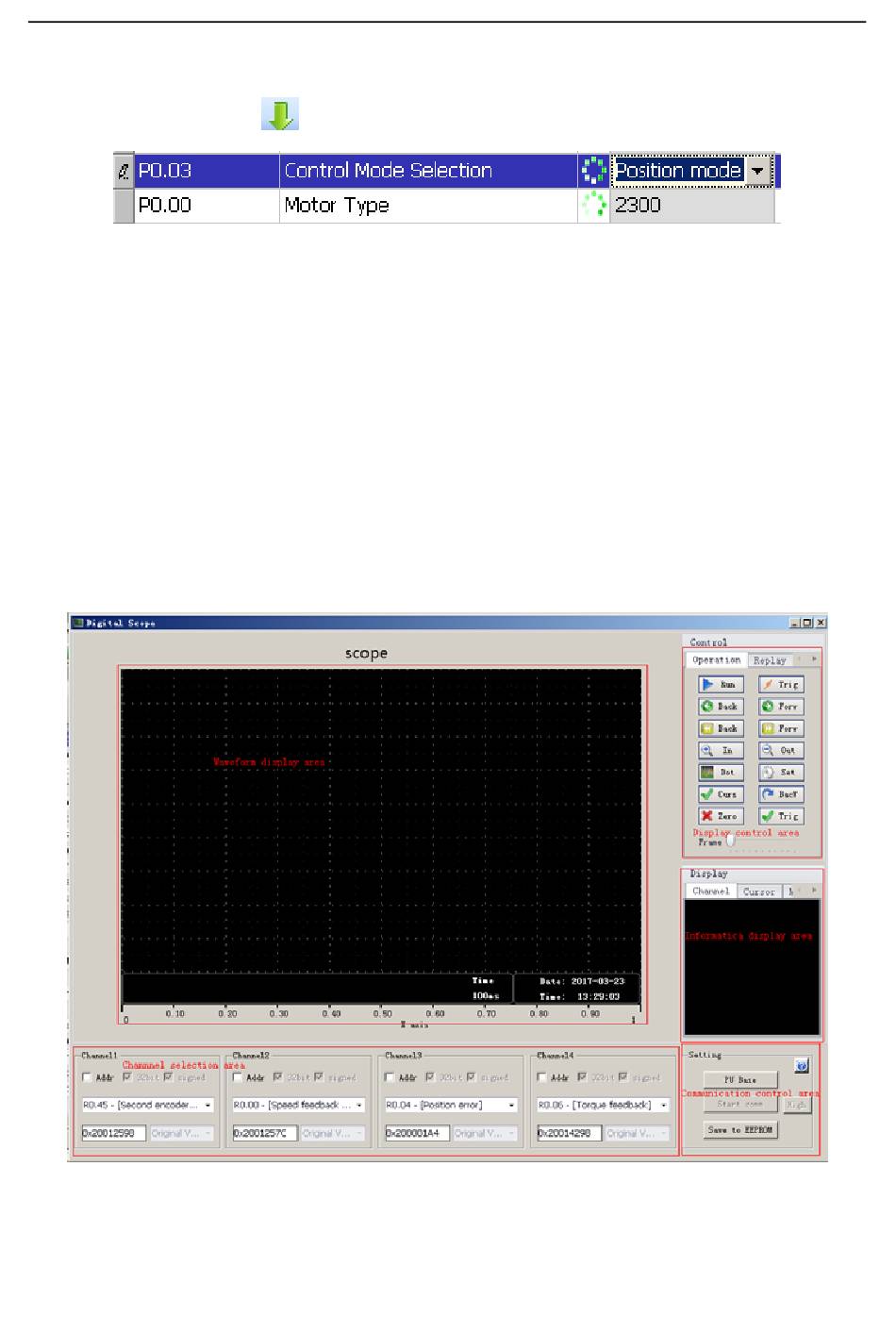

There are five areas:
1. Waveform display area: Draw waveform and auxiliary display elements, such as the cursor, gain,
