SV-DA200 series AC servo drives

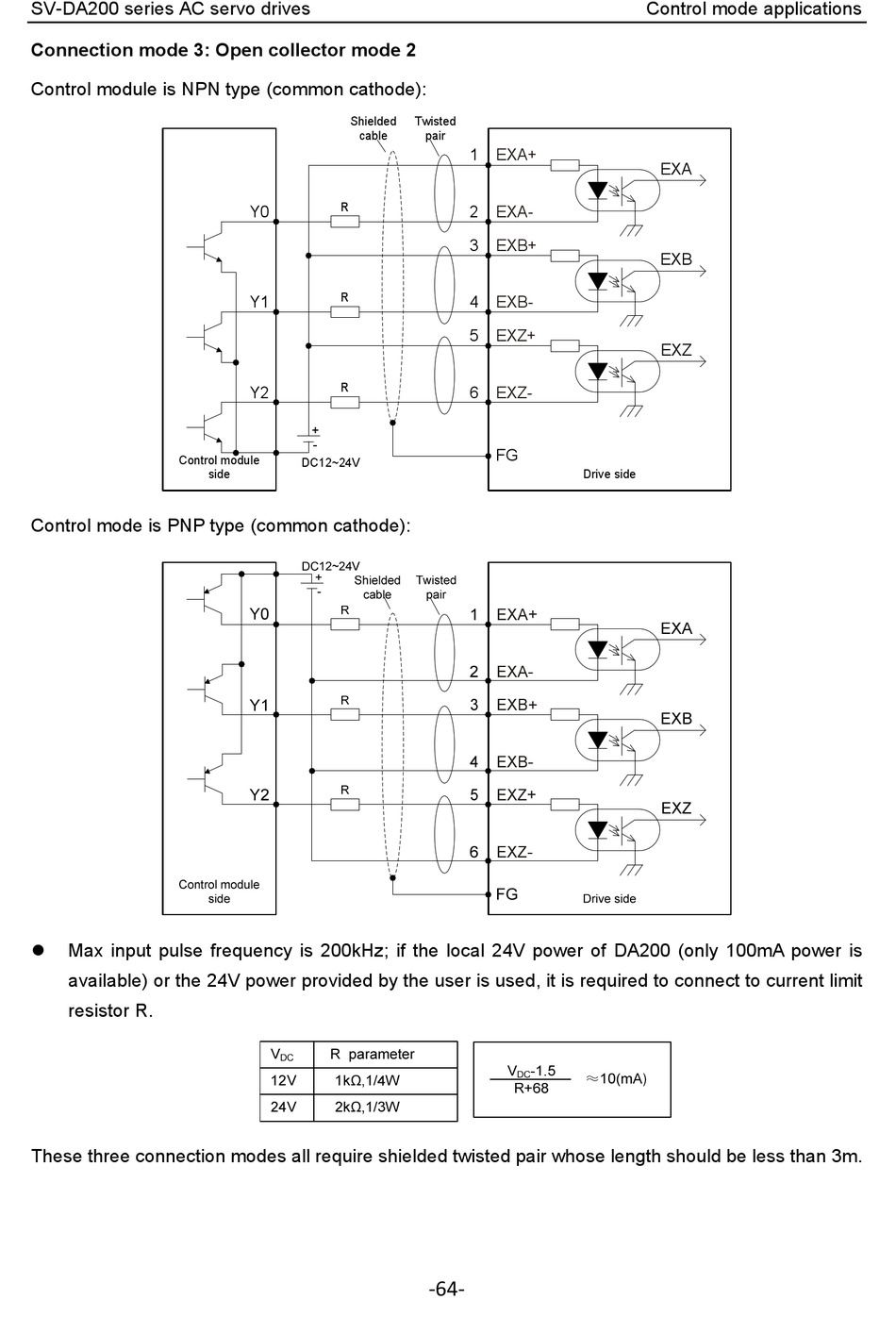

Connection mode 3: Open collector mode 2
Control module is NPN type (common cathode):
Control module
Control mode is PNP type (common cathode):
 Max input pulse frequency is 200kHz; if the local 24V power of DA200 (only 100mA power is
available) or the 24V power provided by the user is used, it is required to connect to current limit
resistor R.
These three connection modes all require shielded twisted pair whose length should be less than 3m.
Shielded
cable
R
Y0
R
Y1
R
Y2
+
-
DC12~24V
side
Twisted
pair
1 EXA+
2 EXA-
3 EXB+
4 EXB-
5 EXZ+
6 EXZ-
FG
Drive side
‐64‐
Control mode applications
EXA
EXB
EXZ
